Park Brake Cable (Handle-to-Equalizer)

PARK BRAKE CABLE (HANDLE-TO-EQUALIZER)

REMOVAL





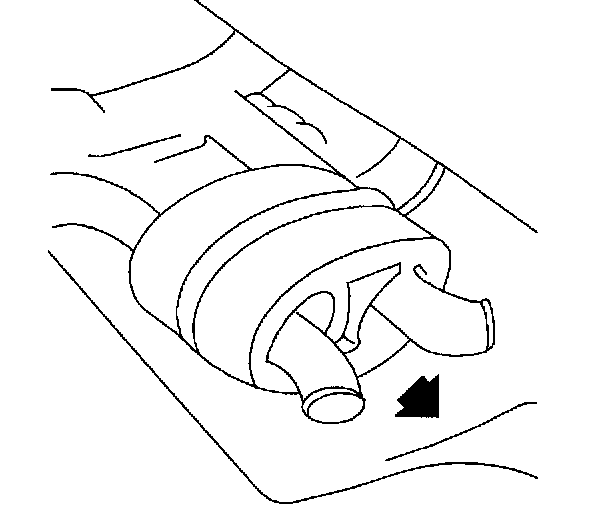

1. Disengage console park brake boot by squeezing boot on sides while pulling upward.

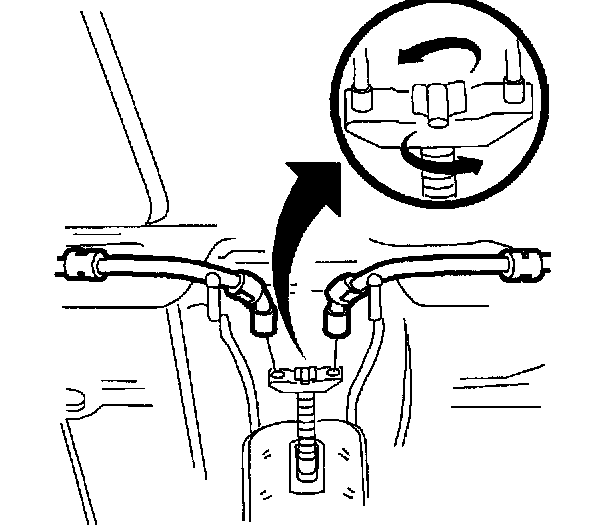

2. Loosen park brake adjuster nut to provide adequate slack in park brake cable.

CAUTION: MAKE SURE VEHICLE IS PROPERLY SUPPORTED AND SQUARELY POSITIONED ON THE HOIST. TO HELP AVOID PERSONAL INJURY WHEN A VEHICLE IS ON A HOIST, PROVIDE ADDITIONAL SUPPORT FOR THE VEHICLE ON THE OPPOSITE END FROM WHICH COMPONENTS ARE BEING REMOVED.

3. Raise vehicle on hoist.





4. Disconnect exhaust resonator from exhaust manifold pipe.
5. Remove exhaust pipe to body isolators.





6. Lower exhaust resonator pipe and muffler assembly from vehicle.





7. Remove exhaust heat shield.





8. Remove front park brake cable from equalizer.
9. Remove front park brake cable from vehicle.

INSTALLATION

1. Install front park brake cable into equalizer.





2. Lower vehicle and adjust nut to take up slack in cable.

CAUTION: MAKE SURE VEHICLE IS PROPERLY SUPPORTED AND SQUARELY POSITIONED ON THE HOIST. TO HELP AVOID PERSONAL INJURY WHEN A VEHICLE IS ON A HOIST, PROVIDE ADDITIONAL SUPPORT FOR THE VEHICLE ON THE OPPOSITE END FROM WHICH COMPONENTS ARE BEING REMOVED.

3. Raise vehicle on hoist.





4. Install exhaust heat shield.
Torque: Exhaust Heat Shield-to-Body Fasteners: 4 Nm (35 inch lbs.)





5. Install exhaust onto vehicle and tighten resonator to exhaust manifold pipe fasteners.
Torque: Resonator Pipe-to-Exhaust Manifold Pipe: 20 Nm (15 ft. lbs.)
6. Lower vehicle from hoist.
7. Adjust park brake cable.
