Console Armrest Replacement - Front Floor

REMOVAL

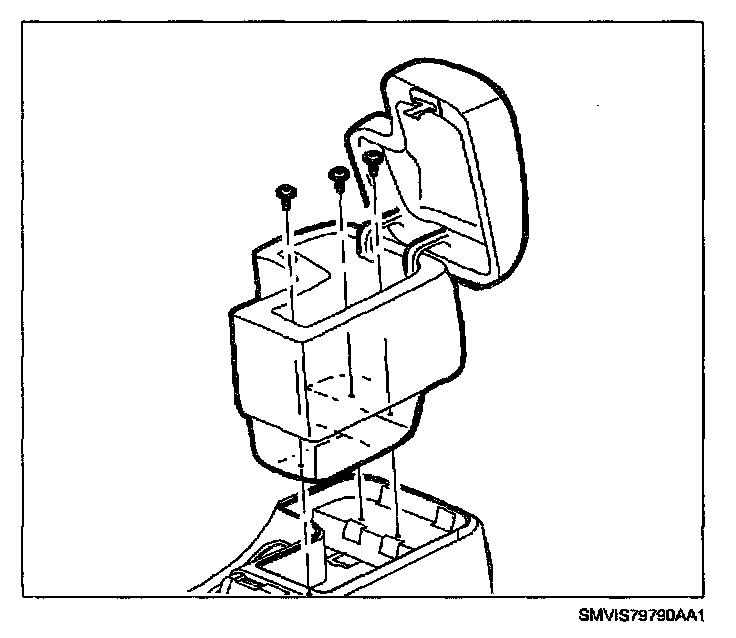

1. Open arm rest lid to expose arm rest fasteners at bottom of arm rest.
2. Remove fasteners and remove arm rest.

INSTALLATION




1. Position arm rest into console.
2. Install fasteners to secure arm rest.

Torque:
Console Arm Rest Fasteners: 2.5 N.m (22 in-lbs)
