Rear Compartment Lid Latch Replacement

Rear Compartment Lid Latch Replacement

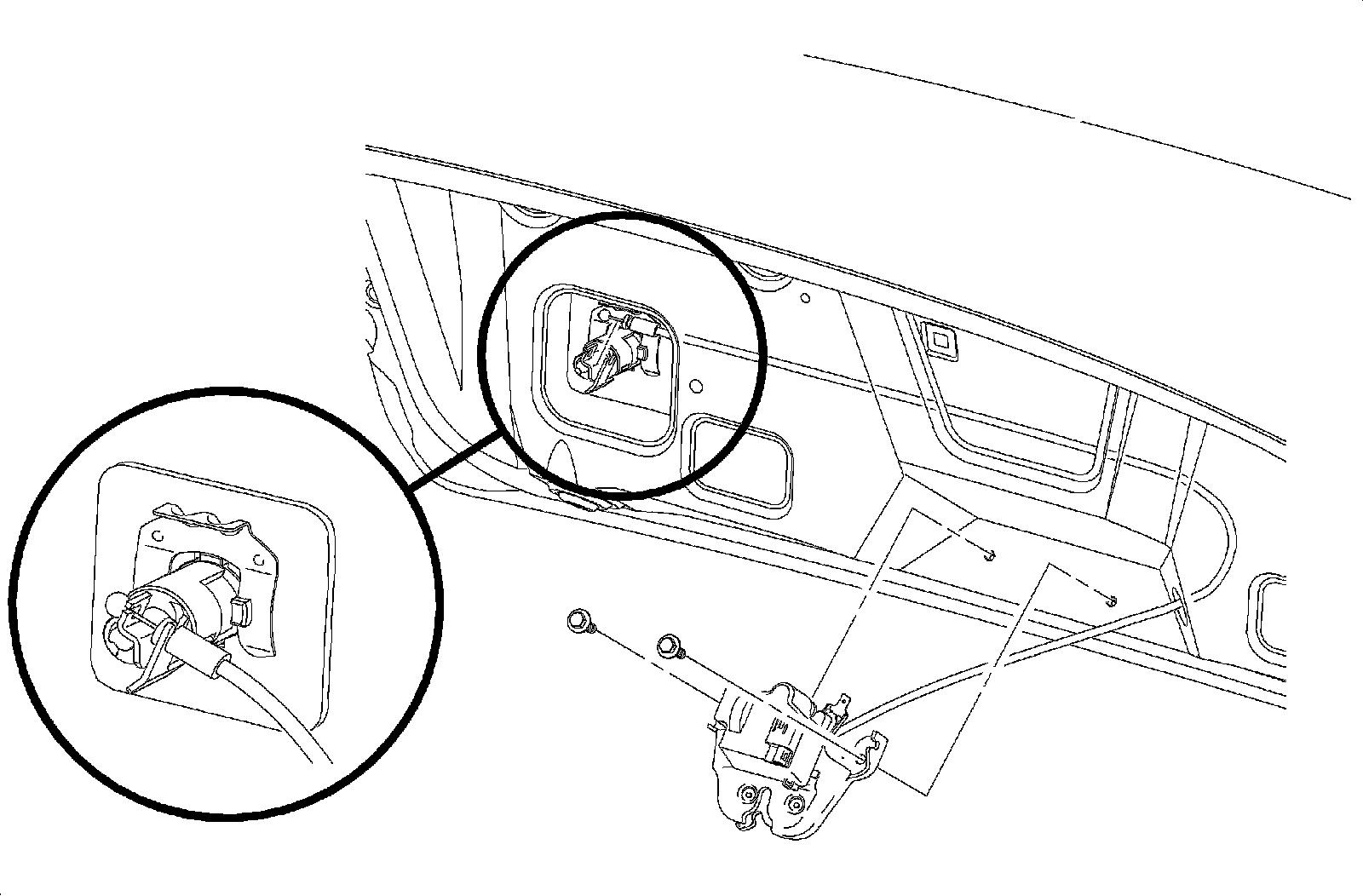

Removal Procedure




1. Open rear compartment lid.

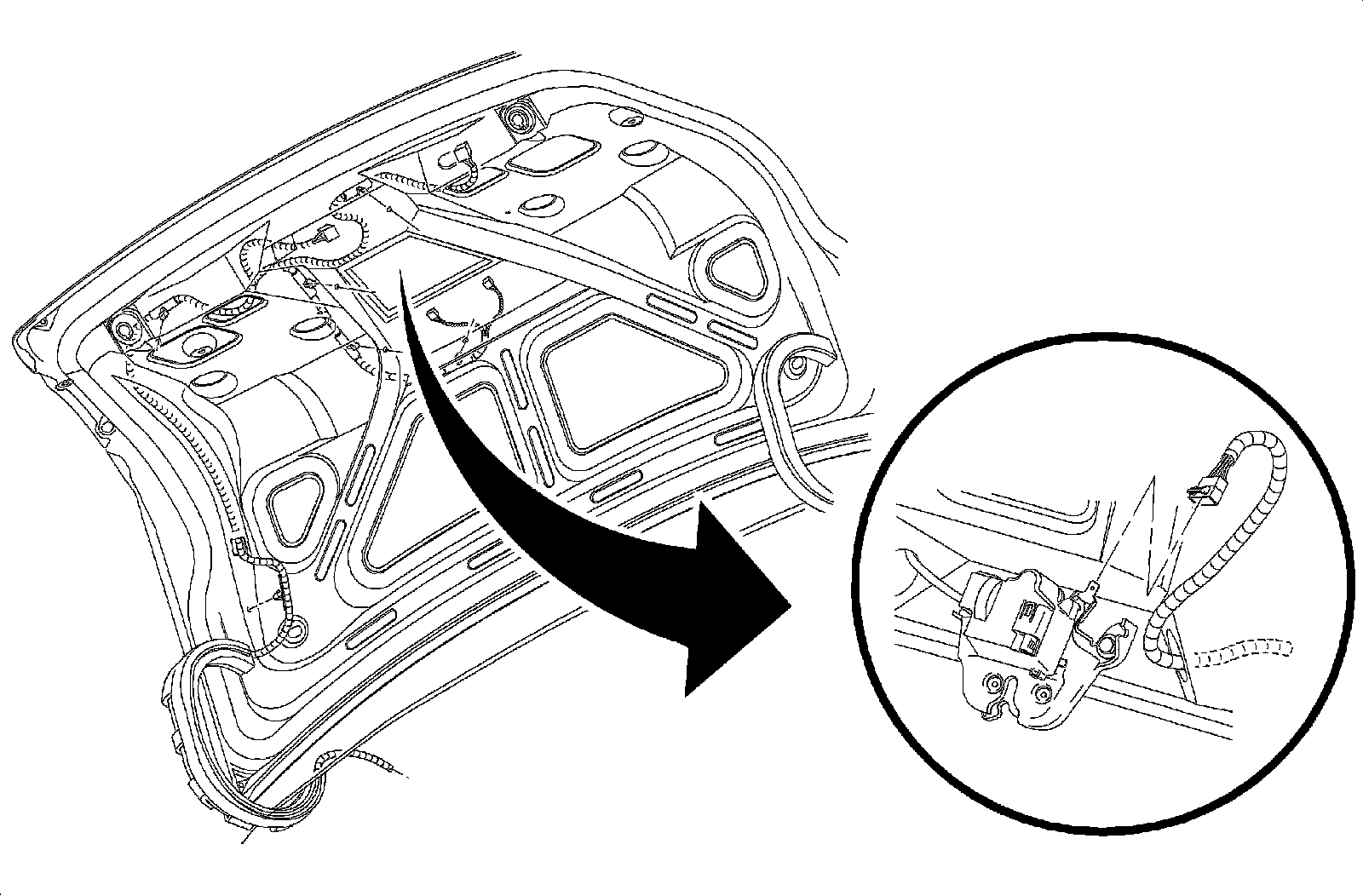

2. Disconnect electrical connector from latch assembly.
3. Remove screws from latch assembly.
4. Unhook lock cylinder actuator cable from latch assembly.
5. Remove latch assembly.

Installation Procedure

1. Install latch assembly.
2. Hook lock cylinder actuator cable to latch assembly.
3. Install screws to latch assembly.

Tighten decklid latch-to-decklid fasteners to 10 Nm (89 lb in).




4. Connect electrical connector to latch assembly.
5. Close rear compartment lid.
