Home >> Saturn >> 2001 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> - Diagnostic Charts - Symptoms >> Chart 3 - Only Left Front Or Only Right Front WDO Inoperable

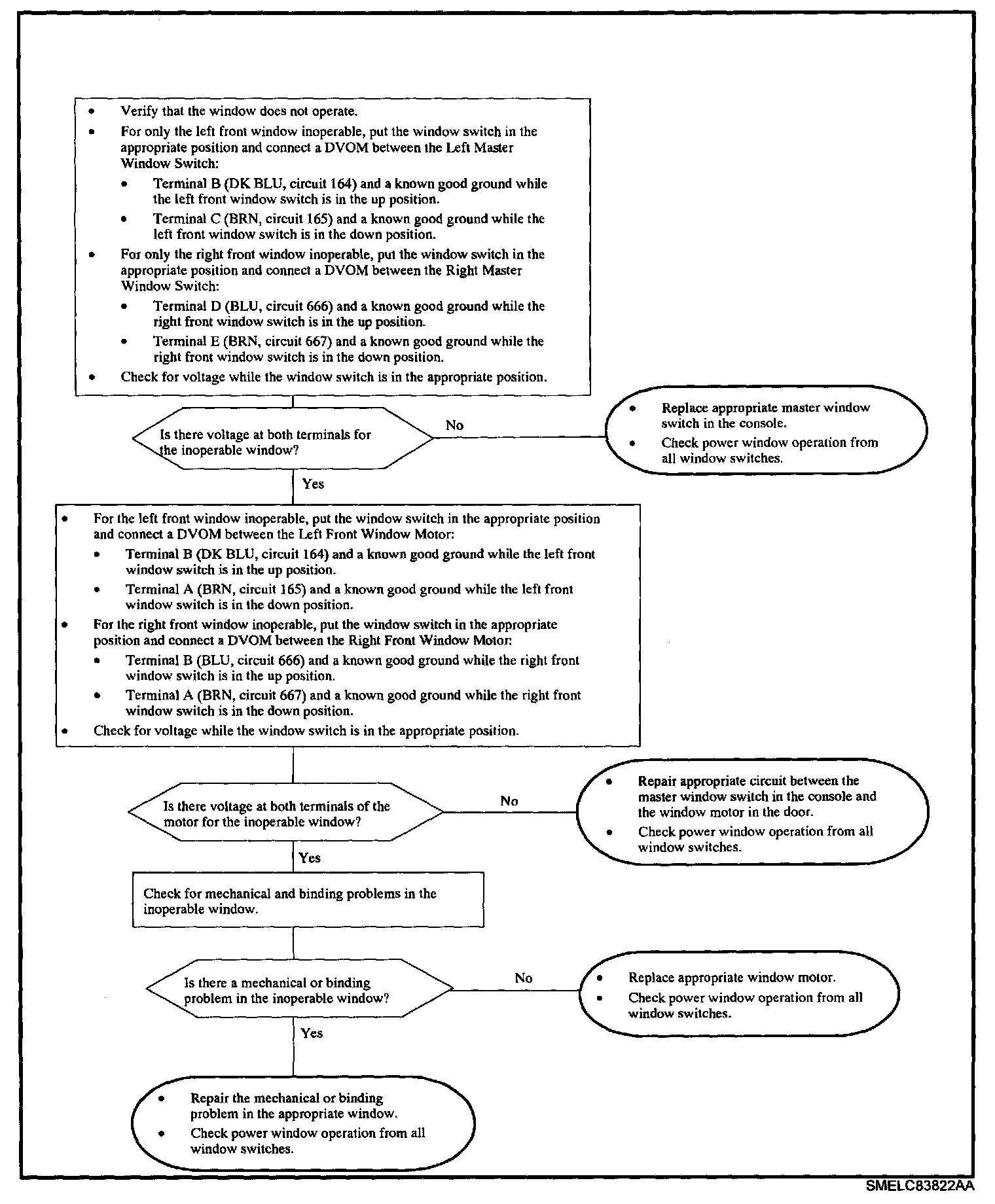

Chart 3 - Only Left Front Or Only Right Front WDO Inoperable

Diagnostic Chart:
