Home >> Saturn >> 2001 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Component Tests and General Diagnostics >> System Check - Audio >> By - Passing Advanced Audio System

By - Passing Advanced Audio System

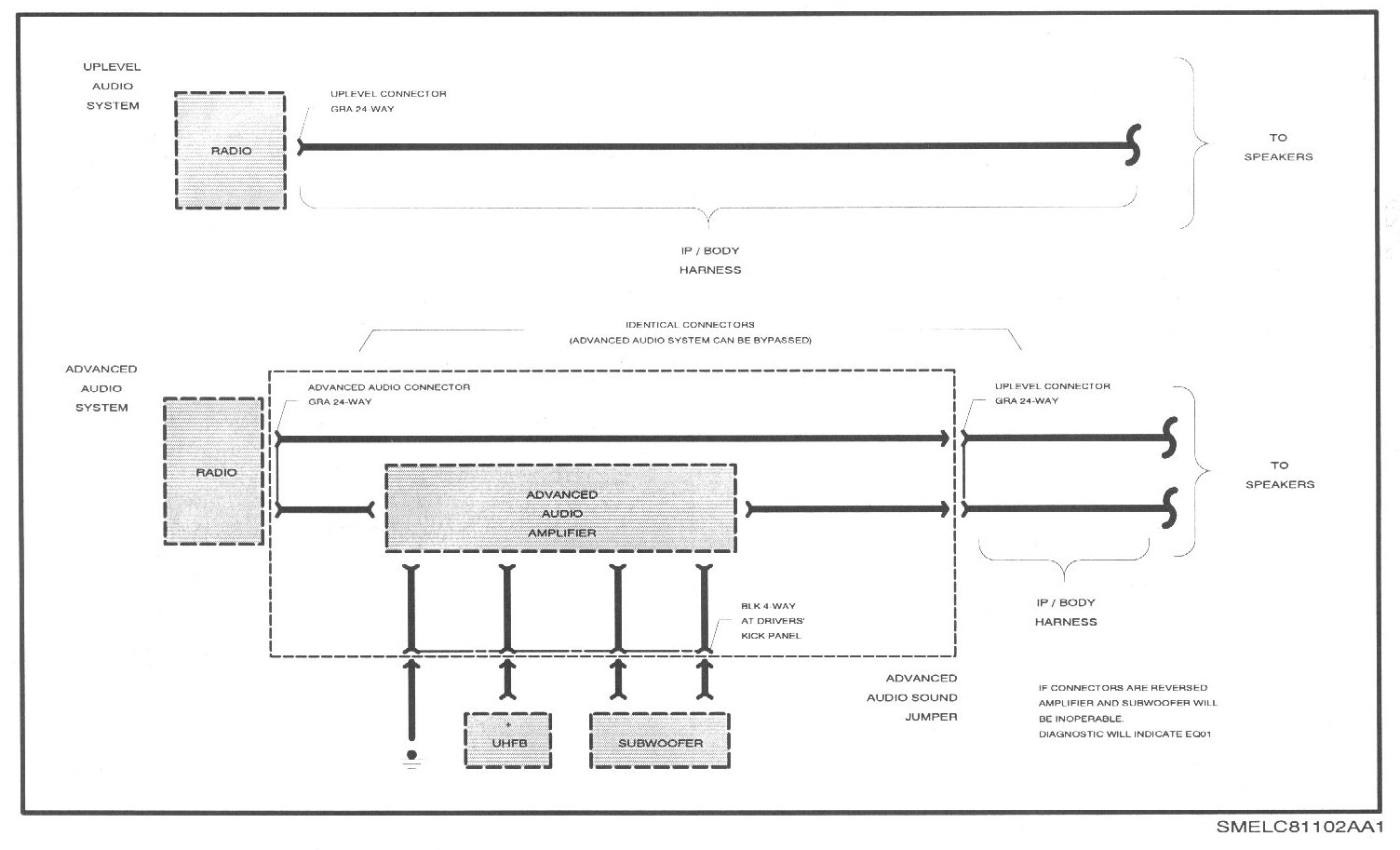

Schematic:
