Subwoofer

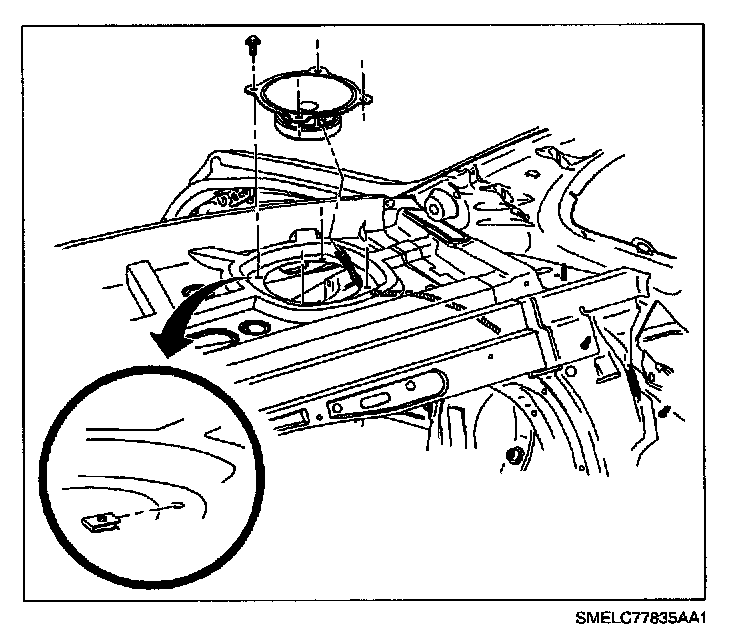

REMOVAL




1. Remove rear shelf panel.
2. Remove subwoofer fasteners and pull subwoofer away from rear shelf.
3. Disconnect subwoofer wire harness from subwoofer.
4. Remove subwoofer from vehicle.

INSTALLATION




1. Connect subwoofer wire harness to subwoofer.
2. Install subwoofer.
3. Position subwoofer in rear shelf and install fasteners.

Torque:
Subwoofer Speaker-to-Rear Shelf Attaching Fasteners - Sedan: 2.5 N.m (22 in-lbs)

4. Install rear shelf panel assembly.
