Chart 9 - No Horn Activation Or DRL Lamp Flash When IGN Is Turned On W/Security SYS Armed
Chart 9 - No Horn Activation Or DRL Lamp Flash When IGN Is Turned On W/Security SYS Armed
NO HORN ACTIVATION OR DRL LAMP FLASH WHEN IGNITION IS TURNED ON WITH SECURITY SYSTEM ARMED

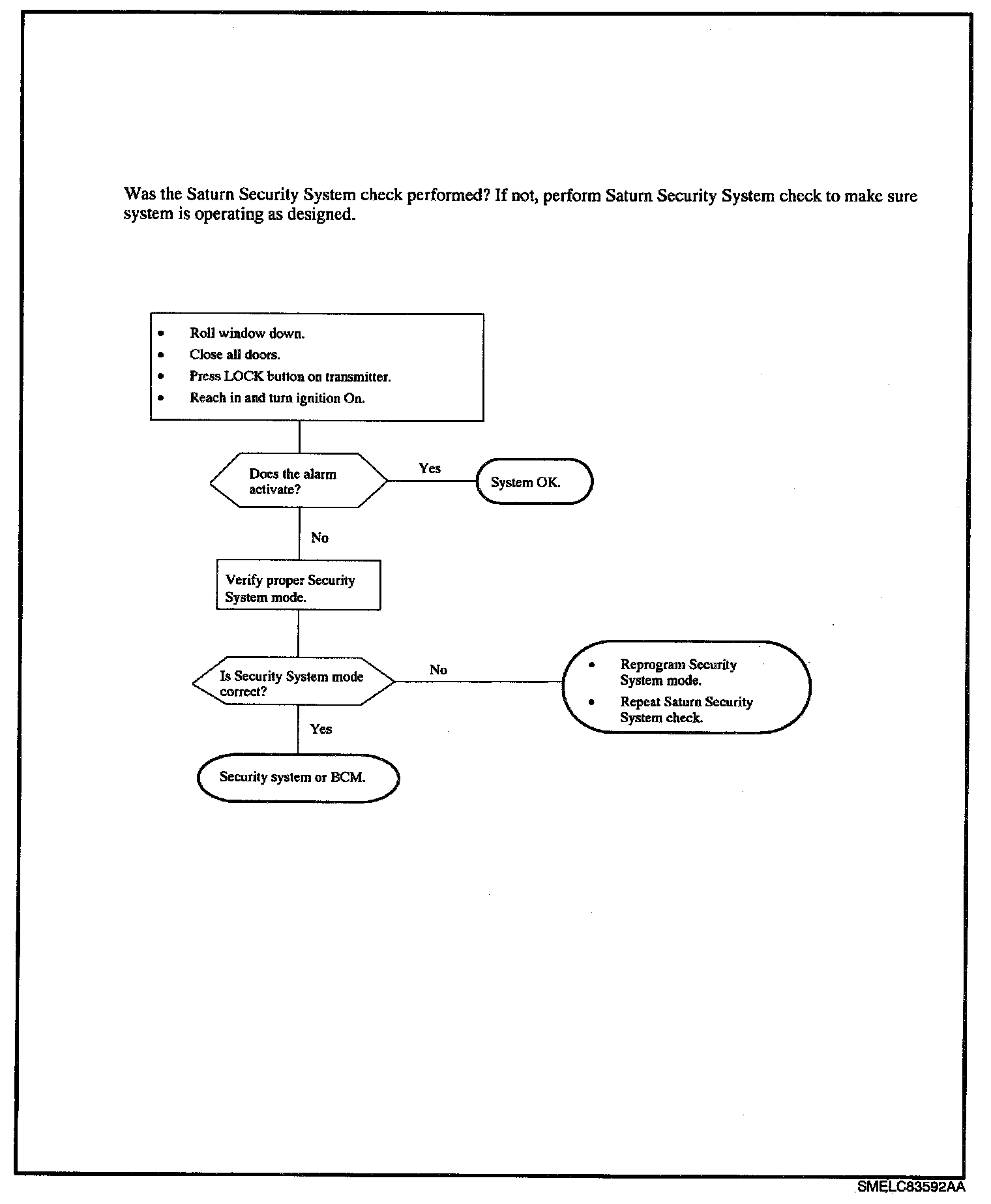

Diagnostic Chart:
