SC2 L4-1.9L DOHC VIN 7
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnostic Charts - Wiper/Washer - Rear
>>

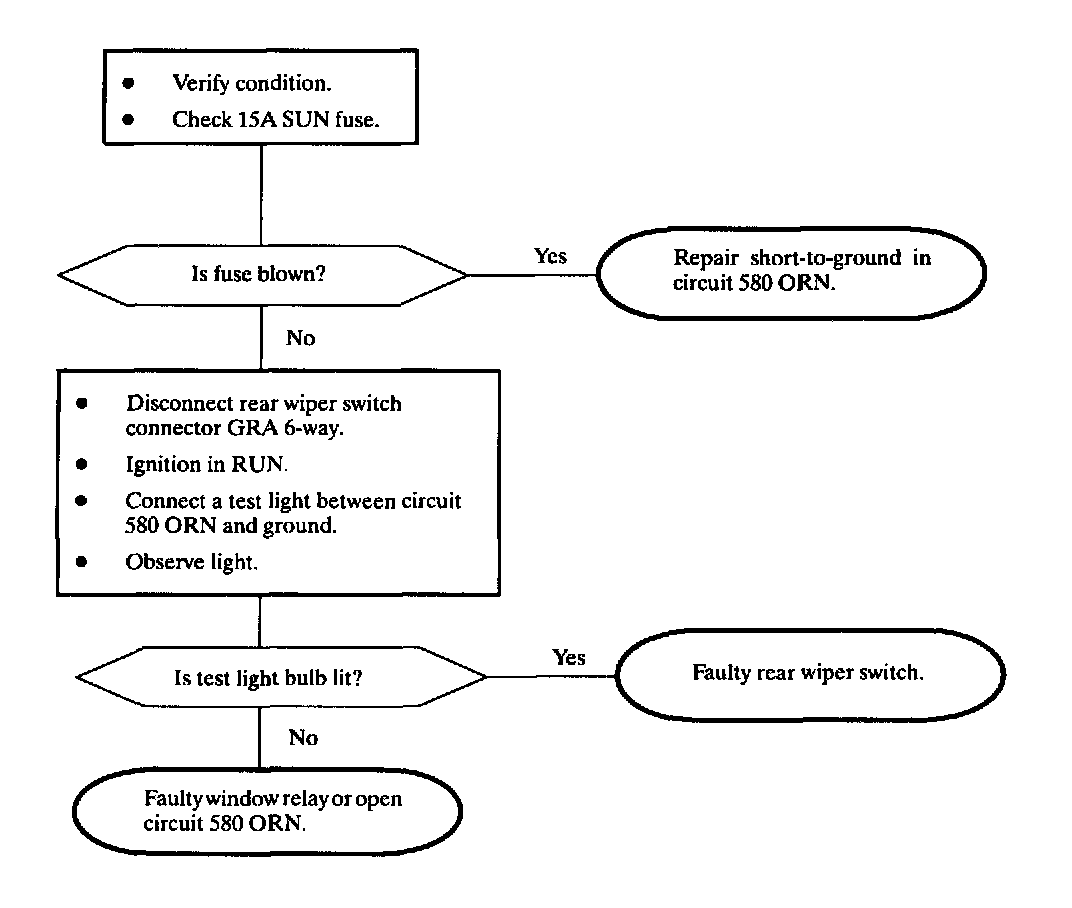

Chart 6 Rear Wiper and Washer Do Not Work
Chart 6 Rear Wiper and Washer Do Not Work
Diagnostic Chart 6:
