Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Charts - Wiper/Washer - Front >> Chart 4 Front Washer Inoperative

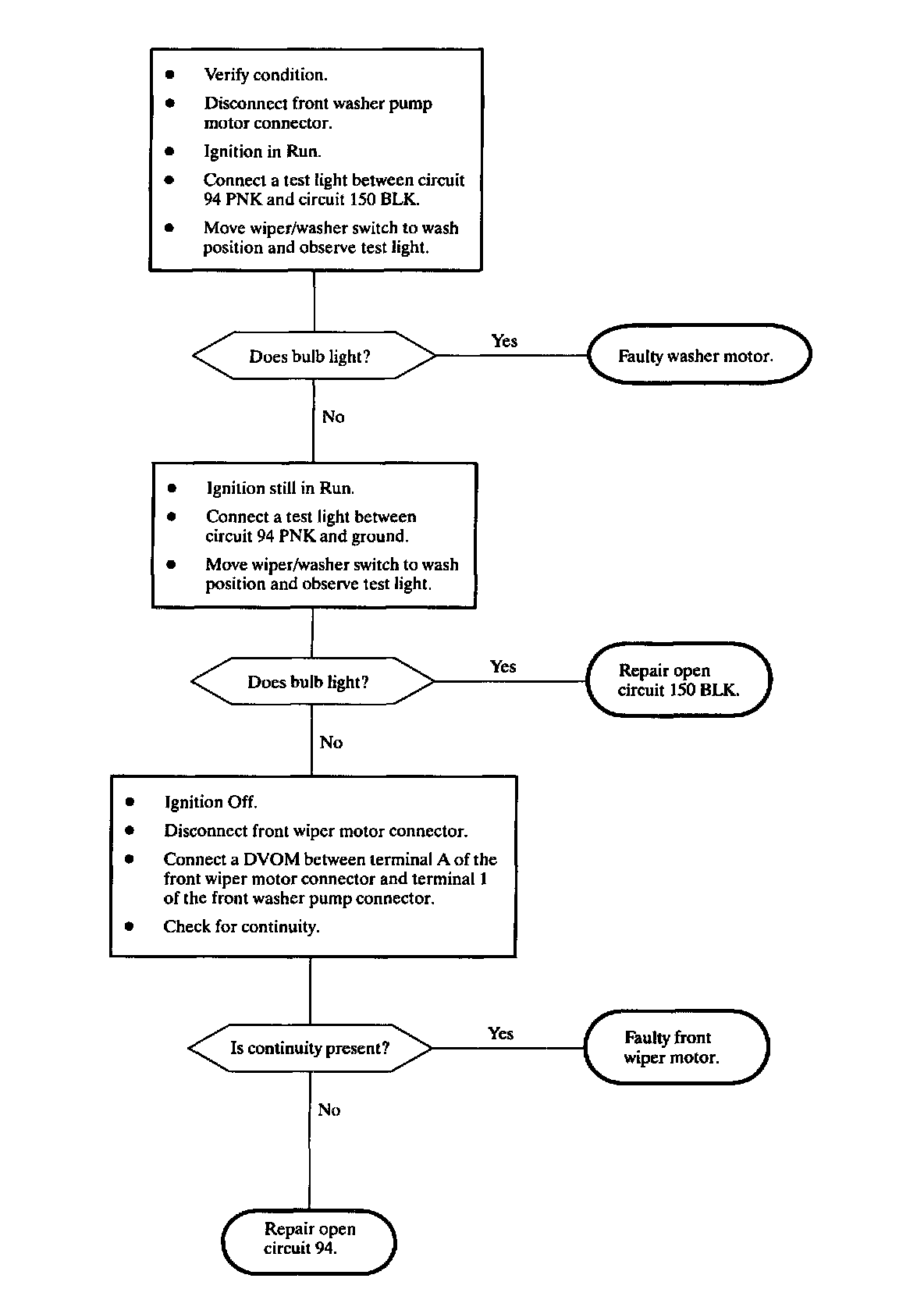

Chart 4 Front Washer Inoperative

Diagnostic Chart 4:
