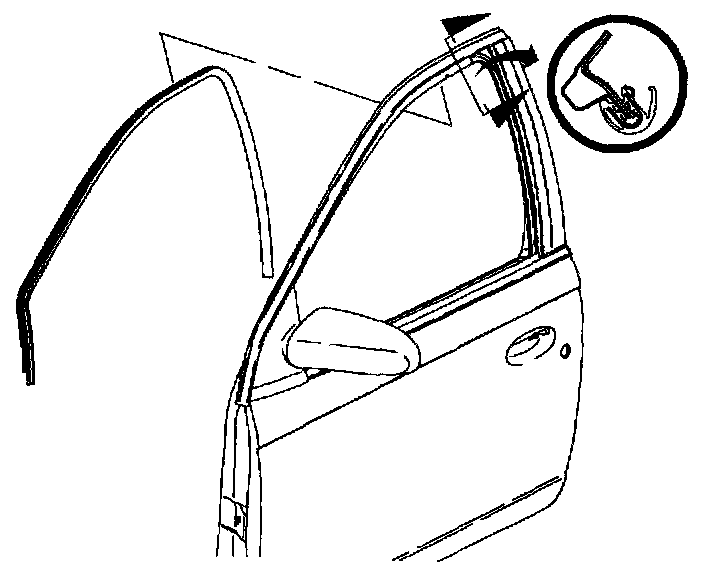

Front Door Window Glass Weatherstrip: Service and Repair

REMOVAL
1. Lower door window.
2. Remove inner sealing strip (belt seal).
3. Lift one end of secondary weatherstrip.
4. Carefully pull secondary weatherstrip from door frame.

INSTALLATION
1. Starting at mirror patch, install the front weatherstrip locating notch and work weatherstrip toward rear upper corner.
2. Install rear weatherstrip locating notch at the belt line.
3. Install inner sealing strip (belt seal).
