Scan Tool Parameter Chart

The following transaxle data definitions are intended to assist in understanding the data displayed by a Scan tool when it is communicating with the PCM. A thorough understanding of this data will not only aid in diagnosing transaxle related problems, but will also help eliminate unnecessary repairs.
Parameters are in alphabetical order.
Table #0: Trans Data Table Table
Table #1: Adaptive Table
Table #2: Trans Output Driver Status







Part 1 of 4

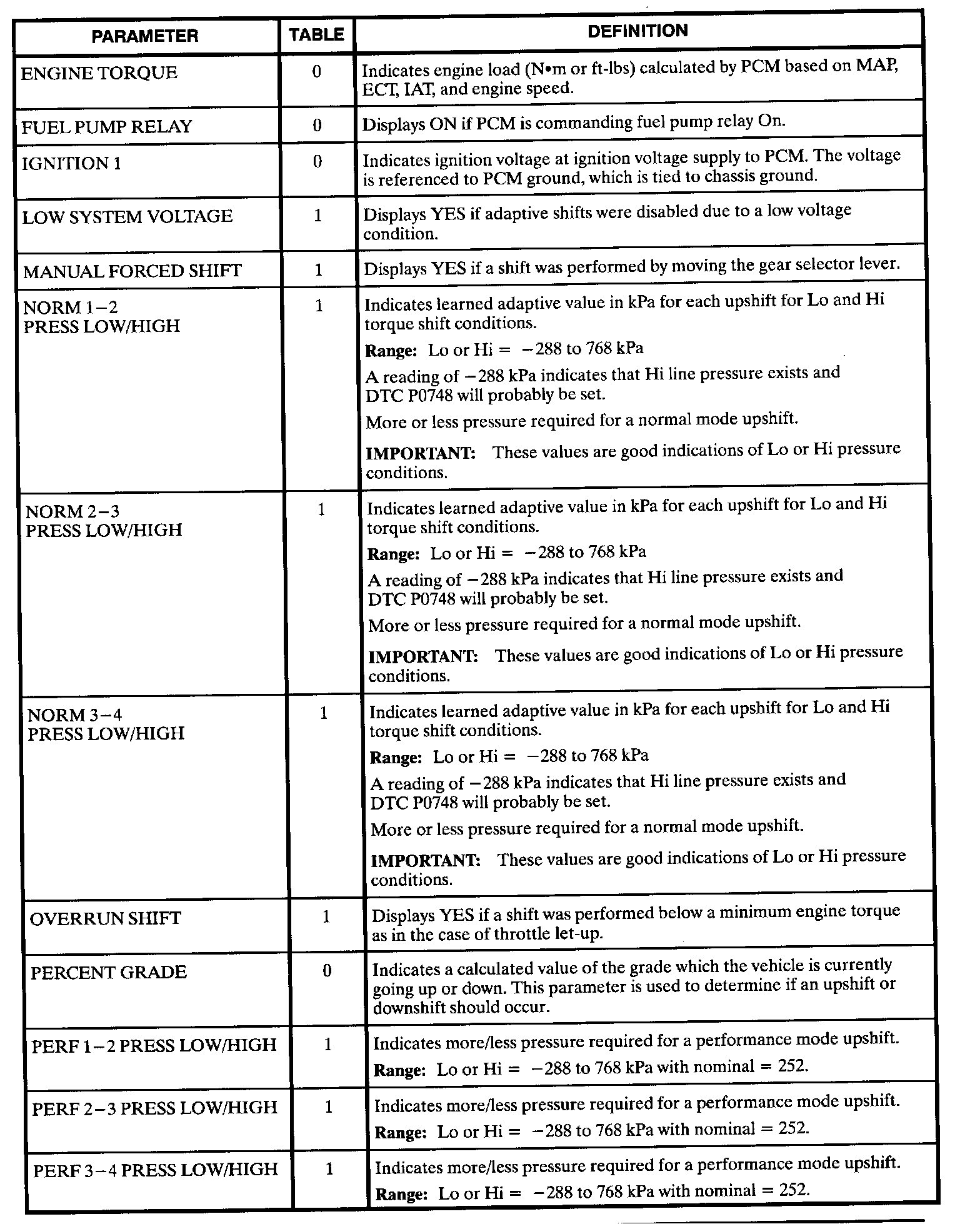

Part 2 of 4

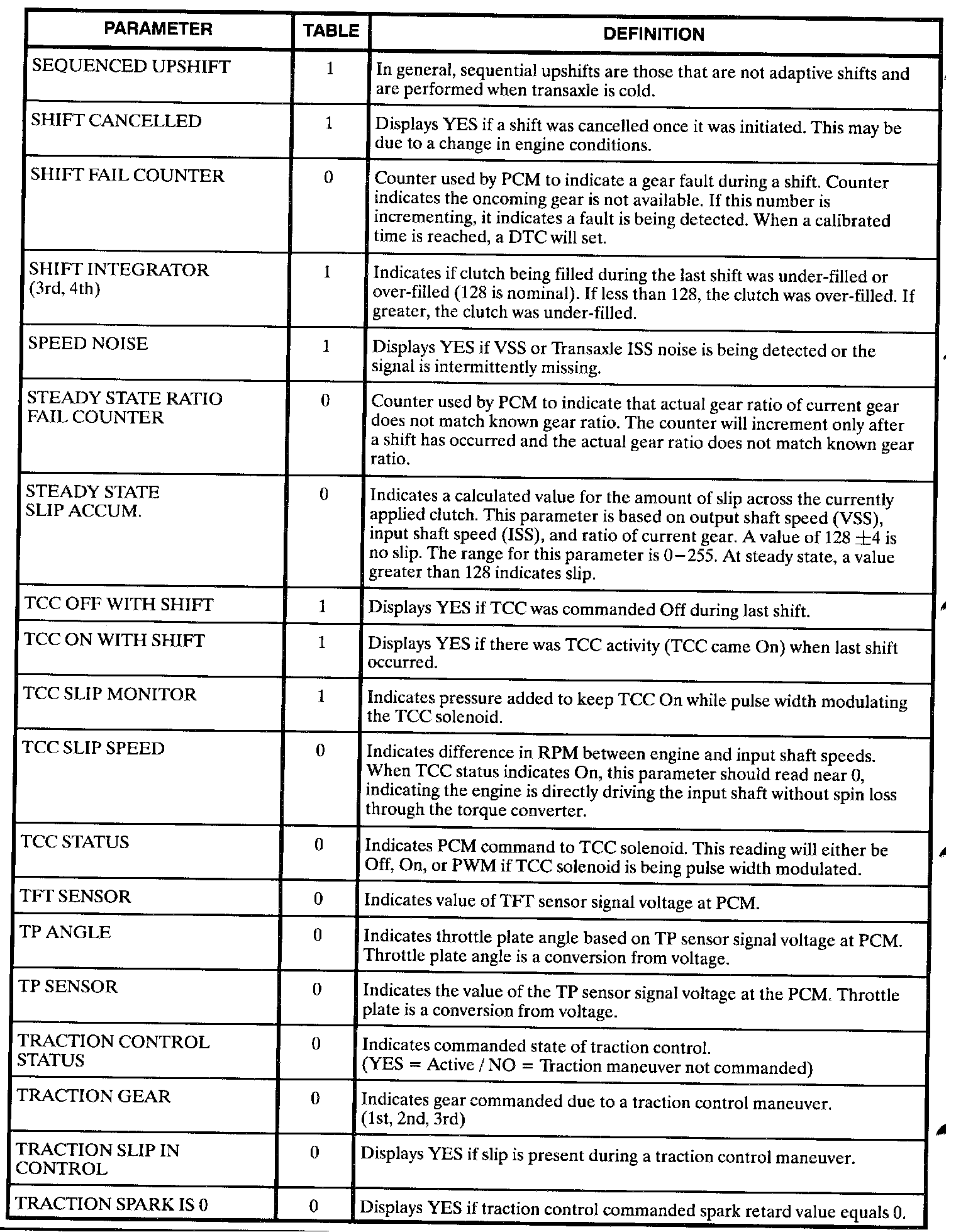

Part 3 of 3

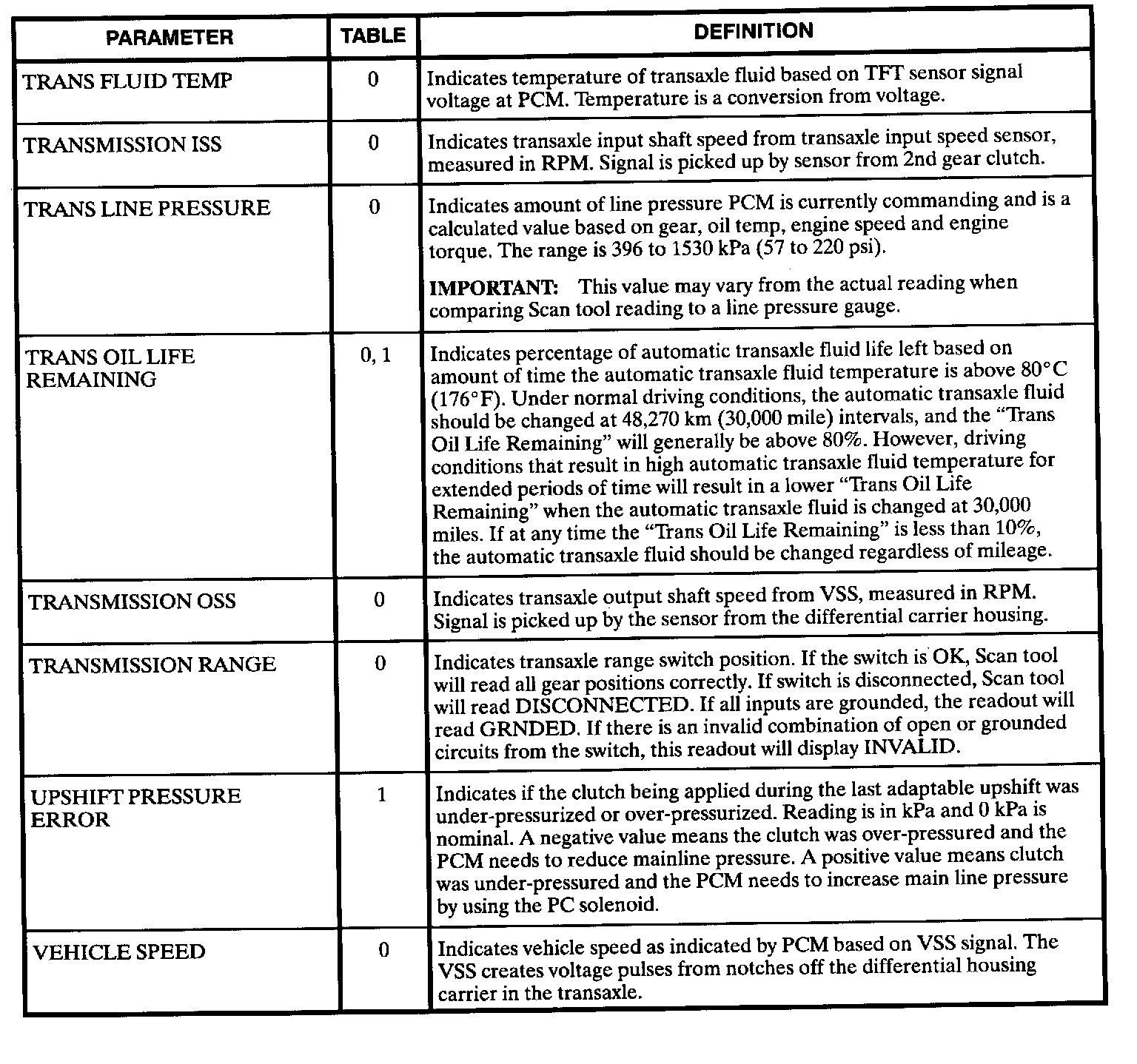

Part 4 of 4
