Torque Converter Seal

- TOOLS REQUIRED
- SA9107T Converter Seal Installer

REPLACEMENT

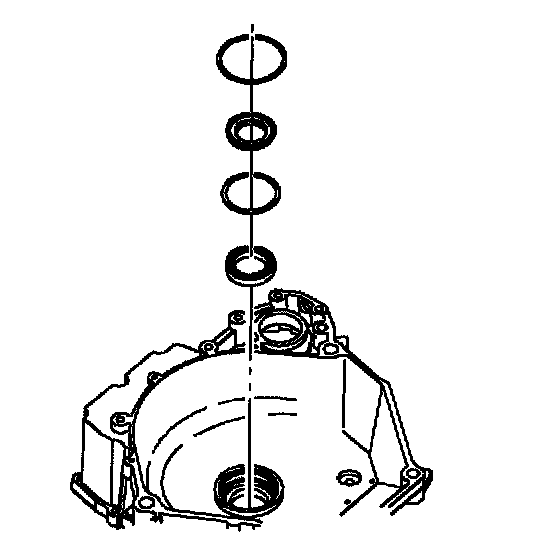

1. Remove transaxle.
2. Remove converter.
3. Remove retaining ring.
4. Remove seal by prying out with a screwdriver.
5. Install converter housing seal using SA9107T and install snap ring.
