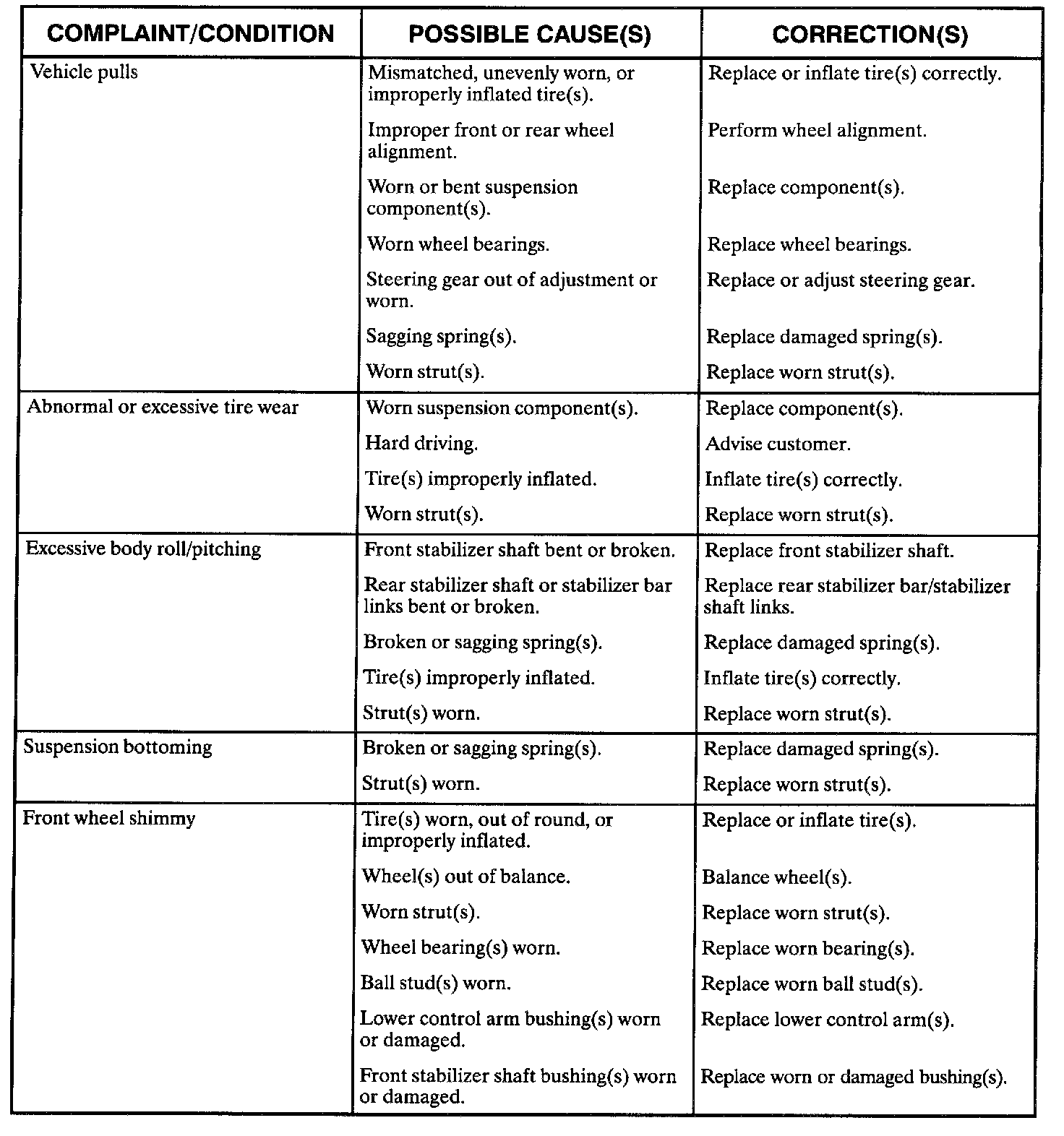

- Cause/Complaint Chart - Front Suspension

When diagnosing vehicle ride/handling complaints, it is often necessary to treat the vehicle as an entire system, due to the fact that many subsystems (such as the front and rear suspensions, steering, tires and wheels) can contribute to ride/handling problems. Because of this, comprehensive ride/handling problem diagnosis must consider all these systems. Once a diagnosis has been made, reference the appropriate Service and Repair information for part replacement procedure.
