Ignition Switch Continuity

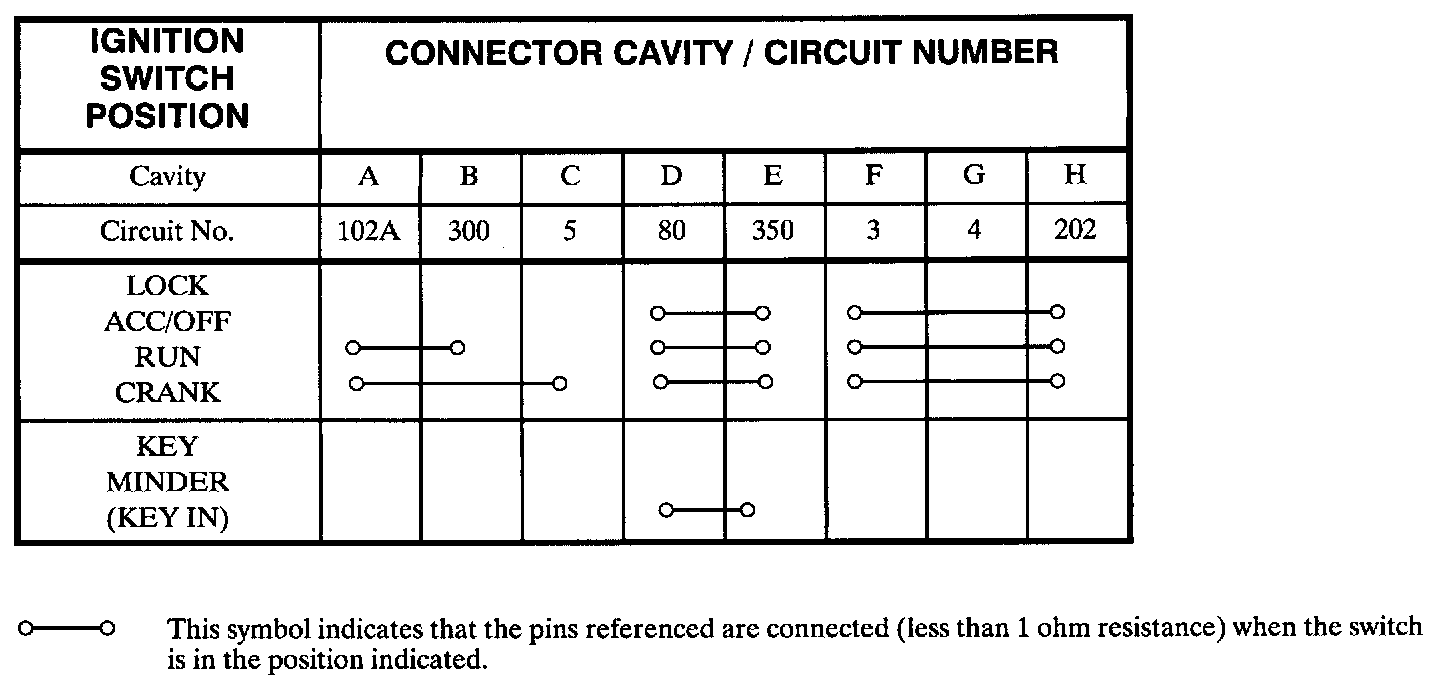

Ignition Switch Continuity:
IMPORTANT:
The
key
minder circuit is open until the
ignition switch
is cycled.
