Underhood Fuse Block Charts

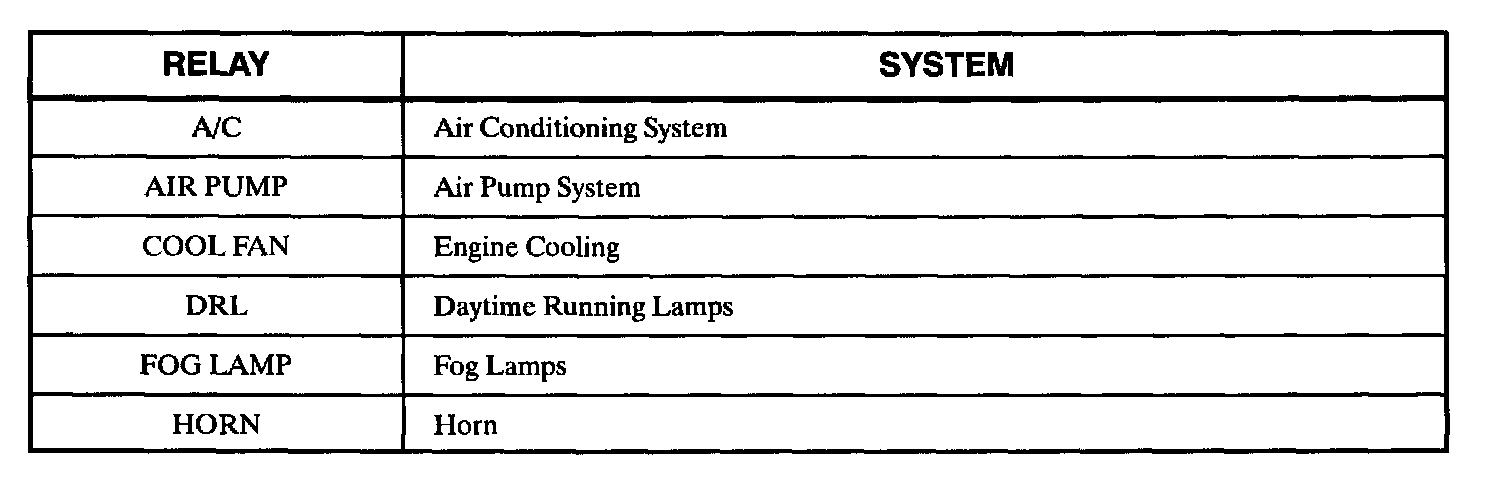

The chart lists the relays, located in the underhood fuse block, and the systems they control.

IMPORTANT: A label is provided on the fuse block cover for the fuse layout.
