Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Left Rear Body Ground & Splice Pack (T) & Right Rear Ground (U)

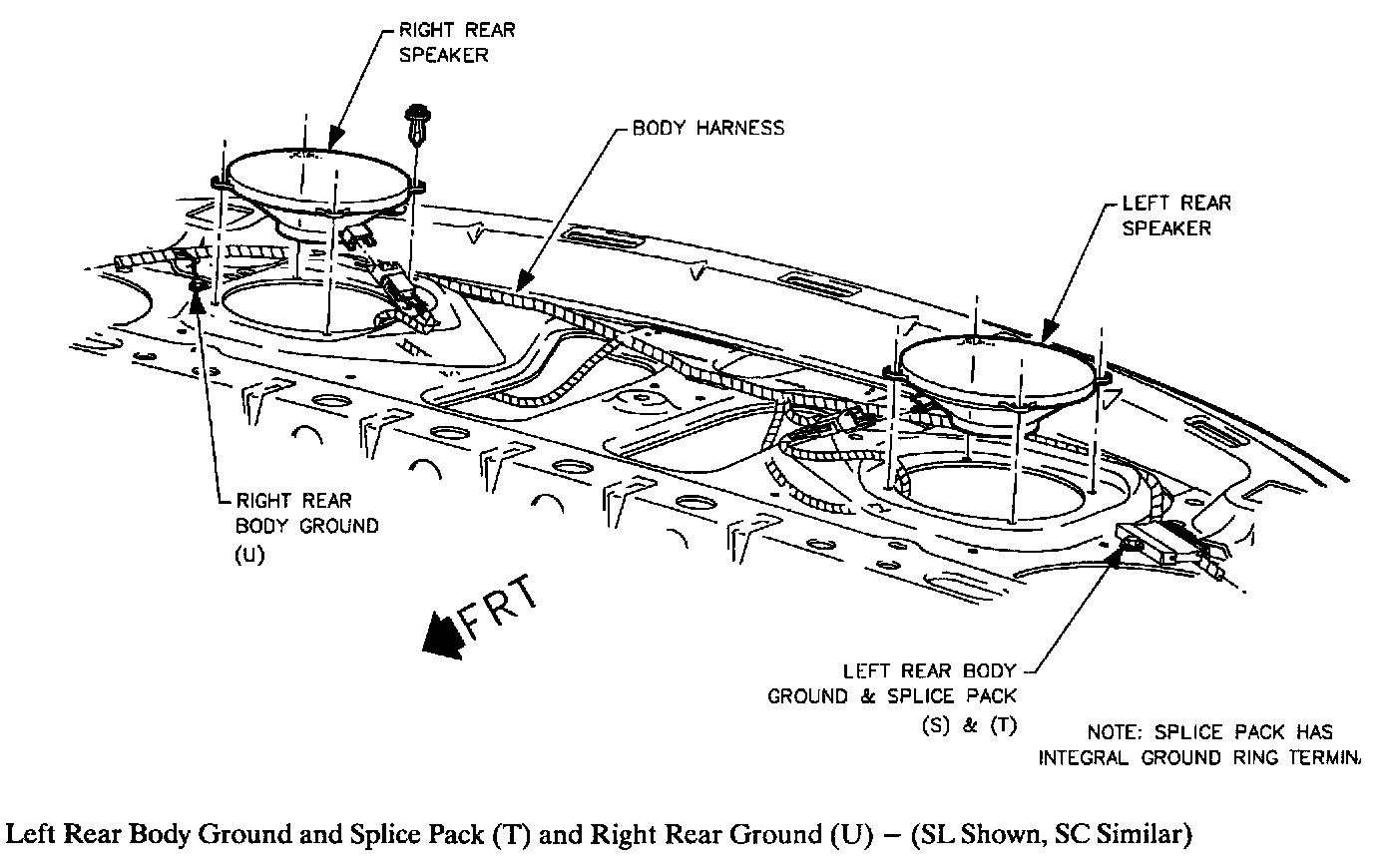

Left Rear Body Ground & Splice Pack (T) & Right Rear Ground (U)

Ground Distribution Locations:
