Maxifuse/Minifuse Feeds

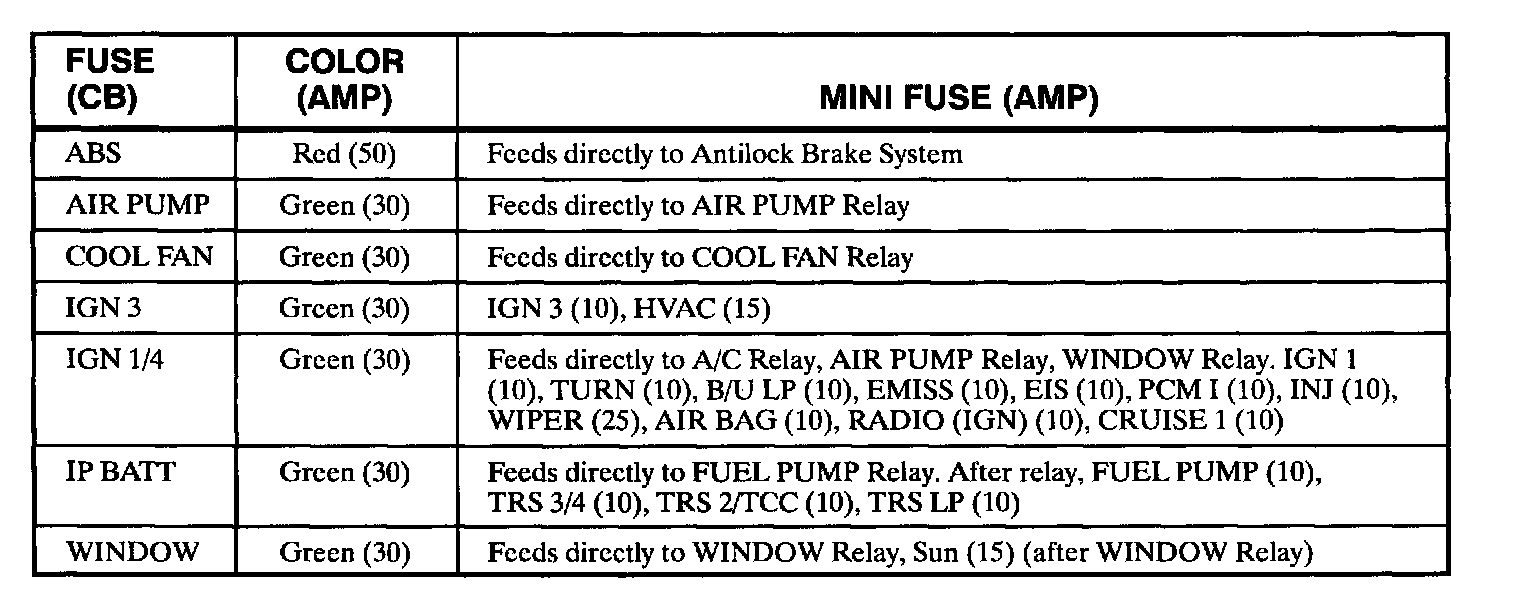

This chart lists the maxifuses located in the underhood fuse block and the minifuses or relays they control.

IMPORTANT: A label is provided on the fuse block cover for the fuse layout.
