Minifuses Circuit Feeds

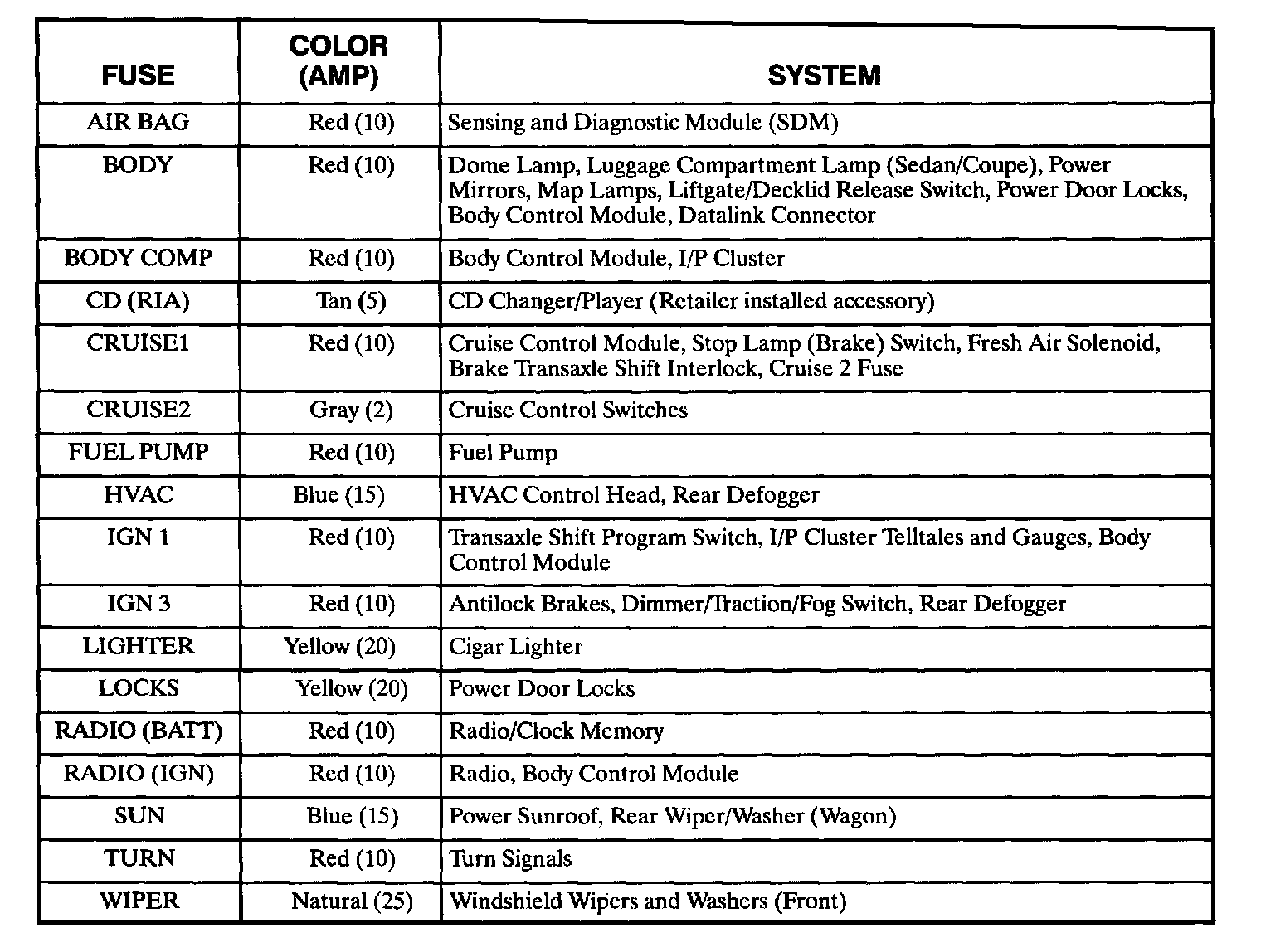

The chart lists the minifuses, located in the instrument panel fuse block, and the systems they control.

IMPORTANT: A label is provided on the fuse block access panel for fuse layout.
