Engine Mechanical Specifications

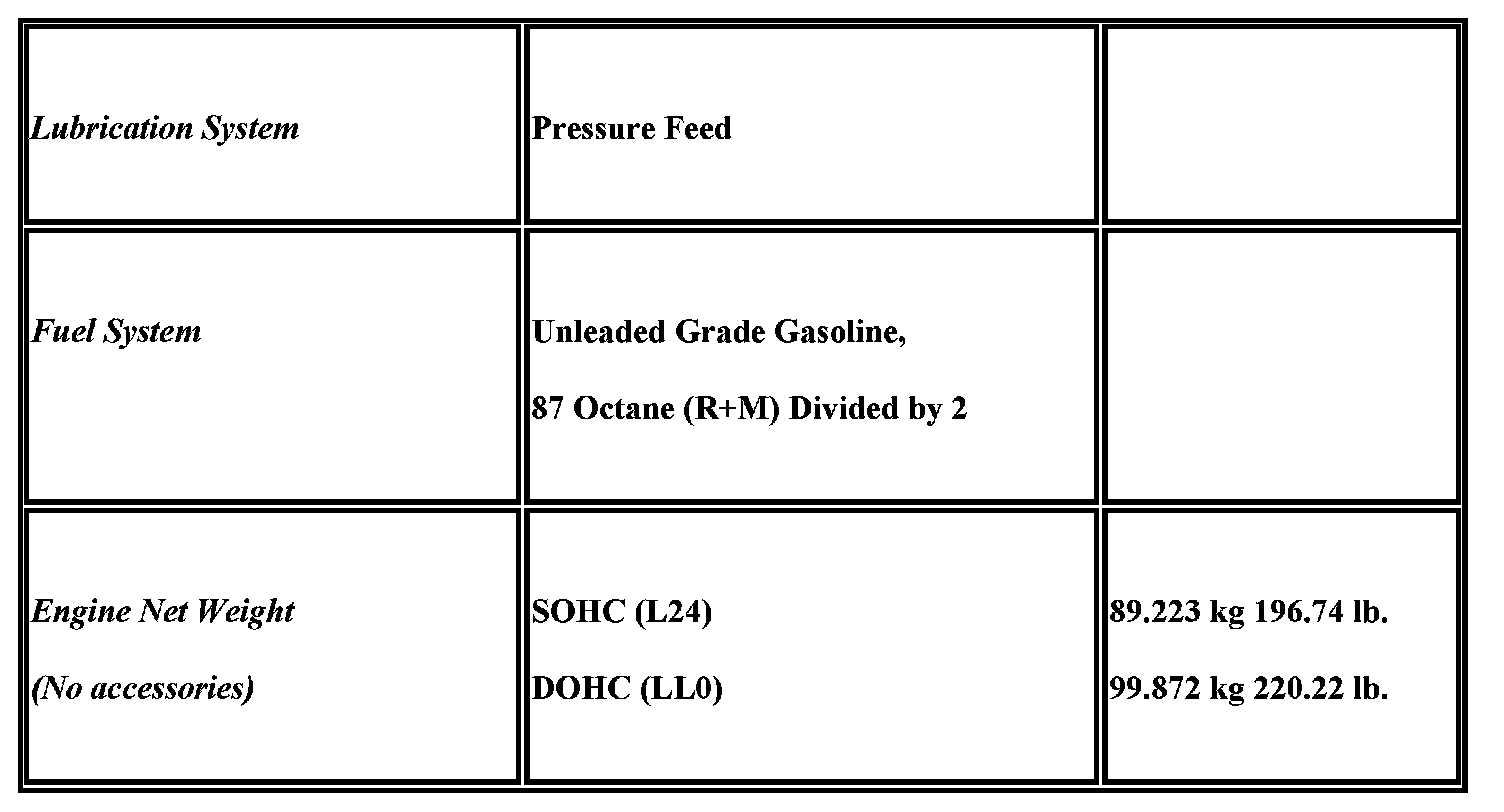

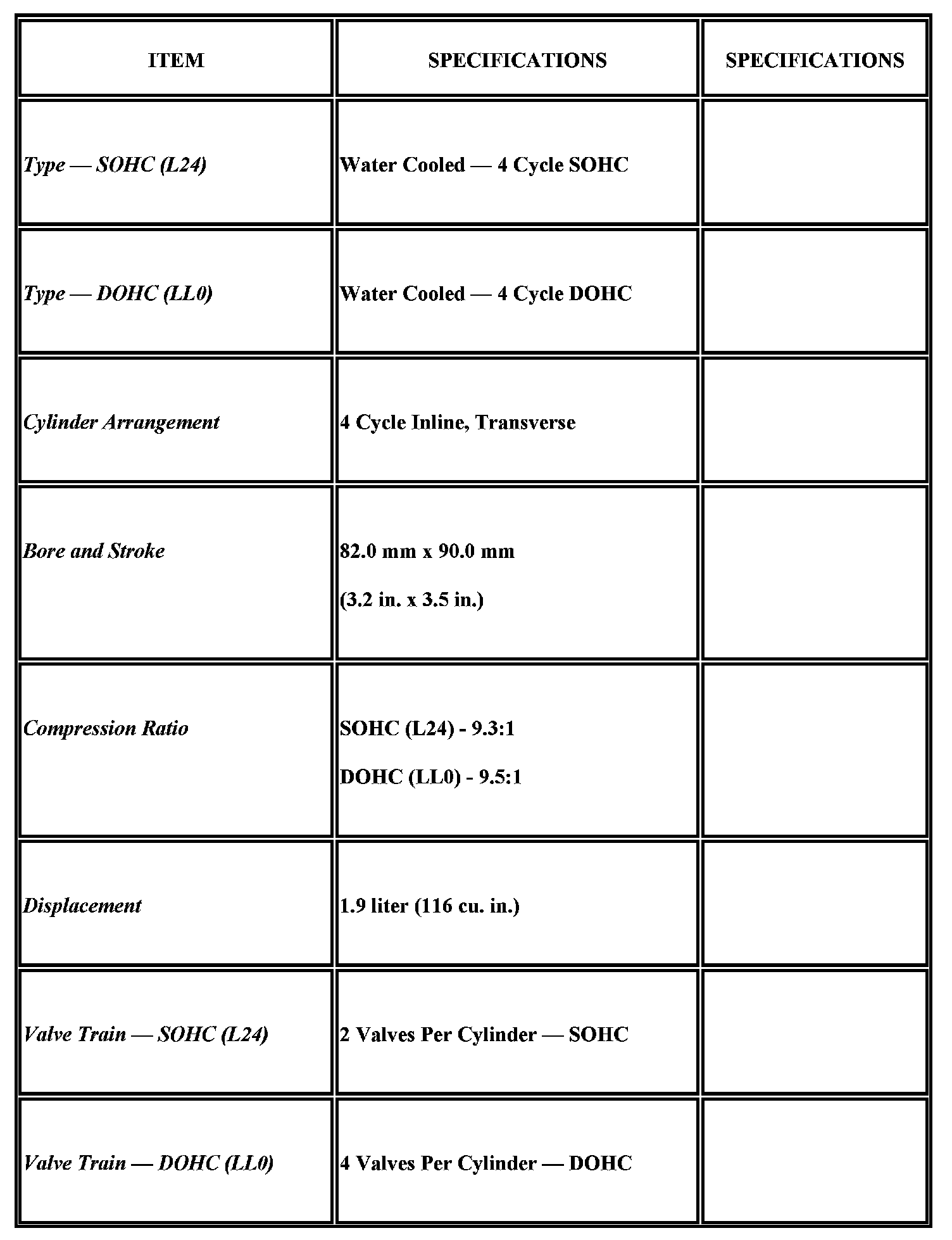

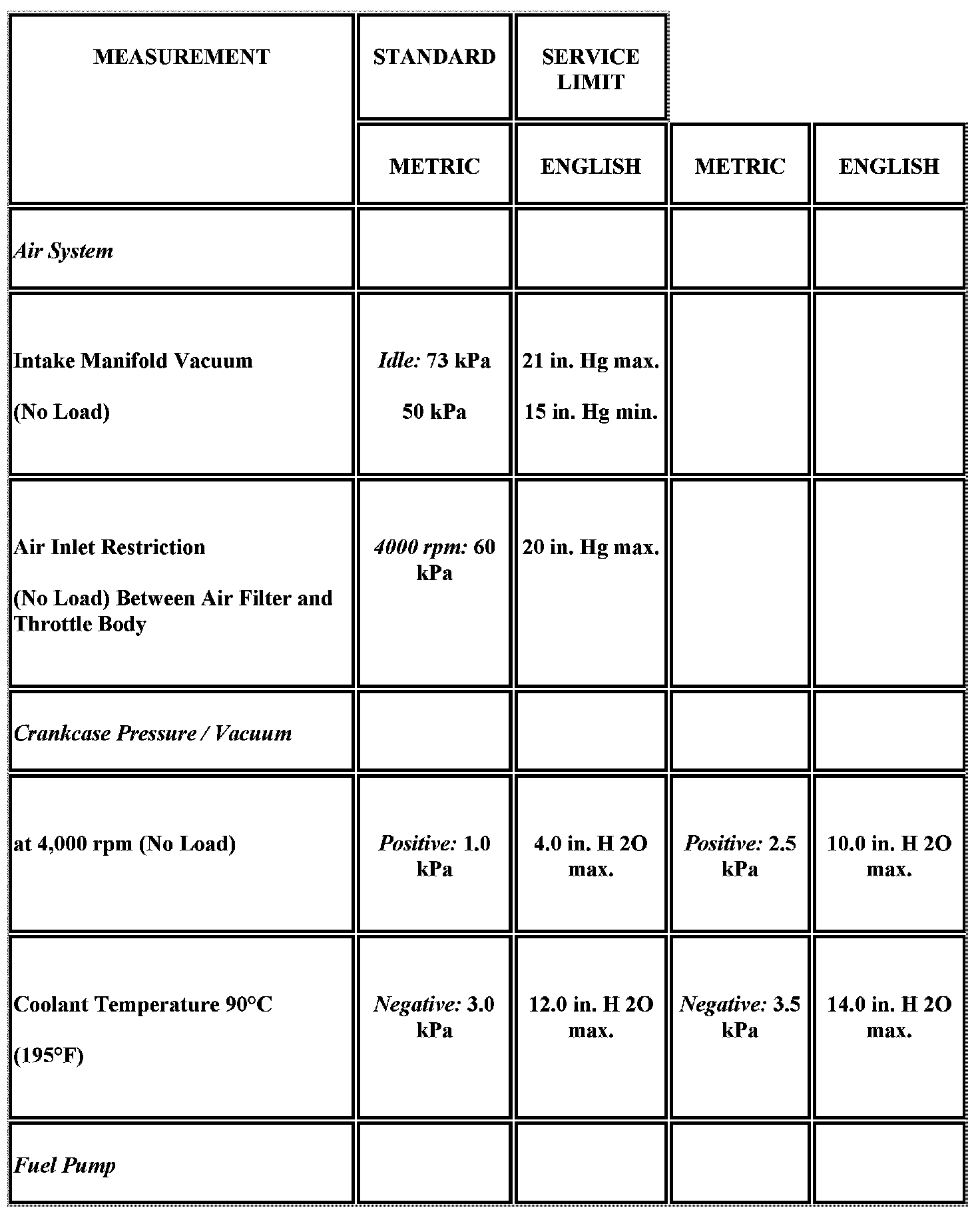

Design Specifications

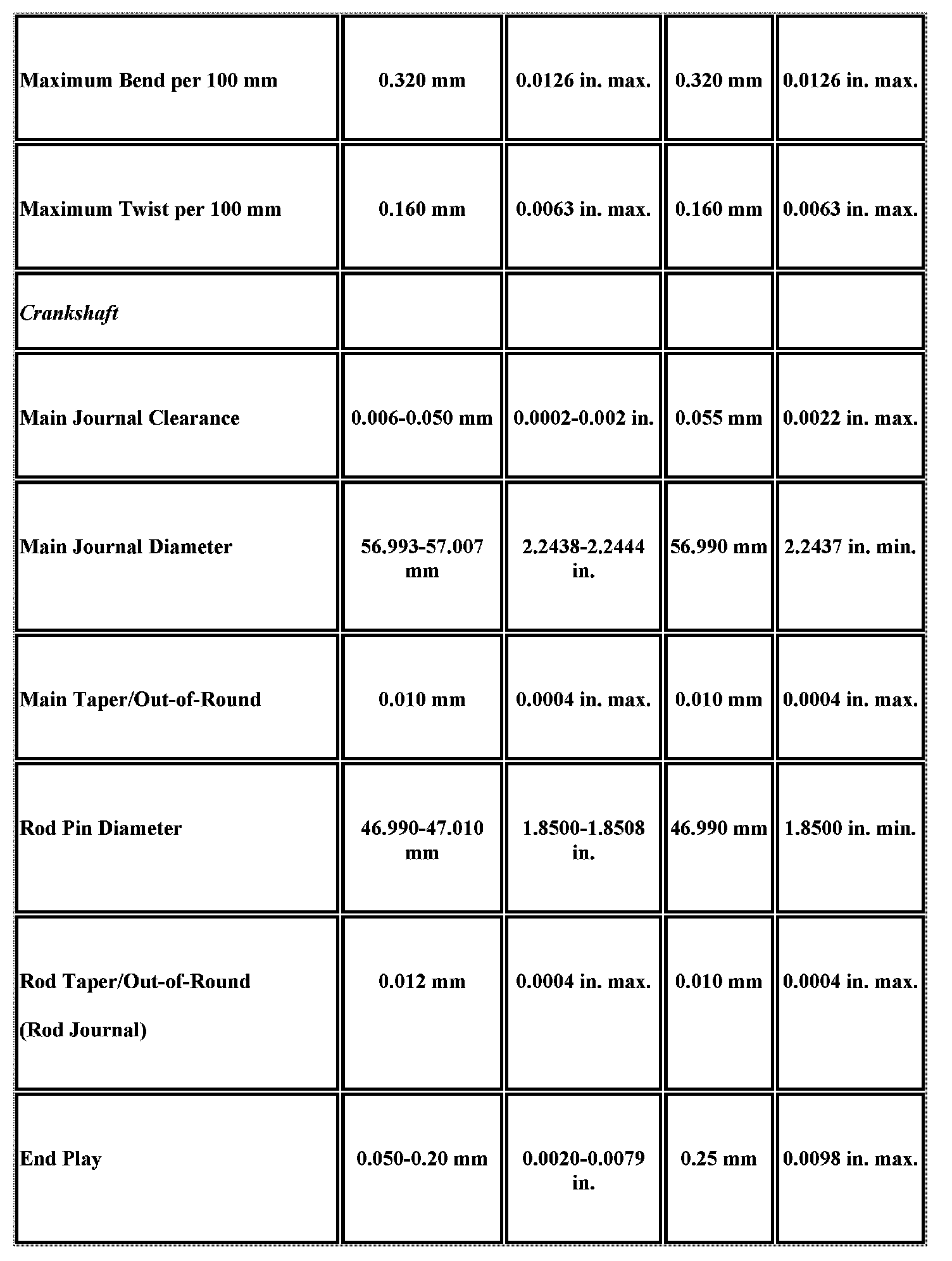

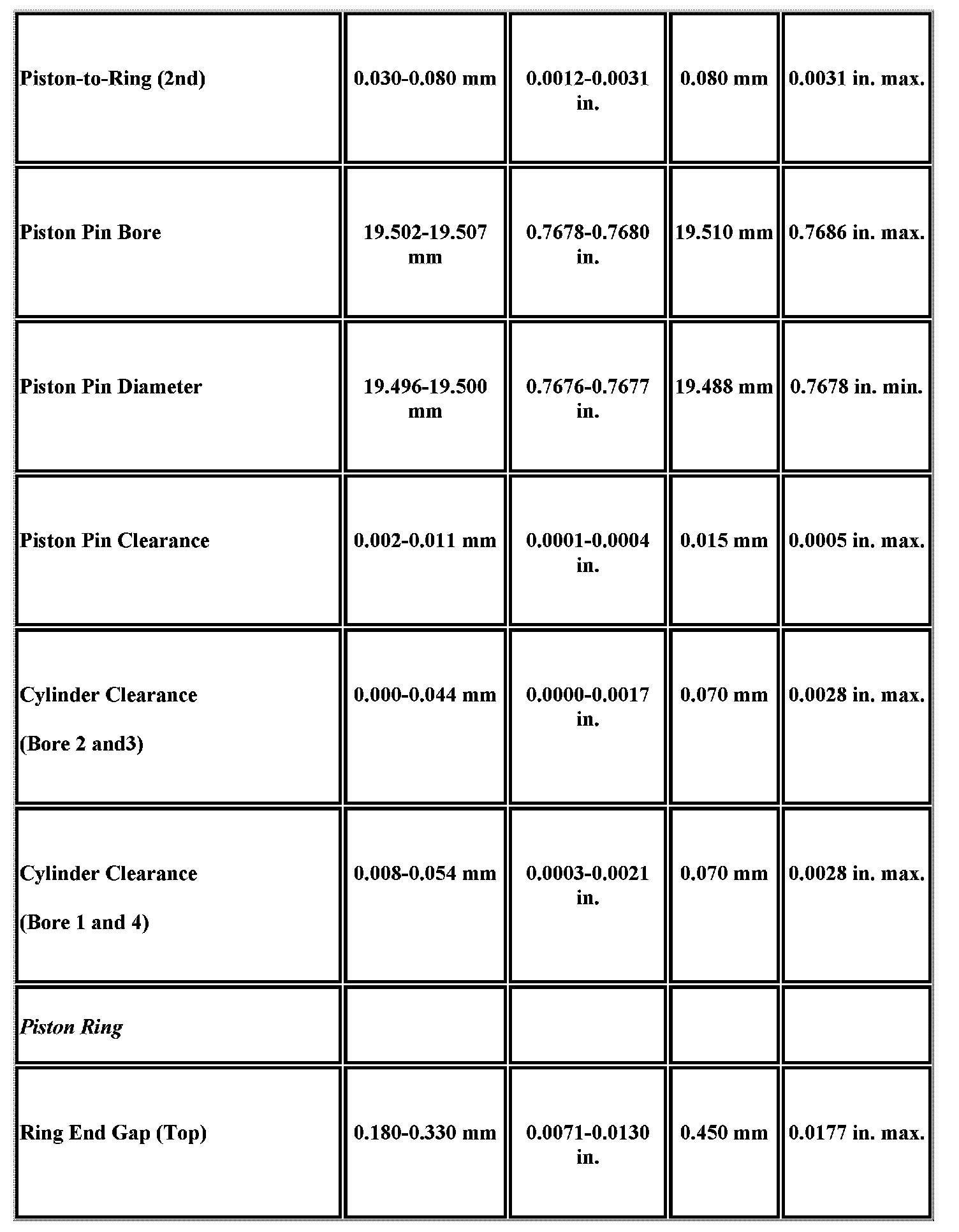

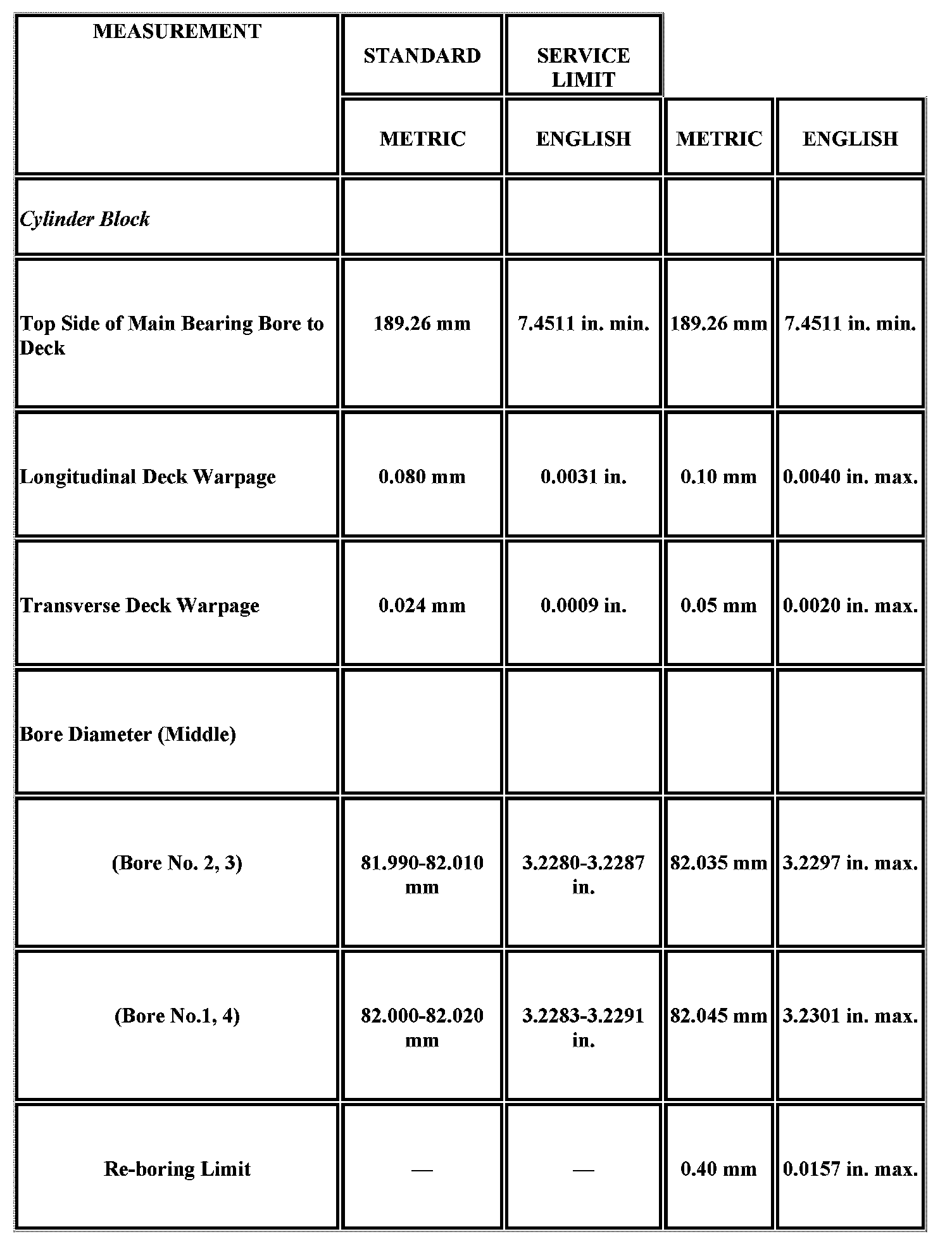

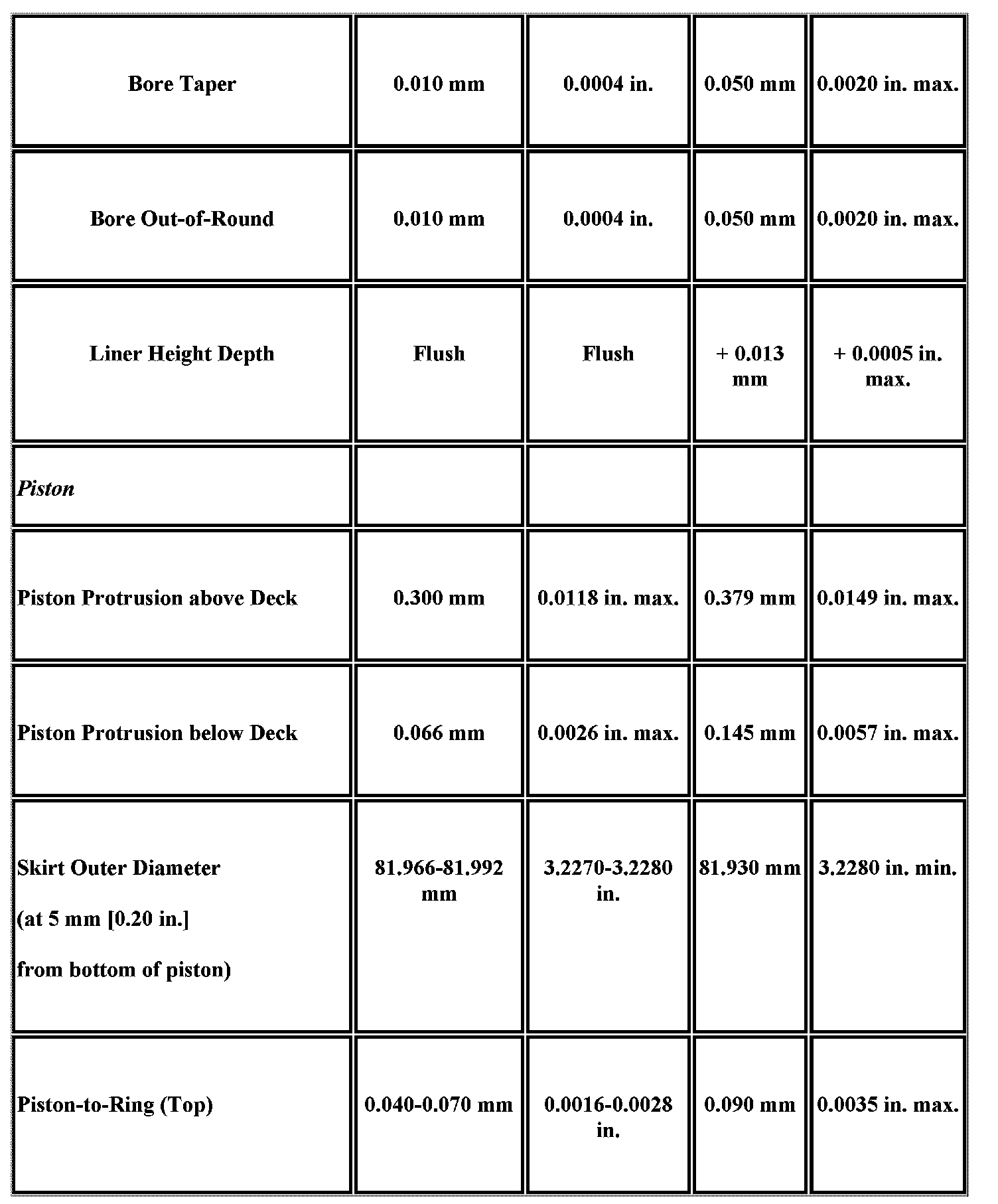

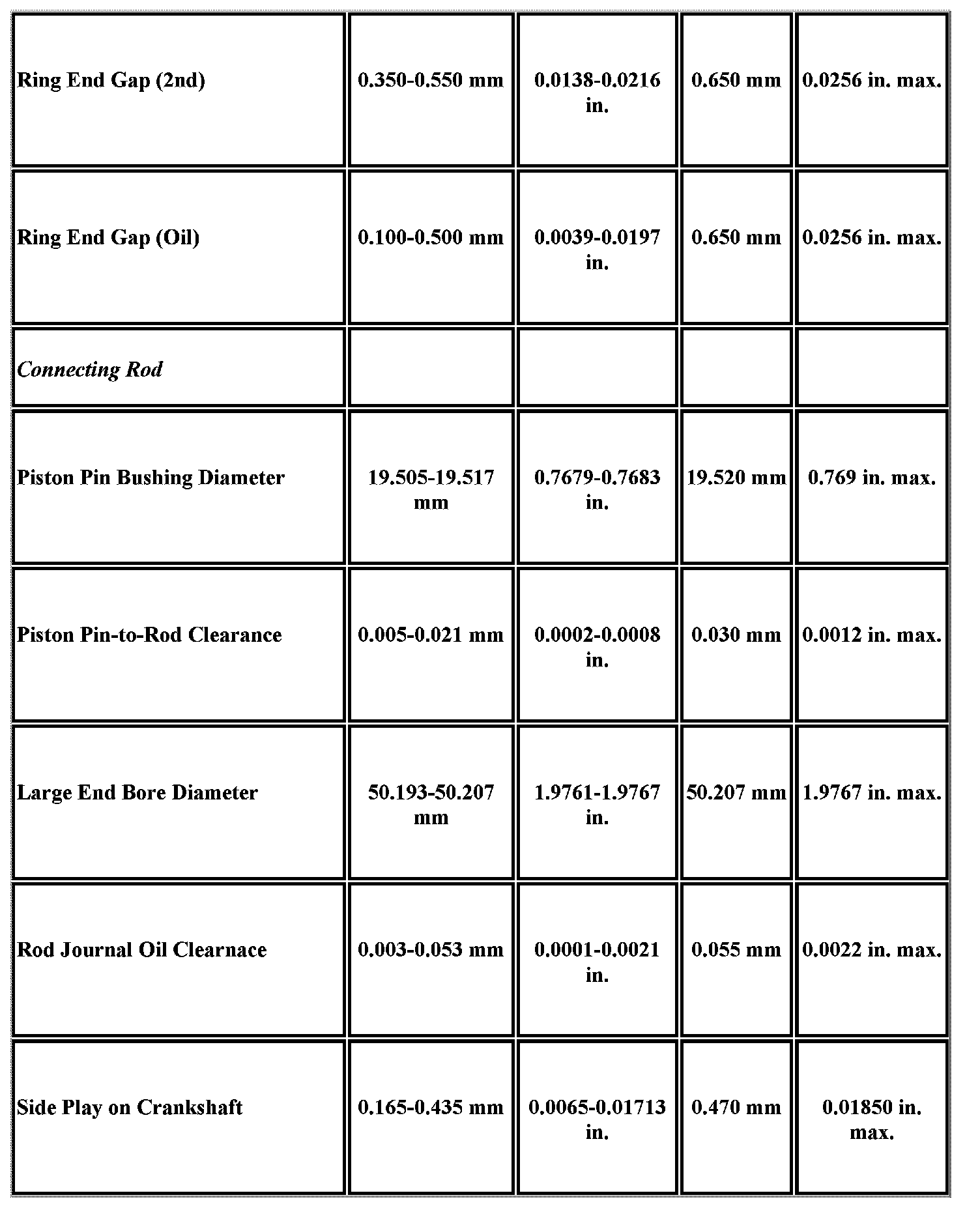

Engine Block

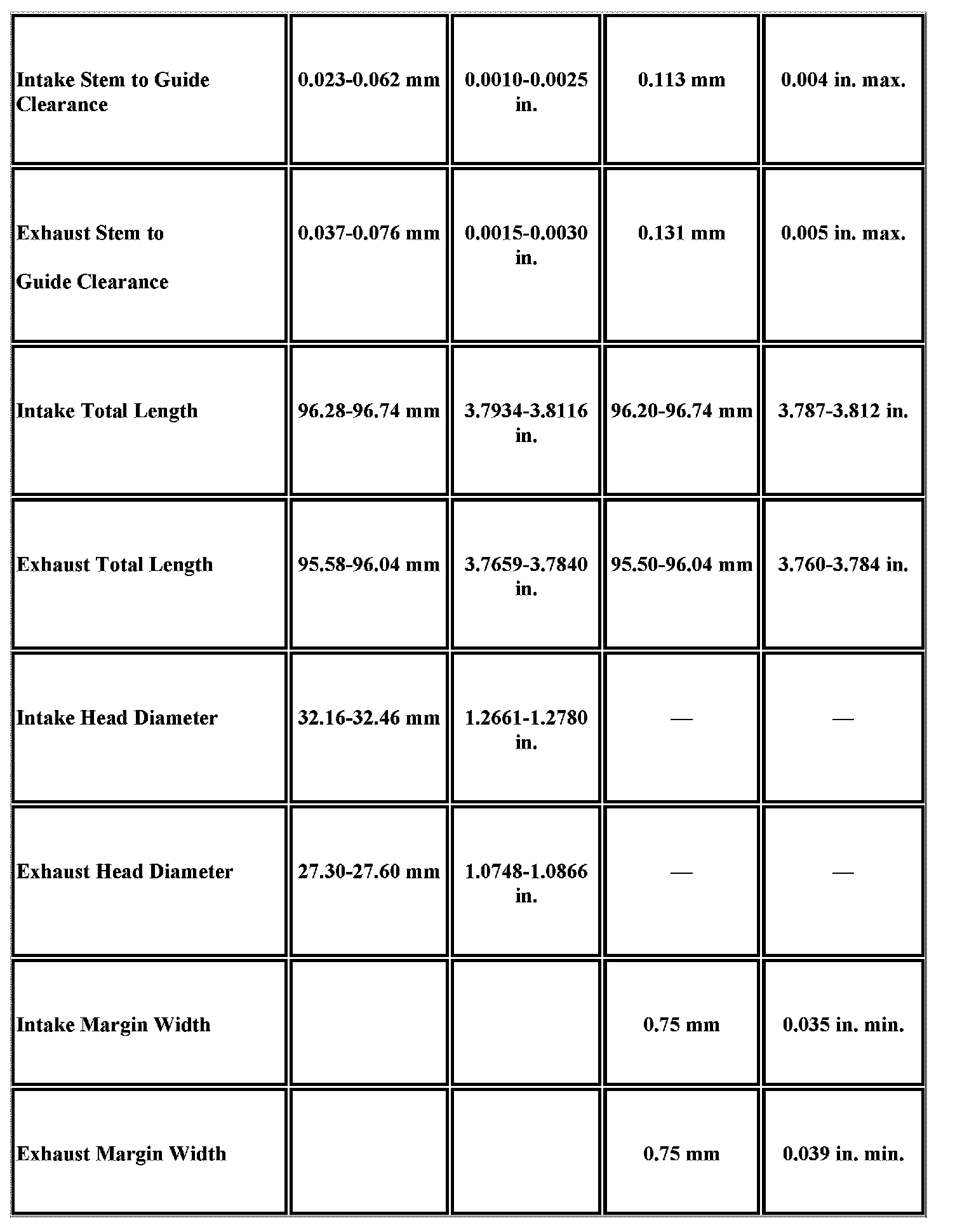

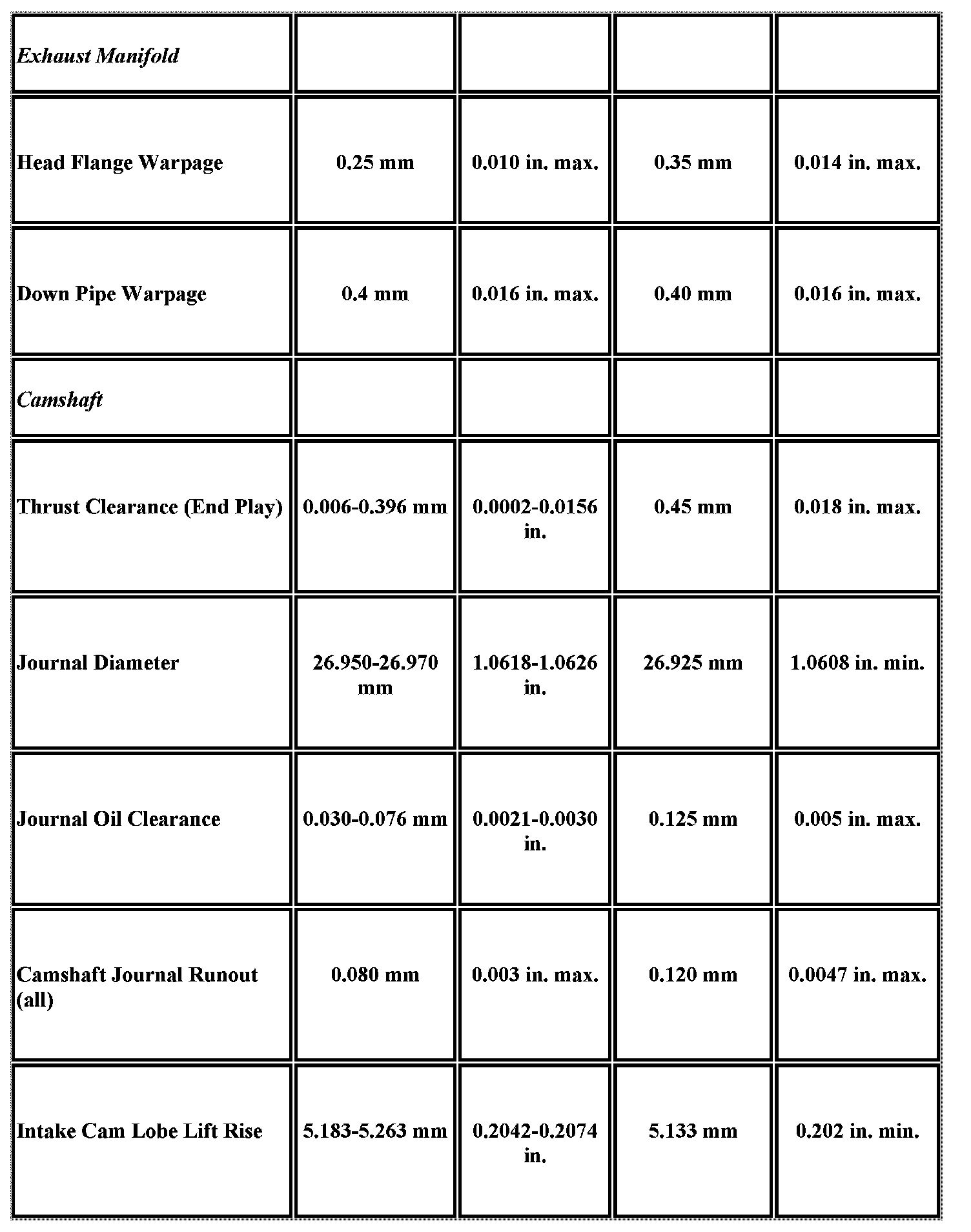

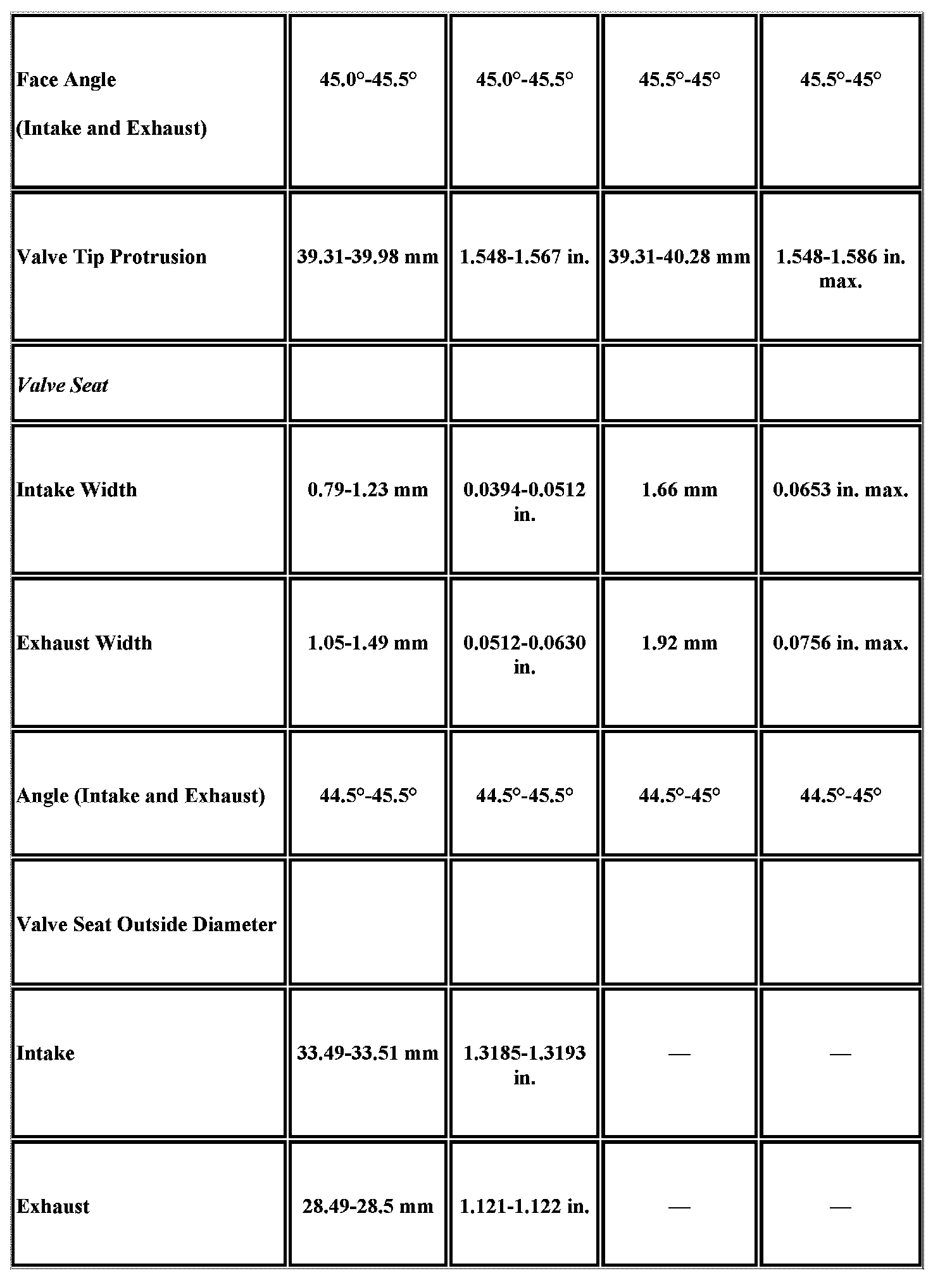

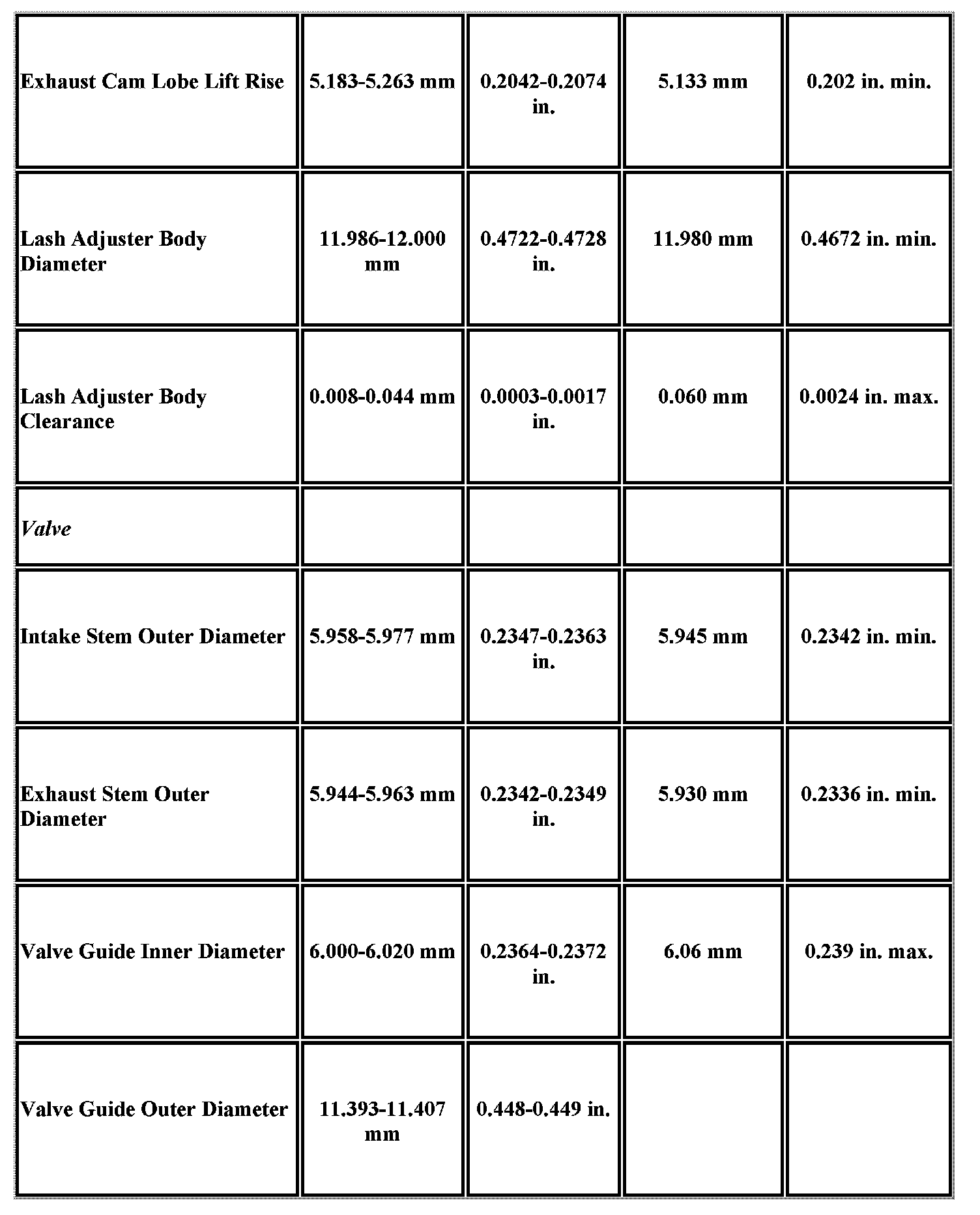

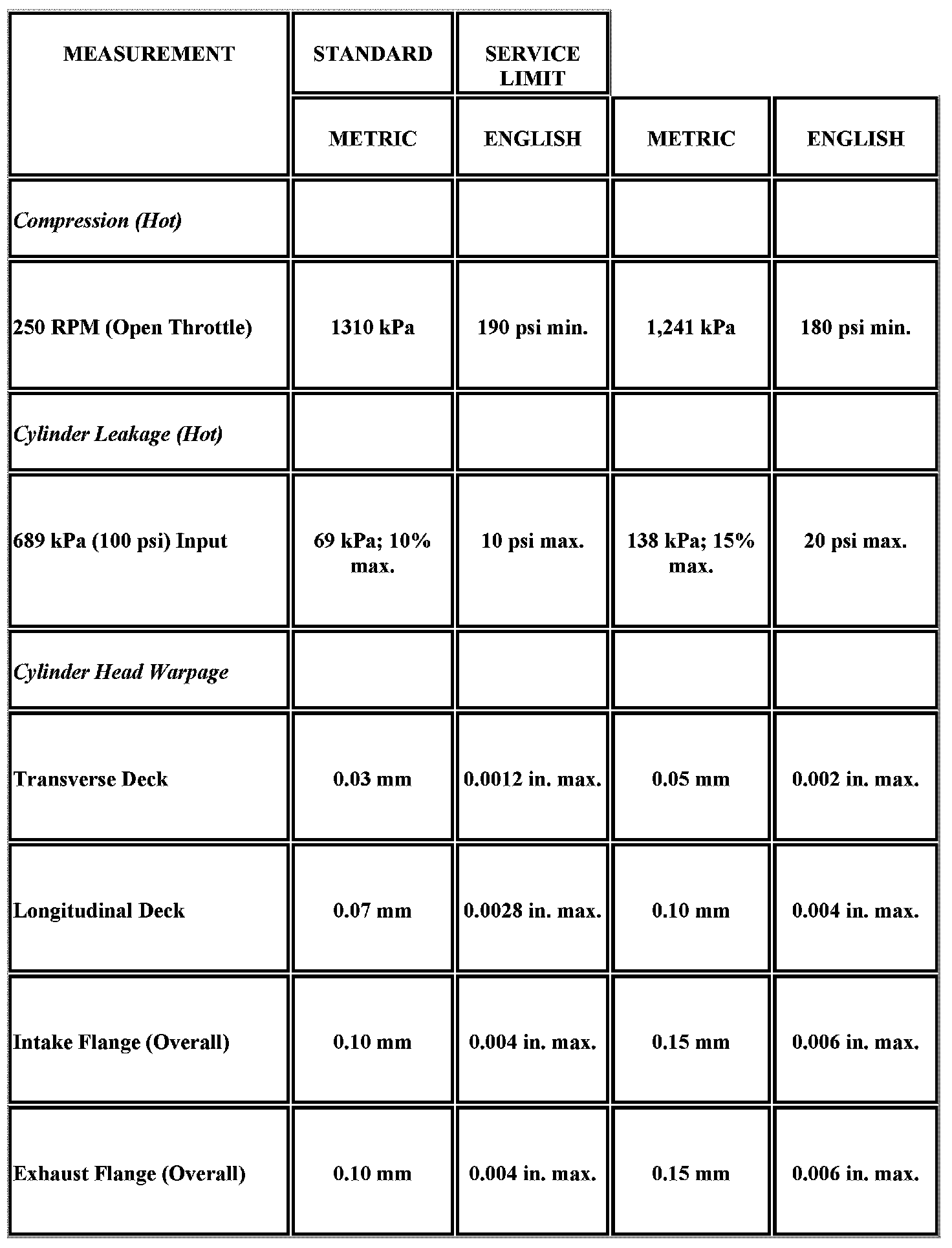

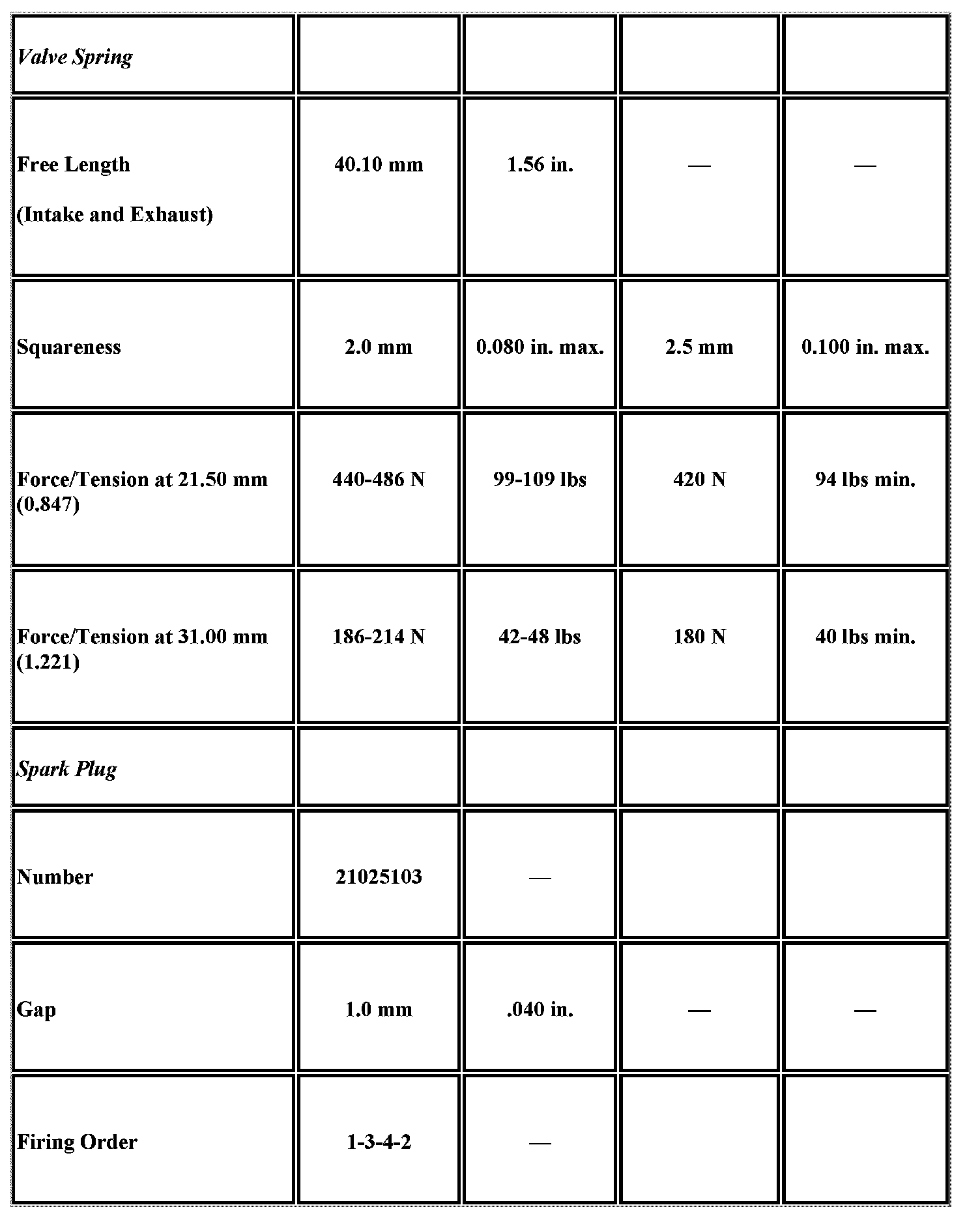

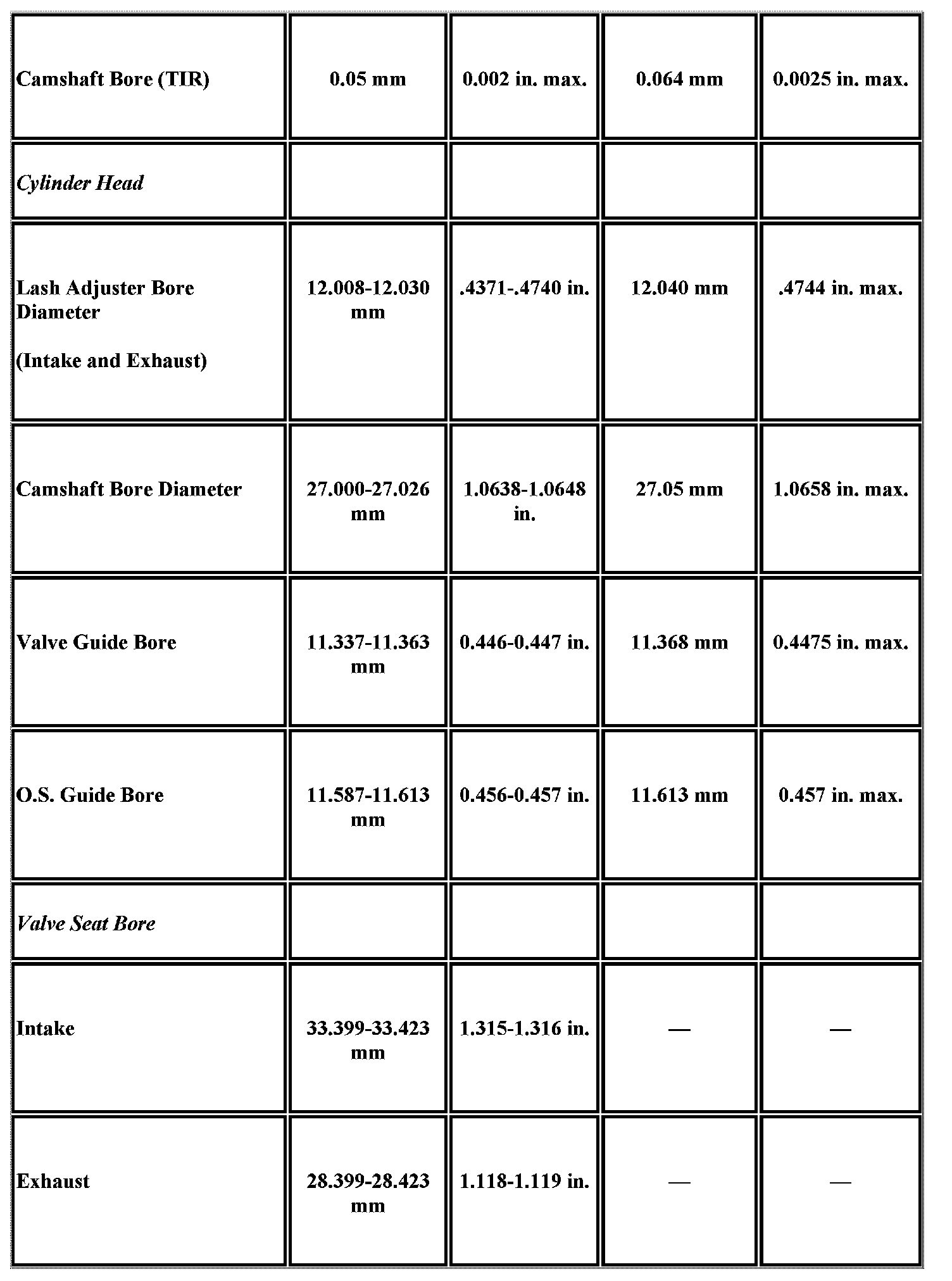

Cylinder Head

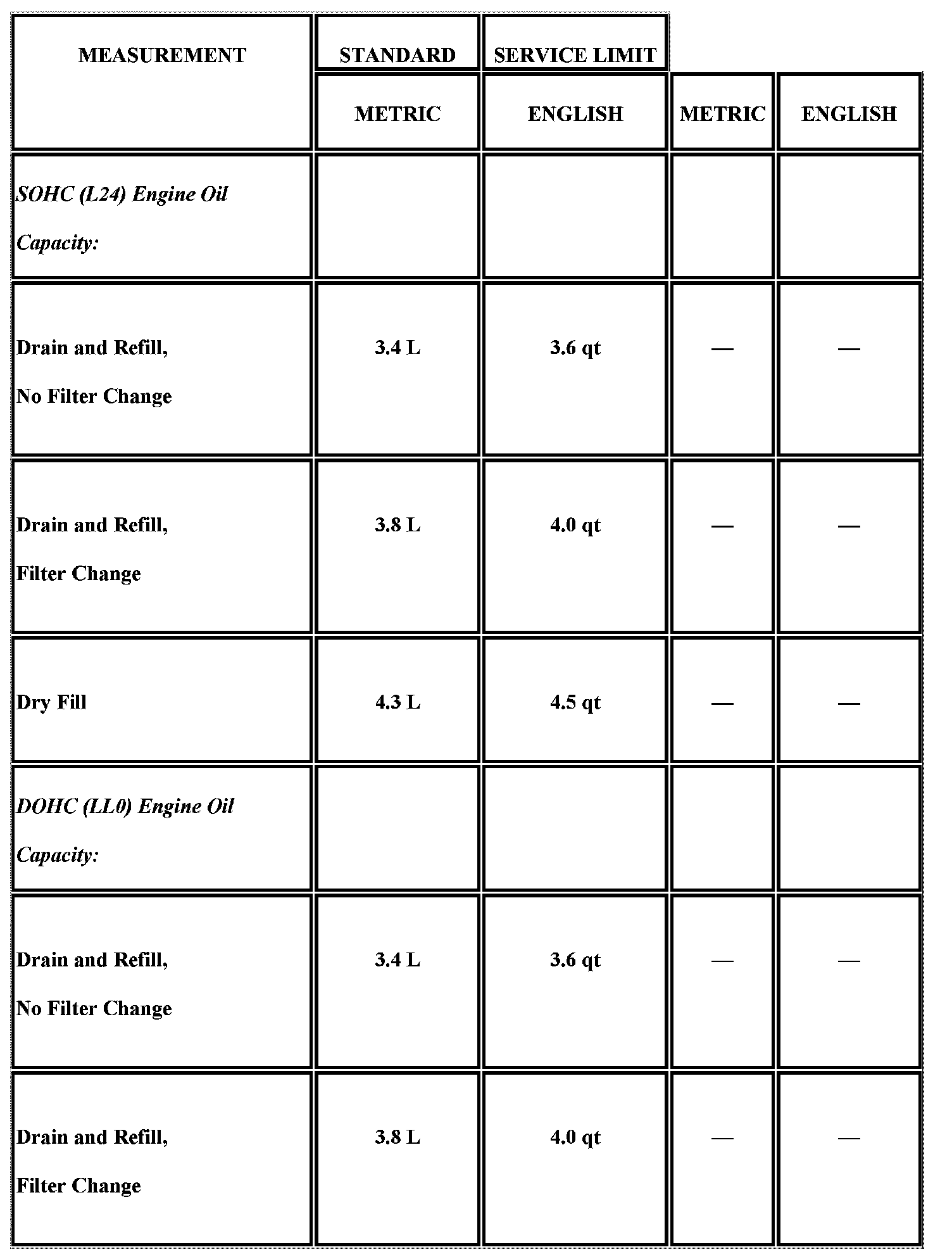

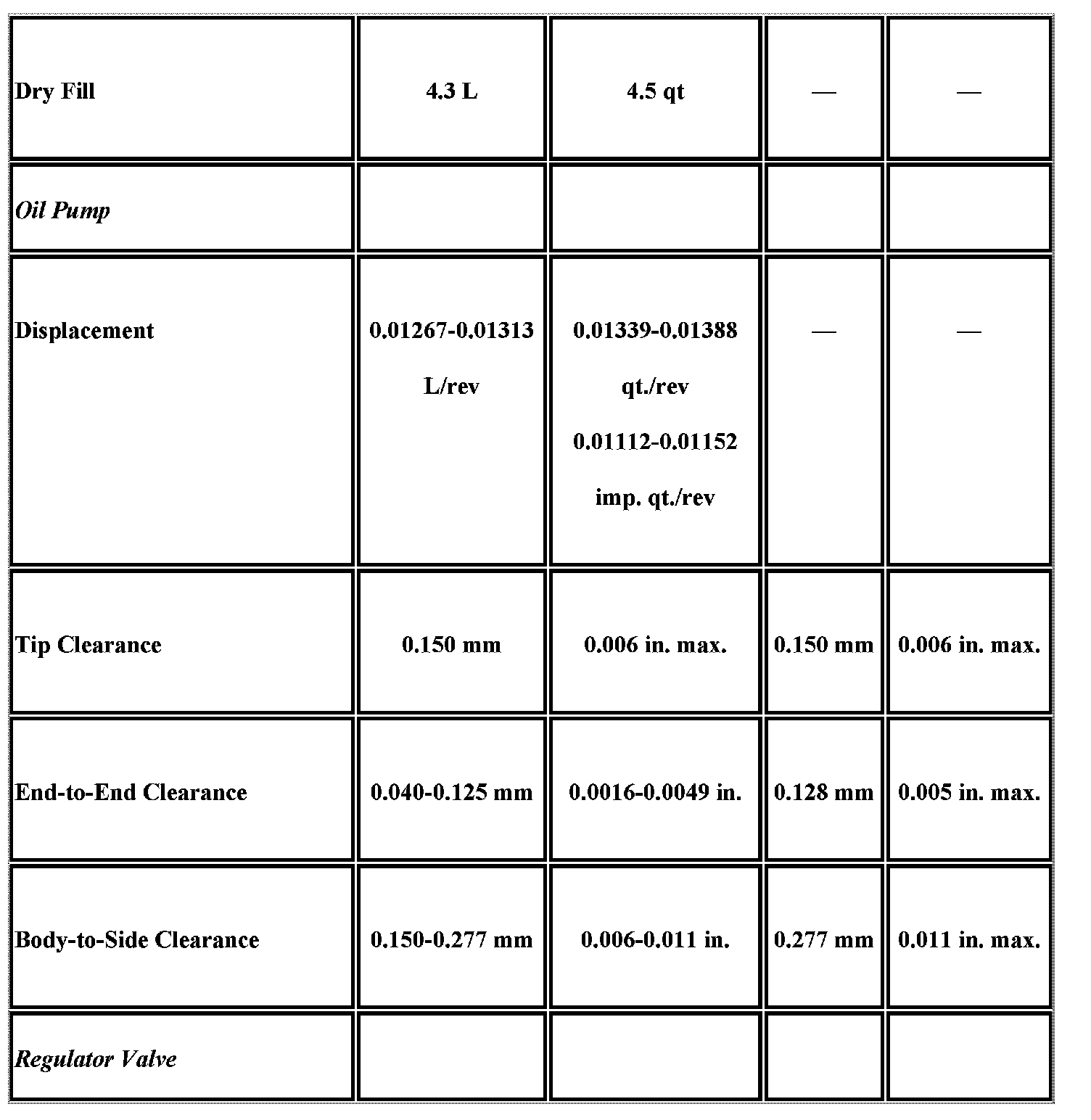

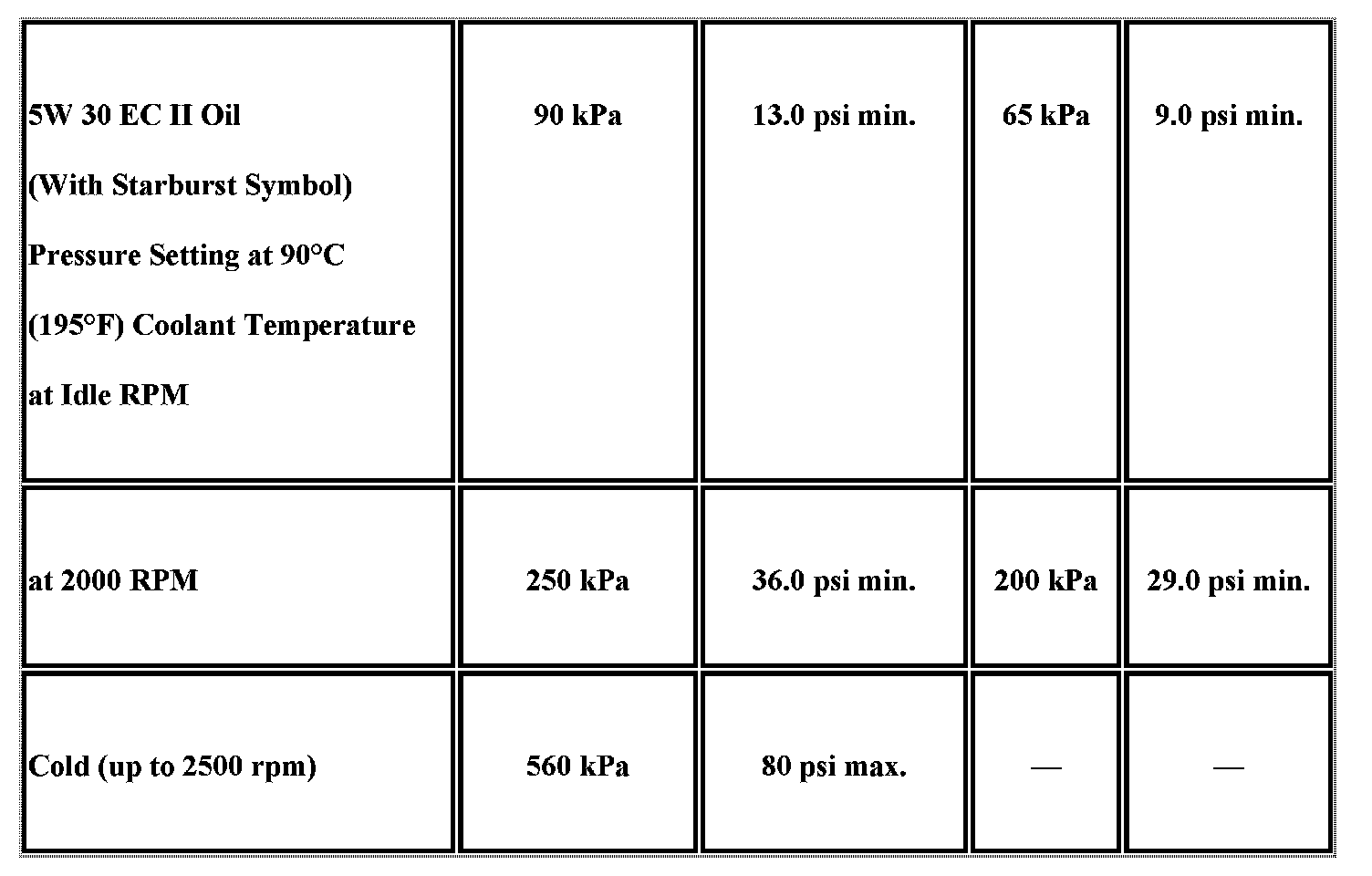

Engine Lubrication

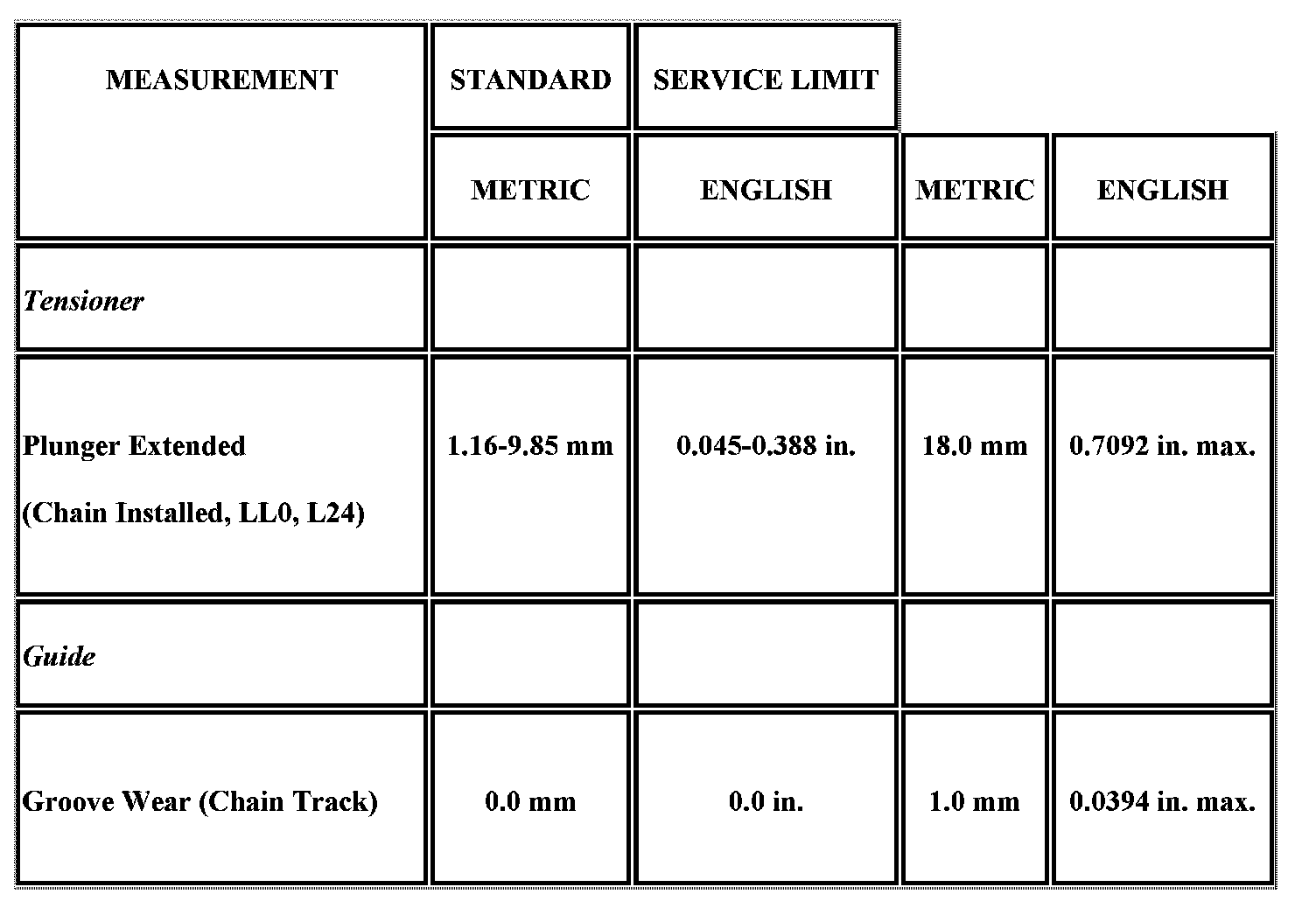

Cam Drive System

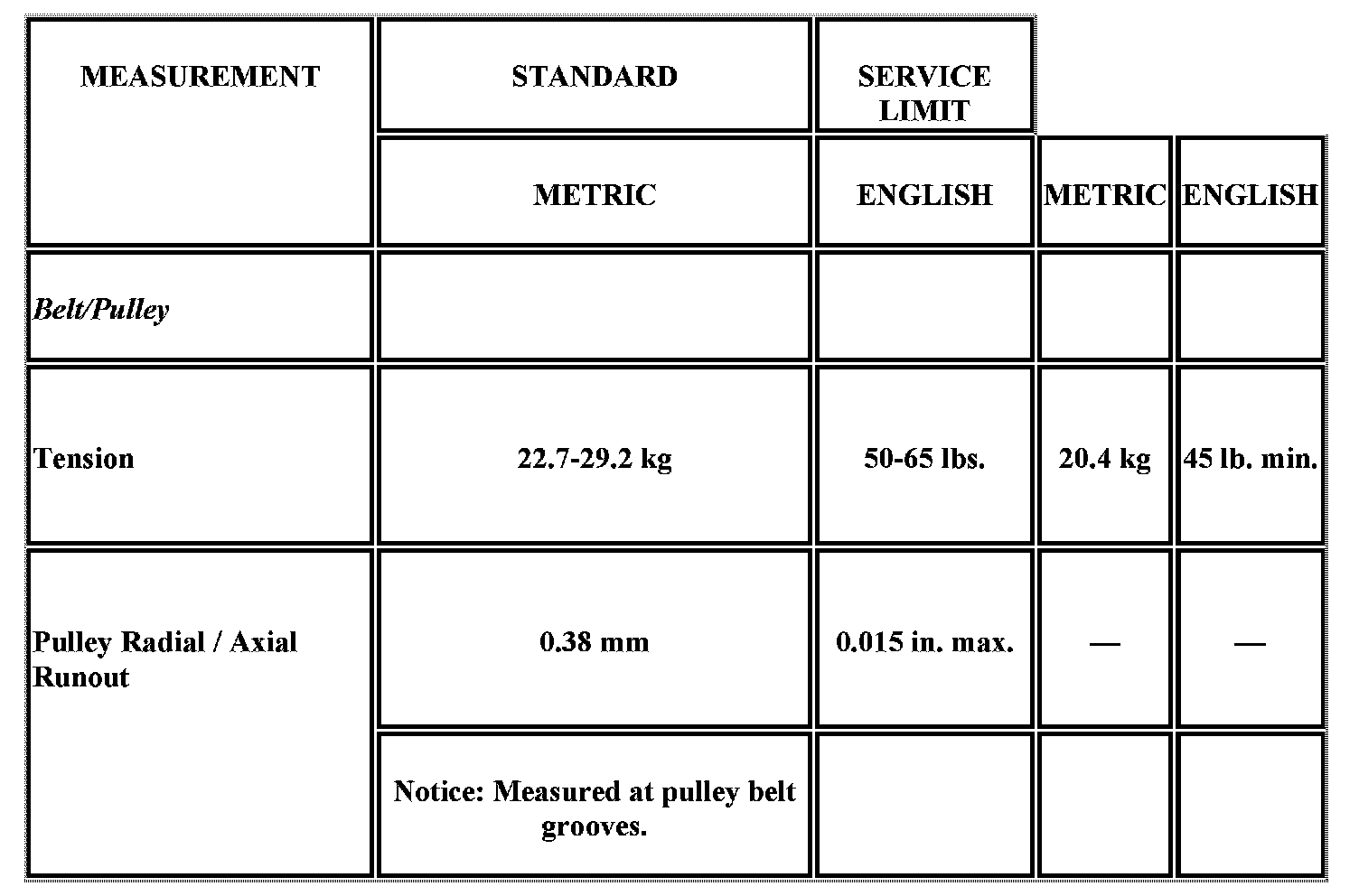

Accessory Drive Belt/Tensioner

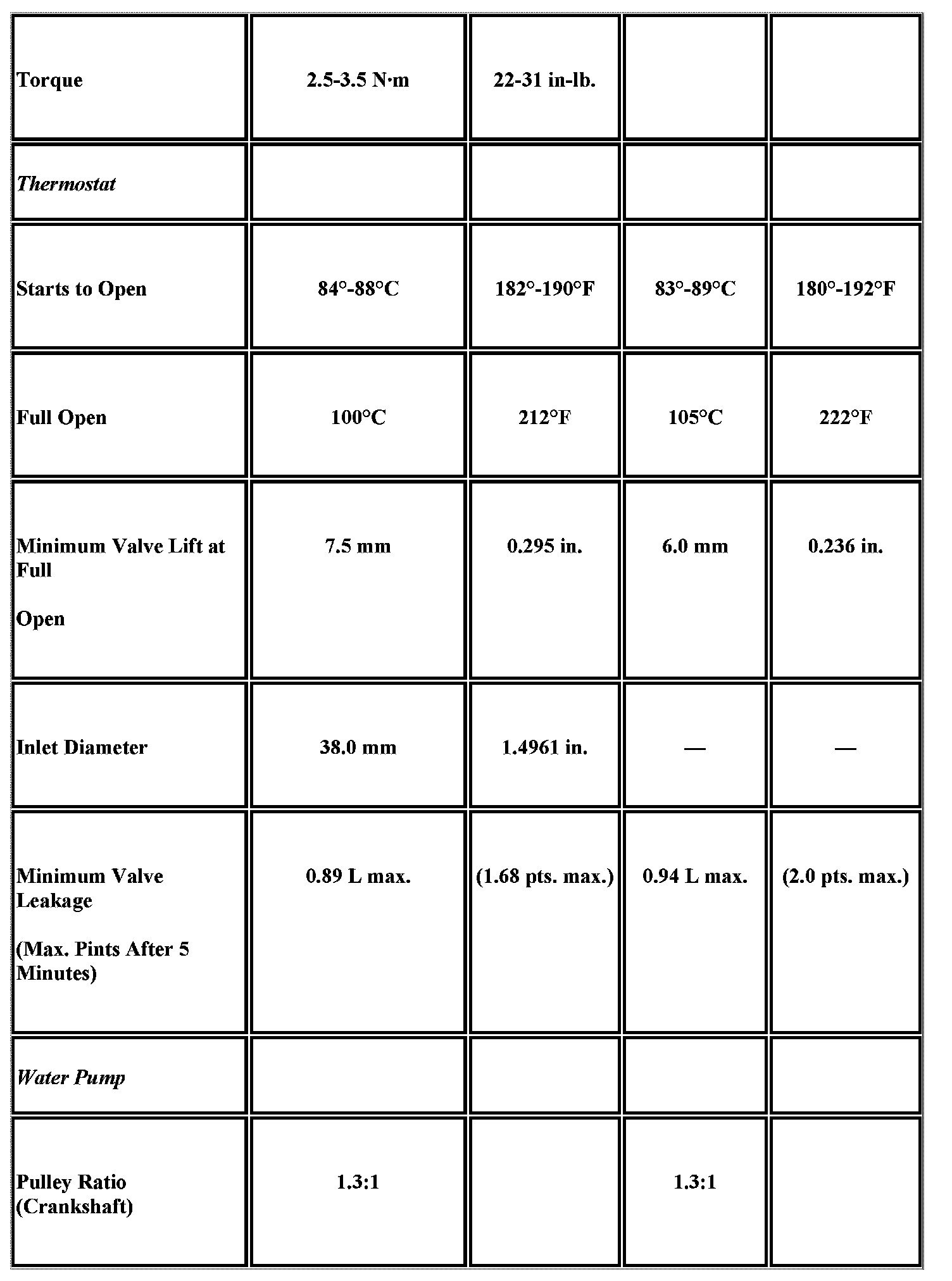

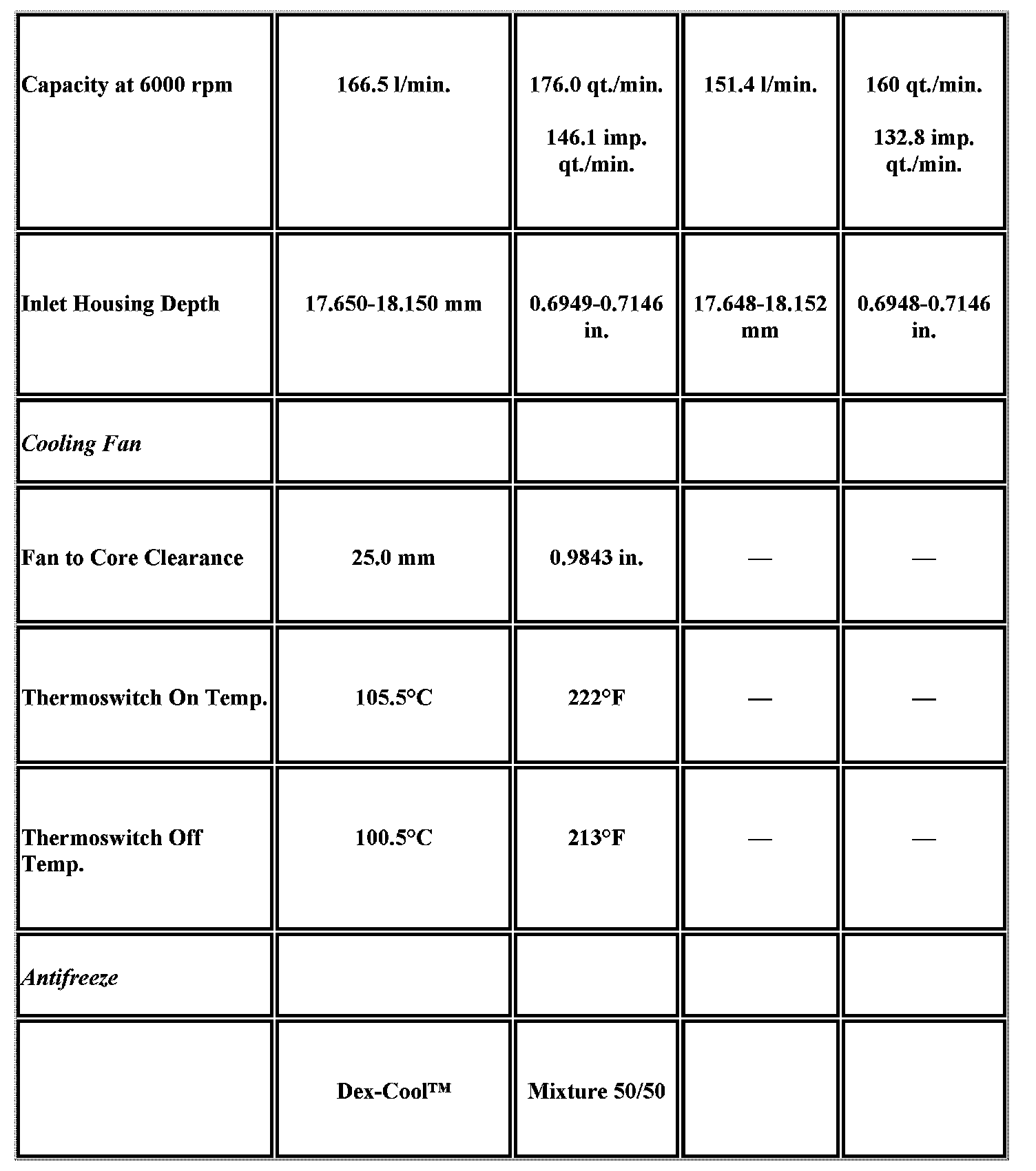

Cooling System

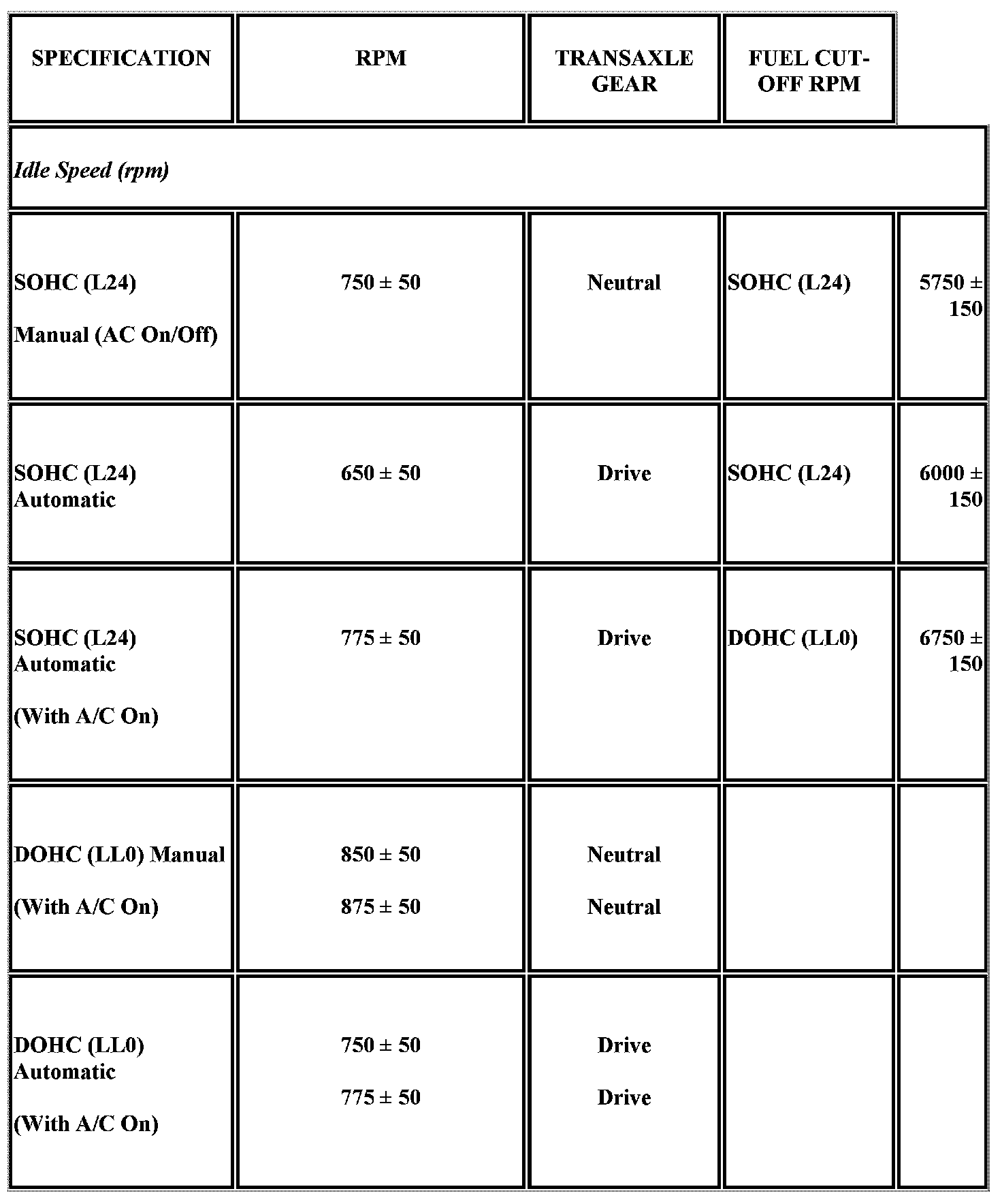

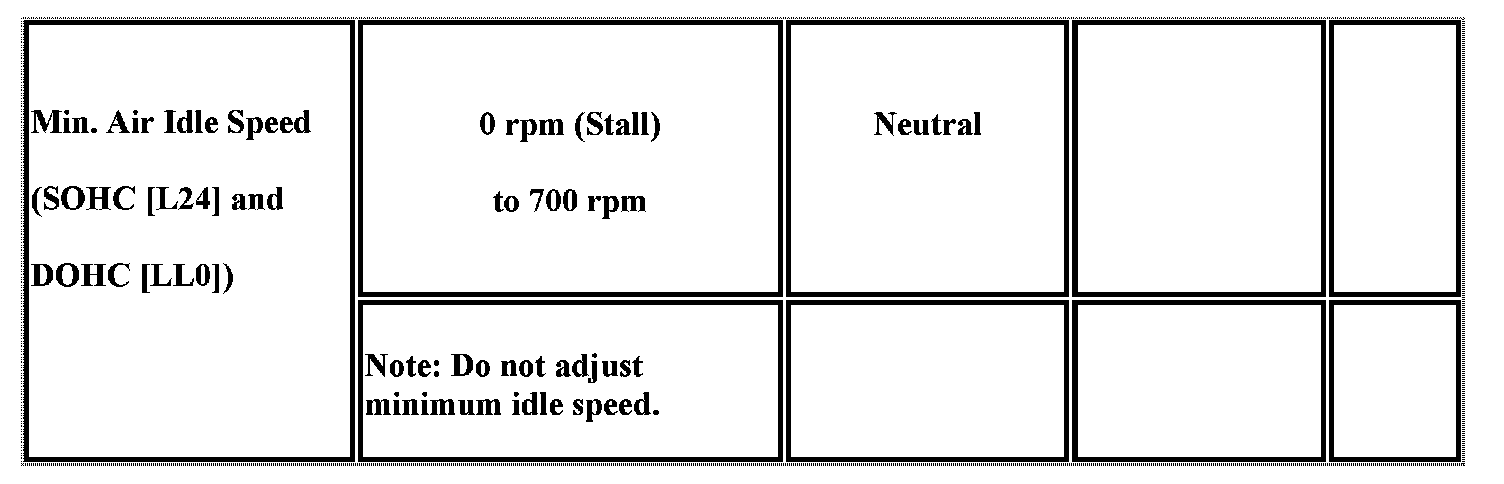

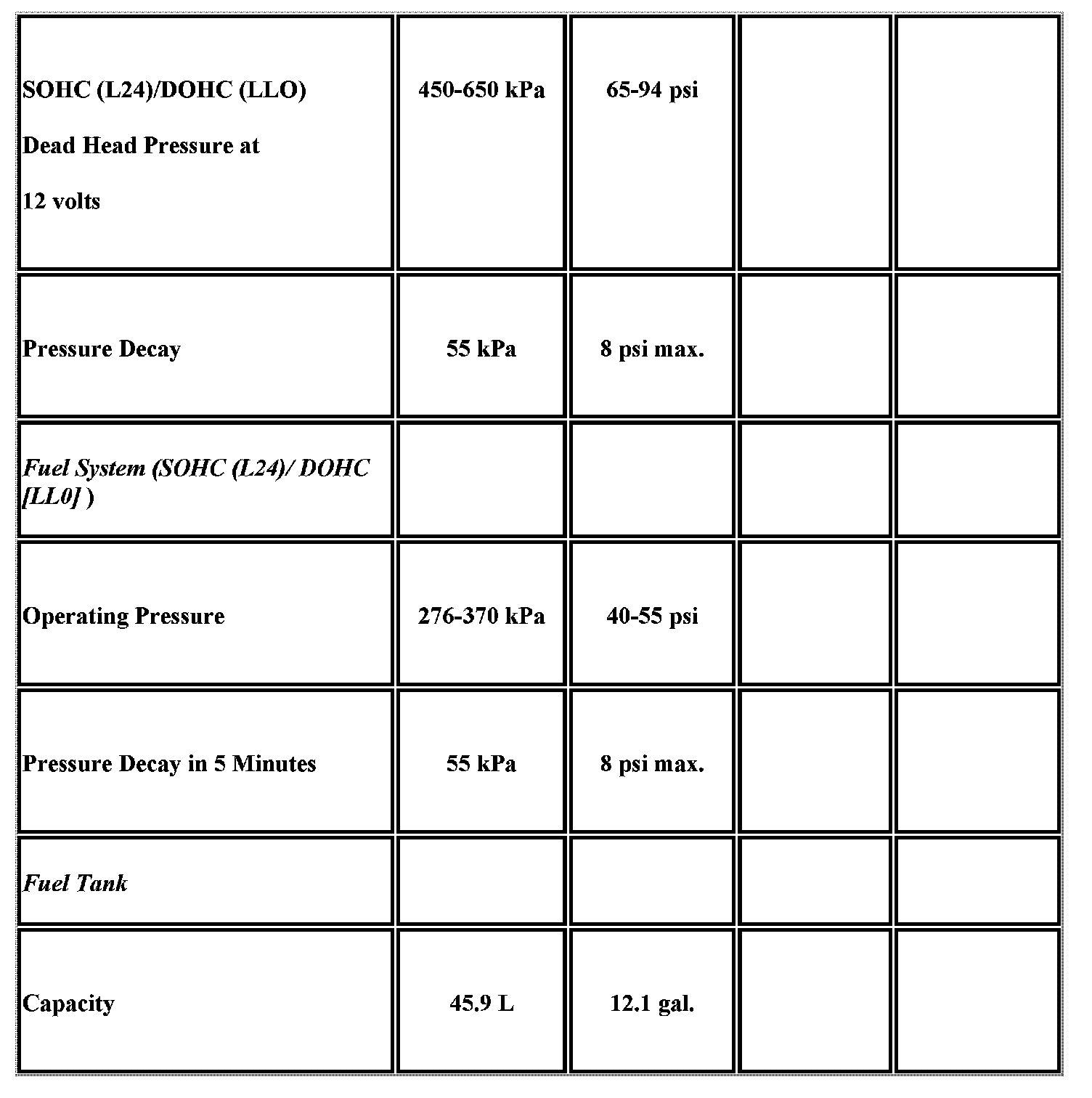

Fuel and Emission System

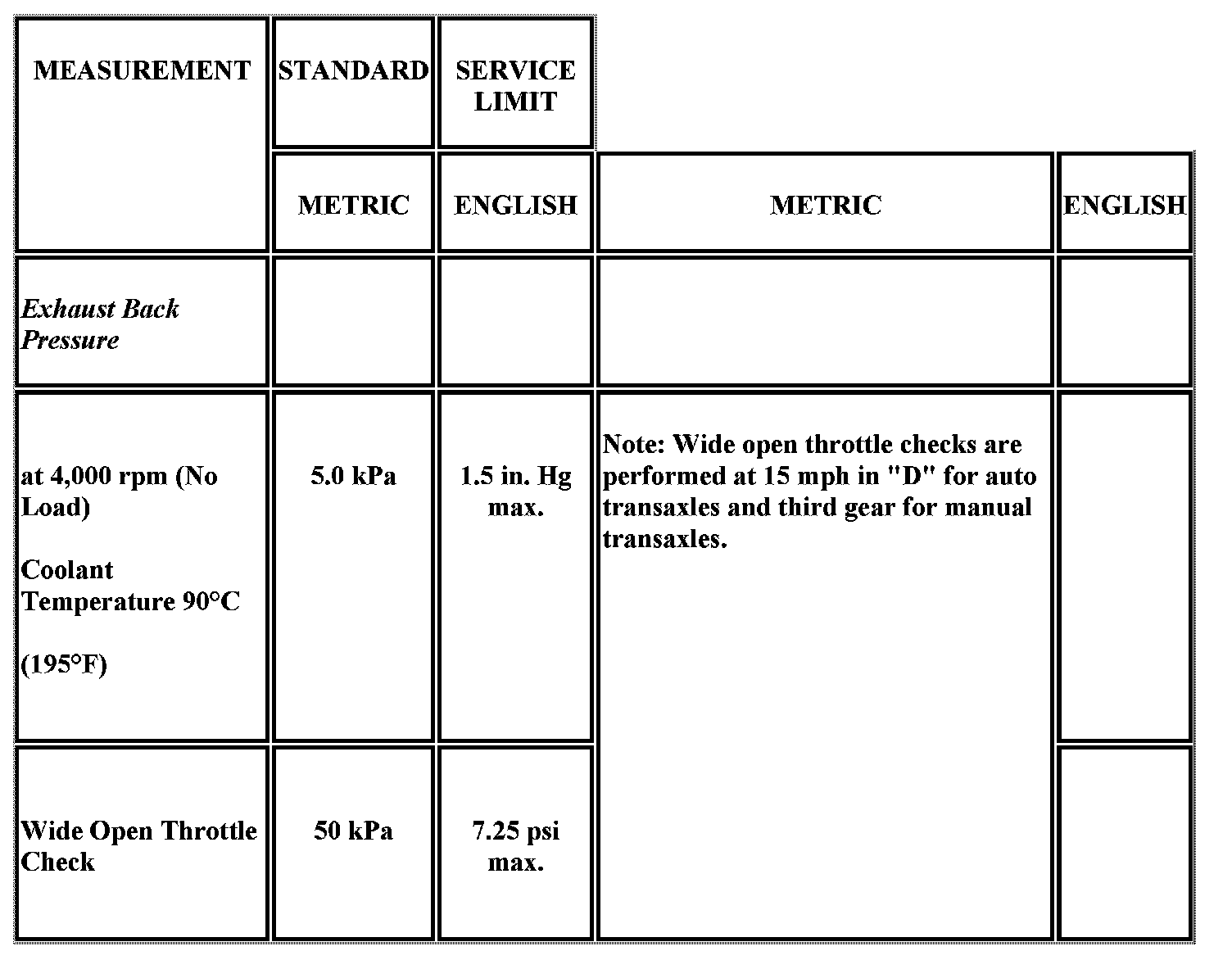

Exhaust System
