Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Oil Pan Tightening Torque and Sequence

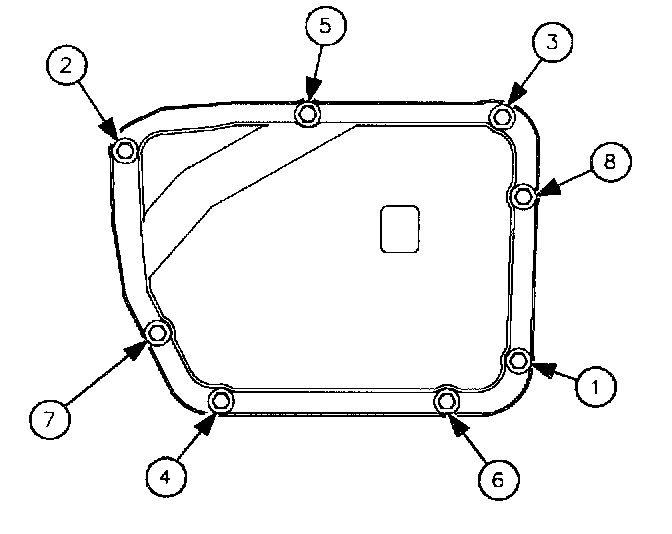

Oil Pan Tightening Torque and Sequence





Oil Pan Bolts 12 Nm (9 ft. lbs.)
