Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cruise Control >> Cruise Control Switch >> Diagrams

Cruise Control Switch: Diagrams

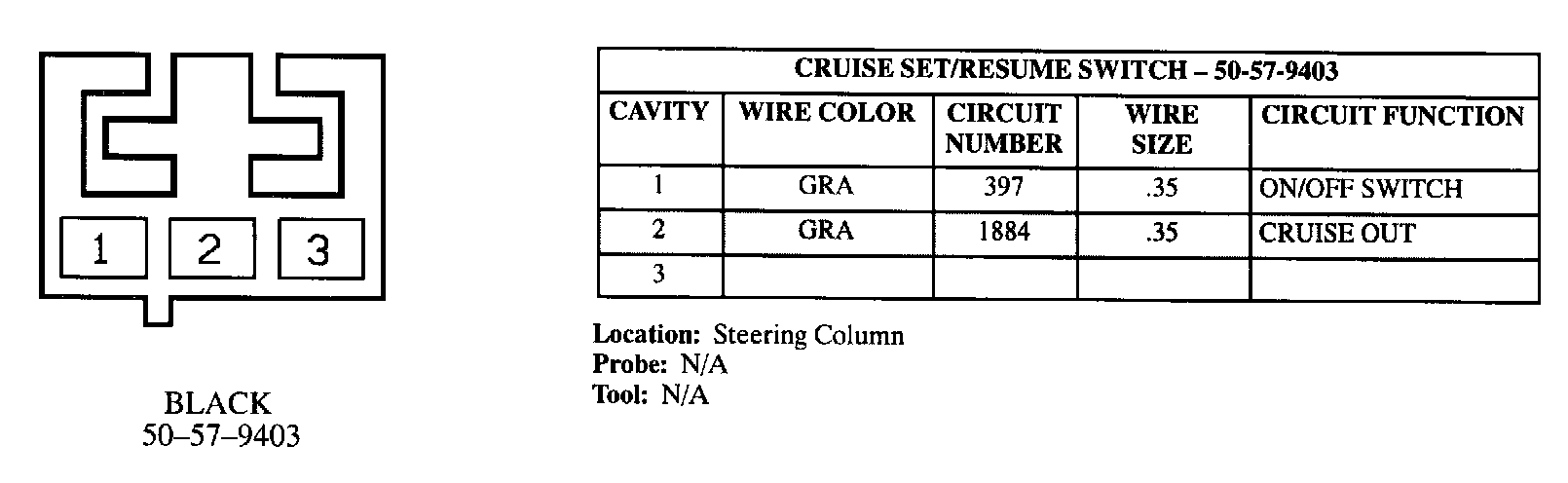

Cruise Set/Resume Switch:

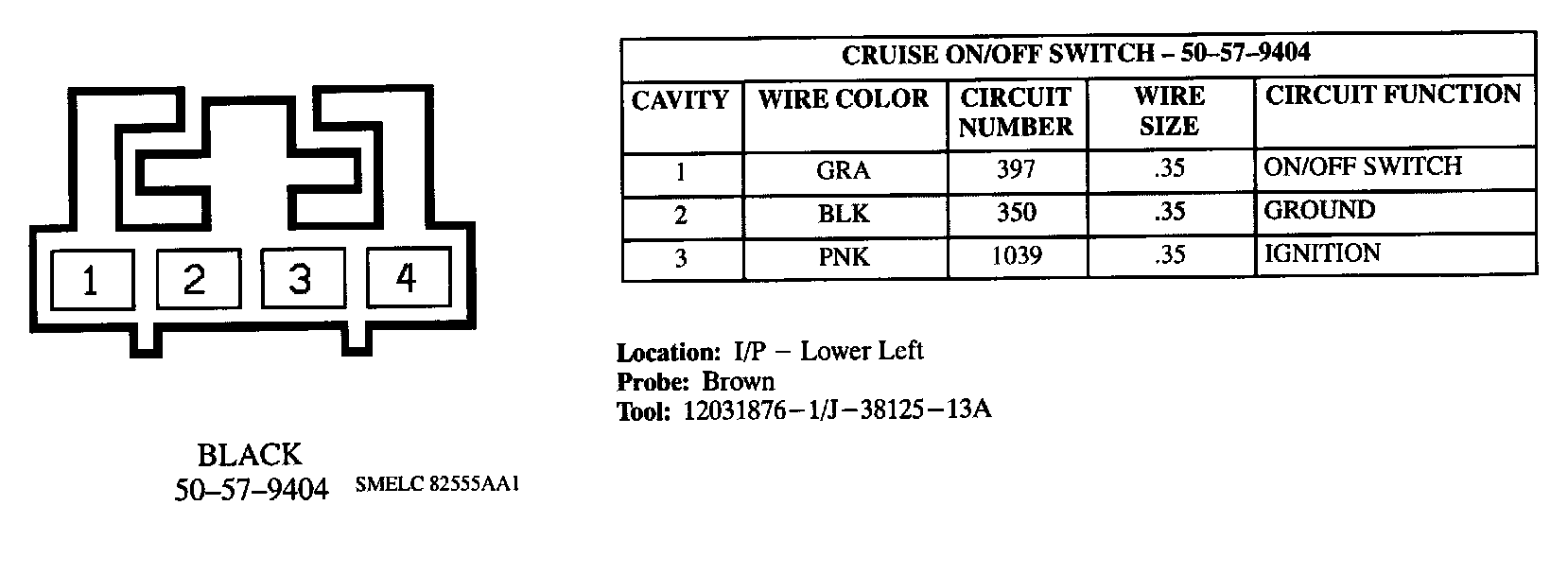

Cruise On/Off Switch:
