Trunk / Liftgate Switch: Diagrams

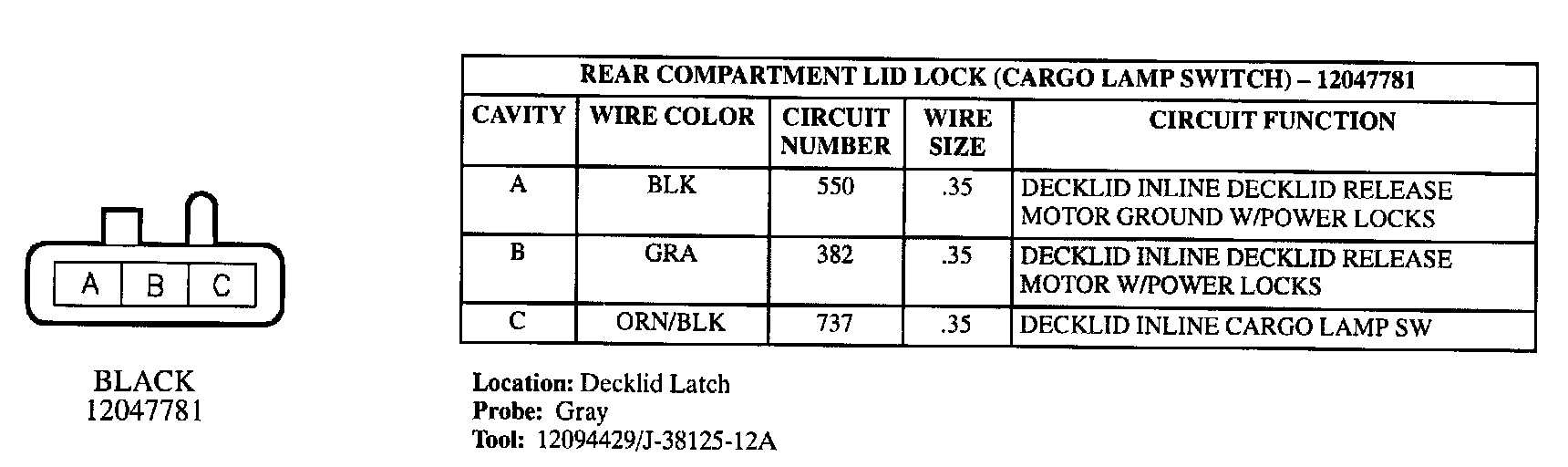

Rear Compartment Lid Lock (Cargo Lamp Switch):

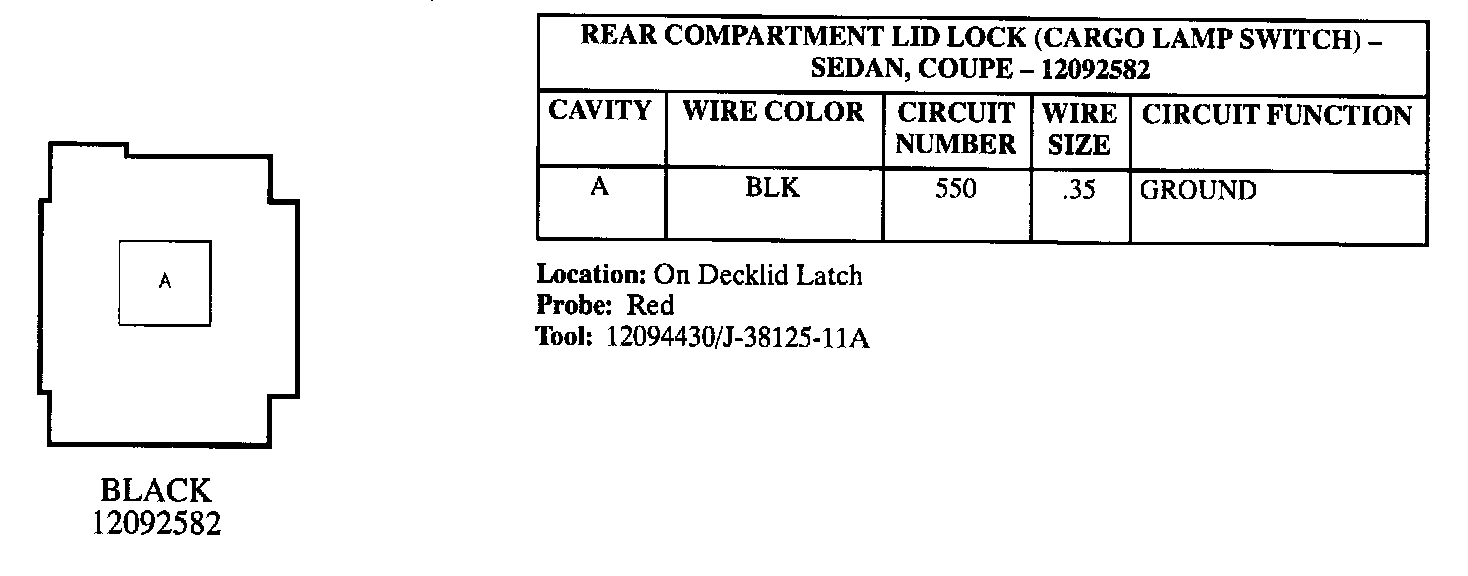

Rear Compartment Lid Lock (Cargo Lamp Switch):
