Oil Pan: Service and Repair

ENGINE OIL PAN REPLACEMENT
(With Manual Transmission)

CAUTION: MAKE SURE VEHICLE IS PROPERLY SUPPORTED AND SQUARELY POSITIONED. TO HELP AVOID PERSONAL INJURY WHEN A VEHICLE IS ON A HOIST PROVIDE ADDITIONAL SUPPORT FOR THE VEHICLE ON THE OPPOSITE END FROM WHICH COMPONENTS ARE BEING REMOVED. MAKE SURE HOIST DOES NOT CONTACT FUEL OR BRAKE LINES.






1. Remove accessory drive belt from crankshaft pulley.

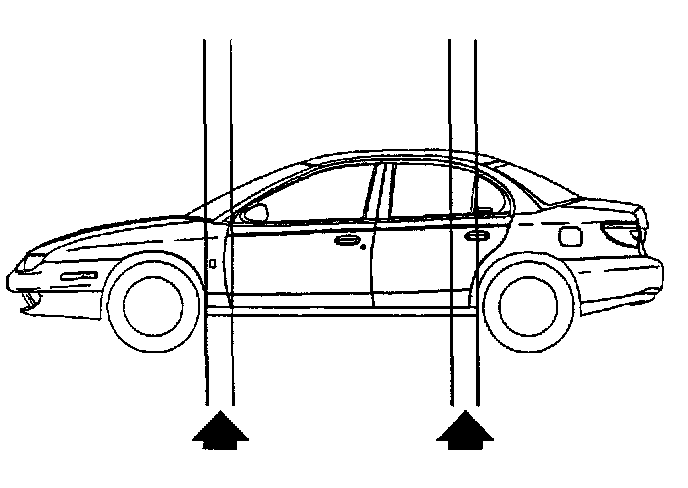

2. Raise vehicle squarely on a lift. Service and Repair

3. Remove right wheel and tire assembly.

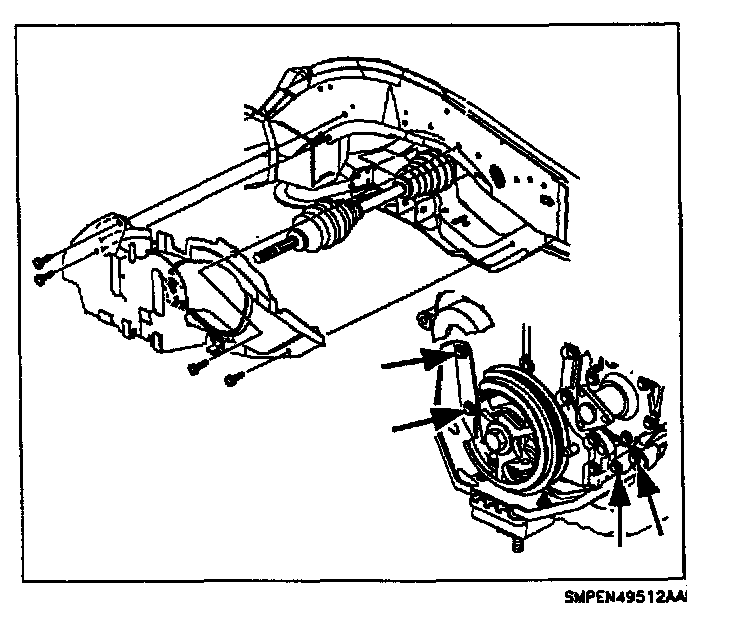

4. Remove splash shield.

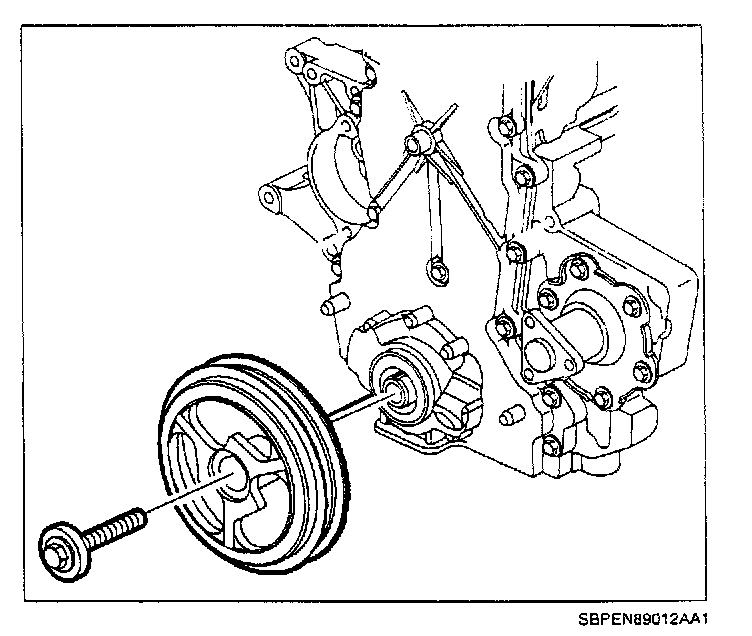

5. Remove crankshaft balancer.

6. Remove engine strut bracket.

7. Remove front exhaust pipe. Front Exhaust Pipe and Catalytic Converter






8. Remove engine stiffening bracket and transaxle inspection cover.

9. Drain engine oil.

10. Remove oil pan bolts and remove oil pan from engine.

IMPORTANT: Do not attempt to straighten or reuse the original oil pan. Replace the original oil pan with the new design.






11. When attempting to install the new oil pan P/N 21015428, minimal interference condition is likely to exist between the oil pan rail, flywheel and crankshaft bearing tie plate. To eliminate this condition, use a metal hand file to remove a small amount of material near the rear bolt hole of the oil pan. Refer to illustrations, for specific area of oil pan to modify.

NOTICE: Do not use an air driven grinder or other motorized tool. Removal of too much material may result in an oil pan leak.

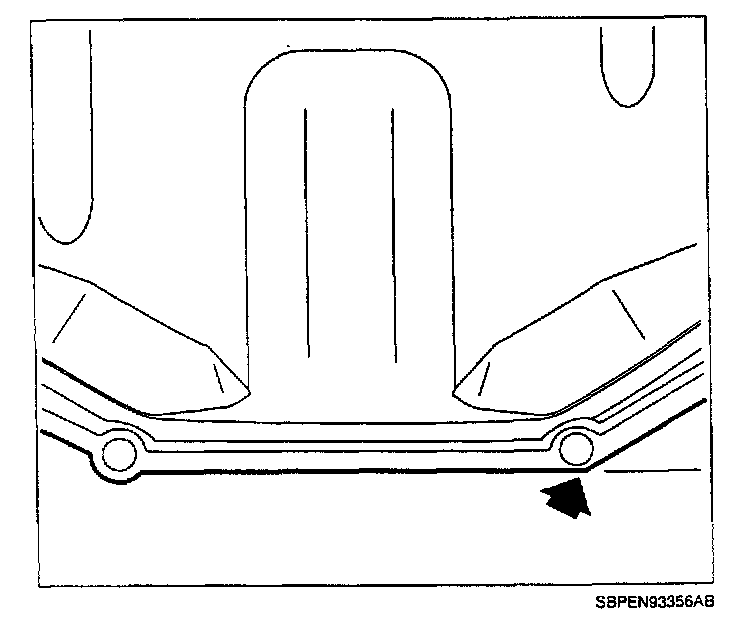

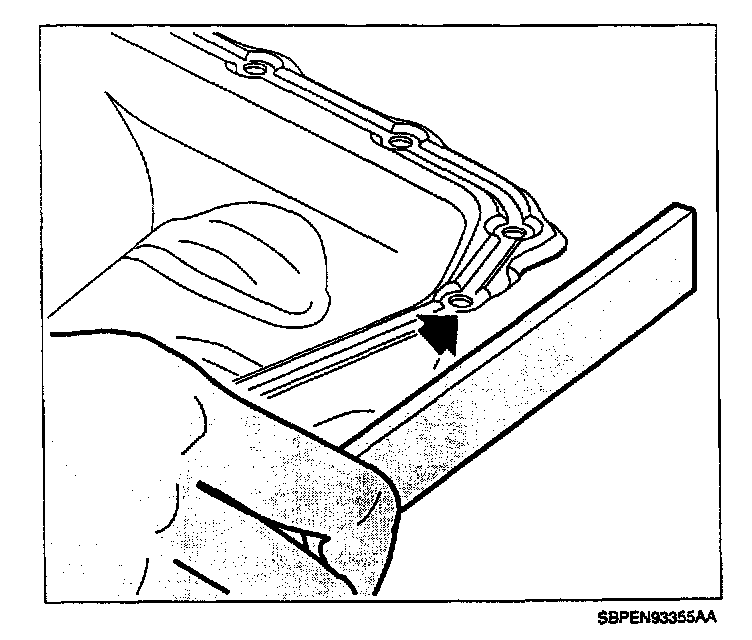

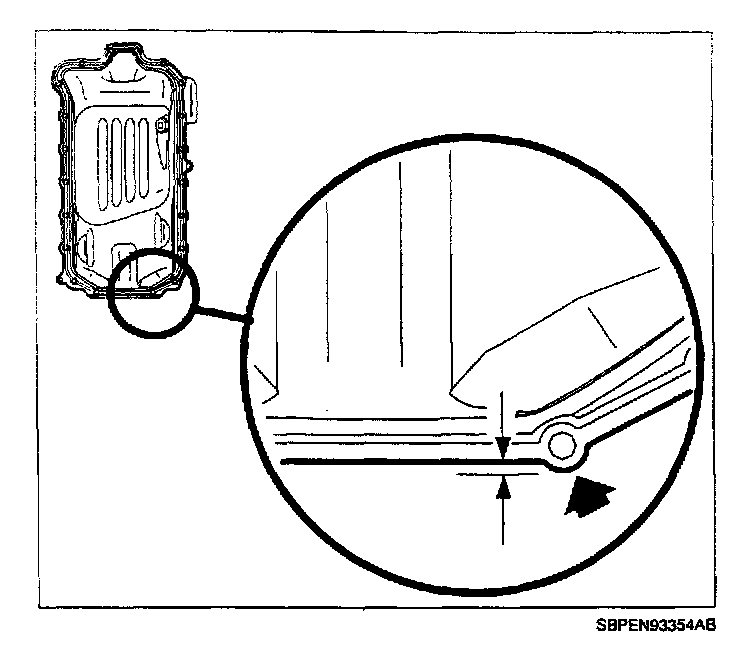

12. File oil pan at area indicated in illustrations. Remove approximately 0.5 mm (.020 in.) of material.






IMPORTANT: The final filed edge of the oil pan will appear as shown in the illustration.

13. Make sure the oil pan surface is free of cured RTV and cleaned with a chlorinated solvent, such as carburetor spray cleaner, brake clean, or alcohol Saturn P/N 21007432 (or equivalent).

IMPORTANT: Minimal c]earance exists between the oil pan, crankshaft bearing tie plate and flywheel. Therefore, it is recommended that a trial assembly be performed without RTV prior to final assembly with RTV.

IMPORTANT: Assemble while the RTV is still wet (within three minutes). Do not wait for the RTV to skin over.

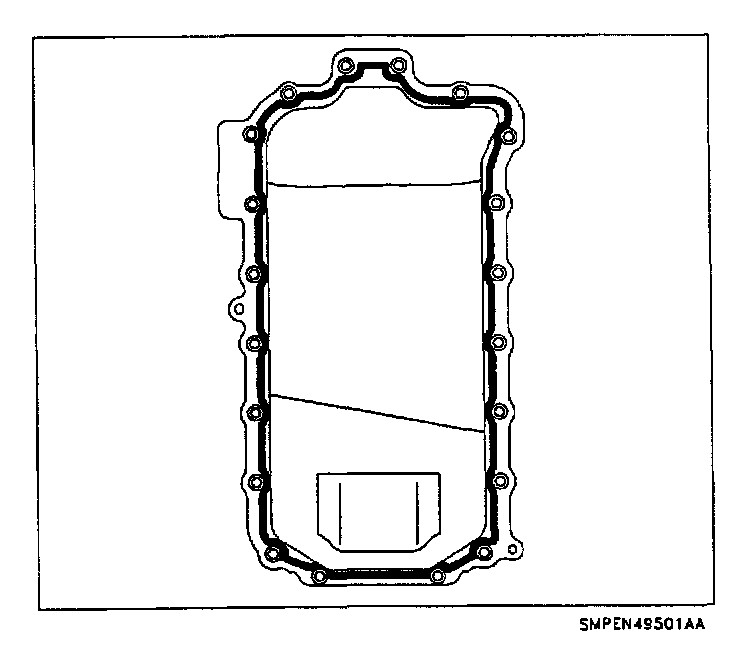

14. Apply a 4.0 mm (0.160 in.) bead of RTV in the oil pan groove, routing the RTV bead toward the inside of all bolt holes.

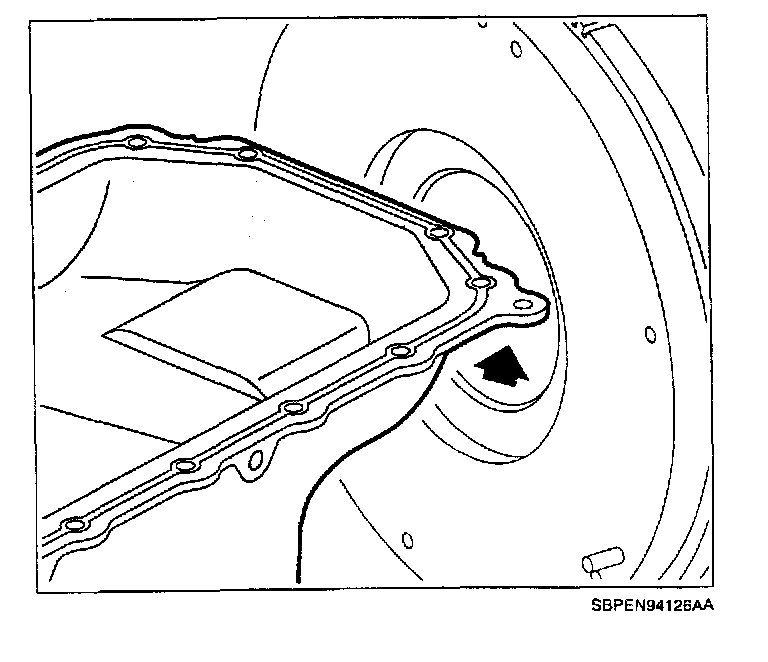

15. Install oil pan assembly by first positioning rear corner of oil pan (exhaust side) into flywheel hub and raise rear section of oil pan to engine block, then rotate front of oil pan to final assembled position.

16. Install oil pan fasteners to engine block.

Tighten
Oil Pan-to-Block Fasteners: 9 Nm (80 in. lbs.)

17. Install oil pan drain plug.

Tighten
Oil Pan Drain Plug-to-Pan: 37 Nm (27 ft. lbs.)

18. Install transaxle inspection cover.

Tighten
Transaxle Inspection Cover Fasteners: 10 Nm (89 in. lbs.)

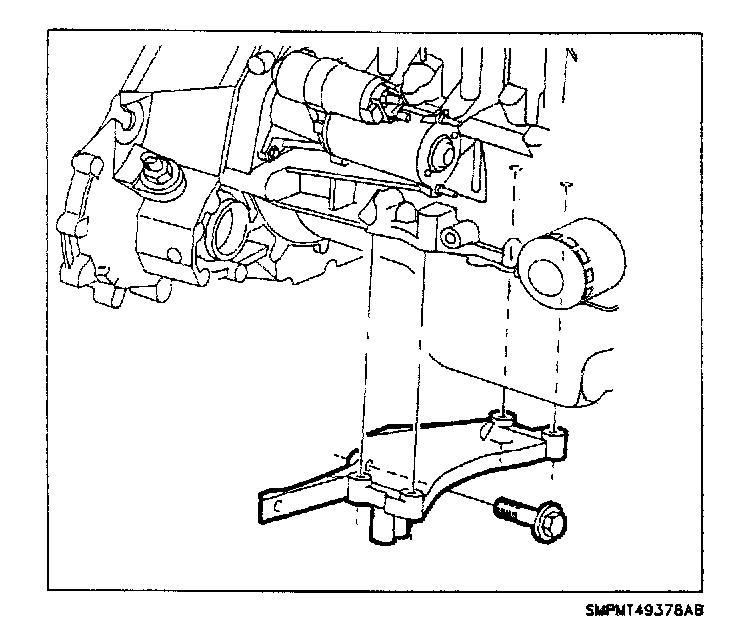

19. Install engine stiffening bracket to engine.

Tighten
Engine Stiffening Bracket Bolts: 47 Nm (35 ft. lbs.)

20. Install engine strut bracket.

Tighten
Engine Strut Bracket-to-Cradle Fasteners 50 Nm (37 ft. lbs.)

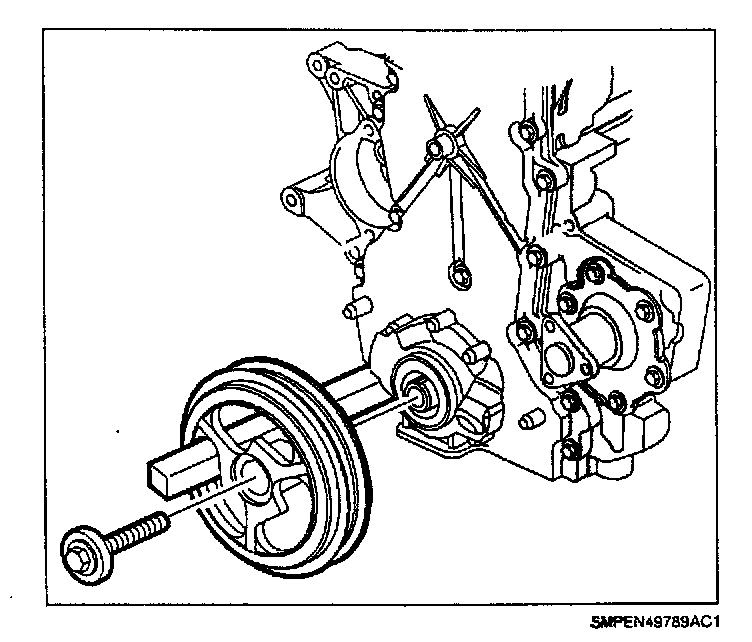

21. Install crankshaft balancer.

Tighten
Crankshaft Balancer Bolt: 215 Nm (159 ft. lbs.)

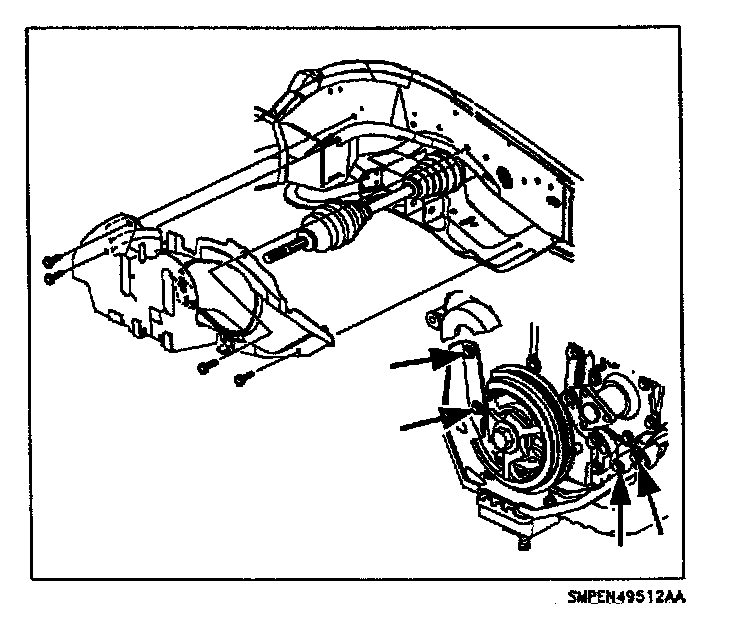

22. Install splash shield front section of shield first, then rear.

23. Install tabs in body cut-out and align holes in shield with frame holes.

24. Install push pins.

25. Install front exhaust pipe. Front Exhaust Pipe and Catalytic Converter

26. Install front wheel and tire assembly.

27. Lower Vehicle.

28. Install accessory drive belt.

29. Fill engine with recommended clean engine oil.
