Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Component Tests and General Diagnostics >> Non-Trouble Code Procedures >> Cooling System Troubleshooting Chart

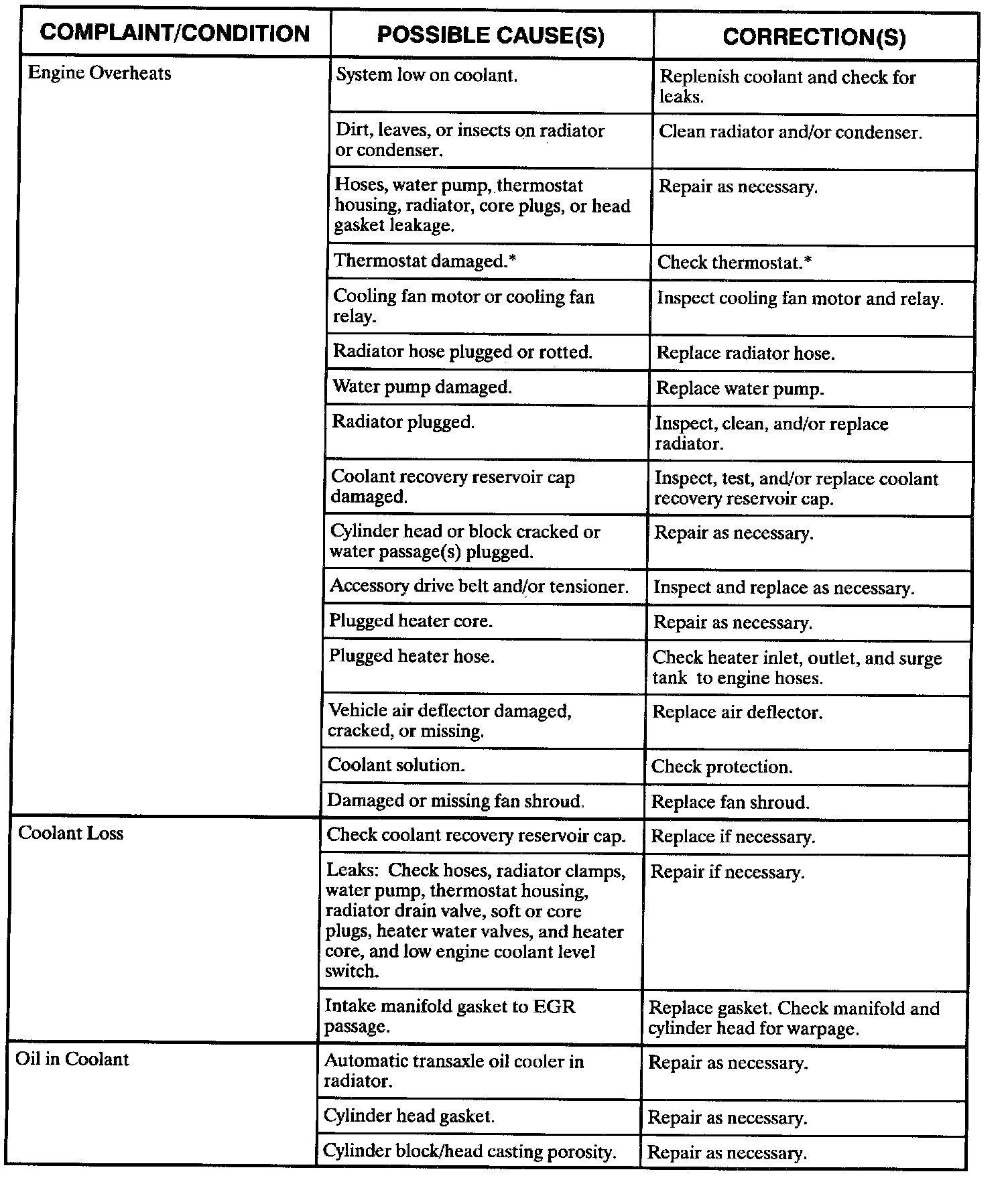

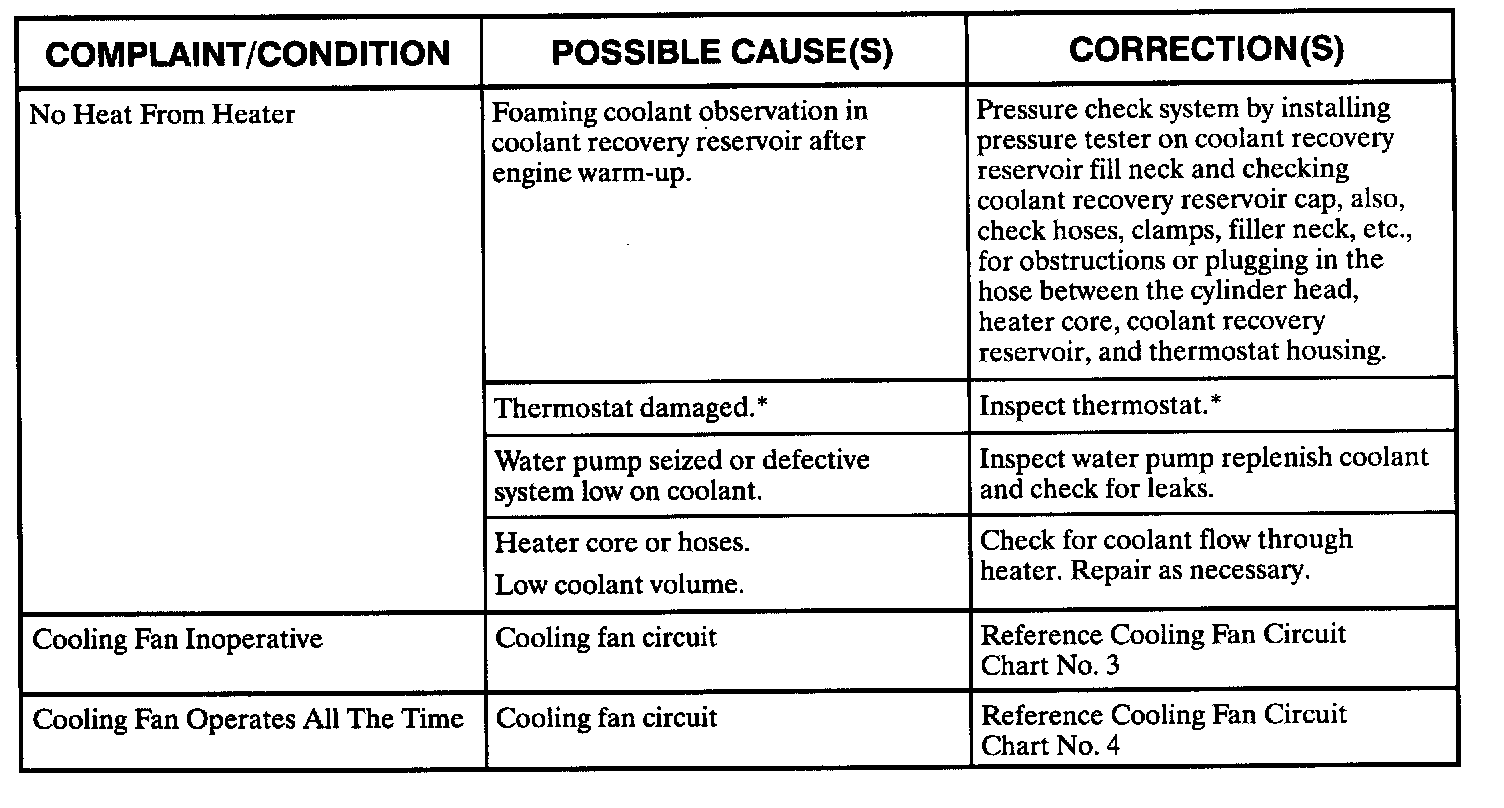

Cooling System Troubleshooting Chart
