Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator >> Radiator Drain Plug >> Service and Repair >> Removal

Removal

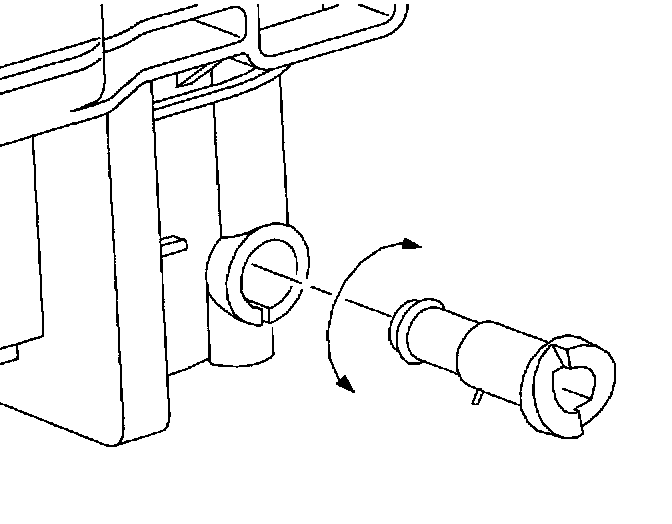

1. Unscrew drain plug.
2. Align drain plug pin with horizontal slot in radiator end tank.
3. Pull drain plug straight out.
