Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer)

Coolant Temperature Sensor/Switch (For Computer)

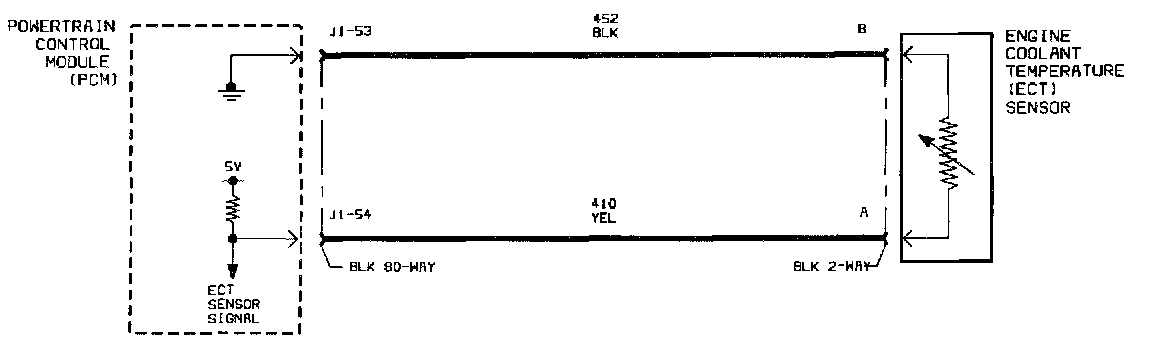

Schematic:
