Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram

System Diagram

Schematic:



Schematic:

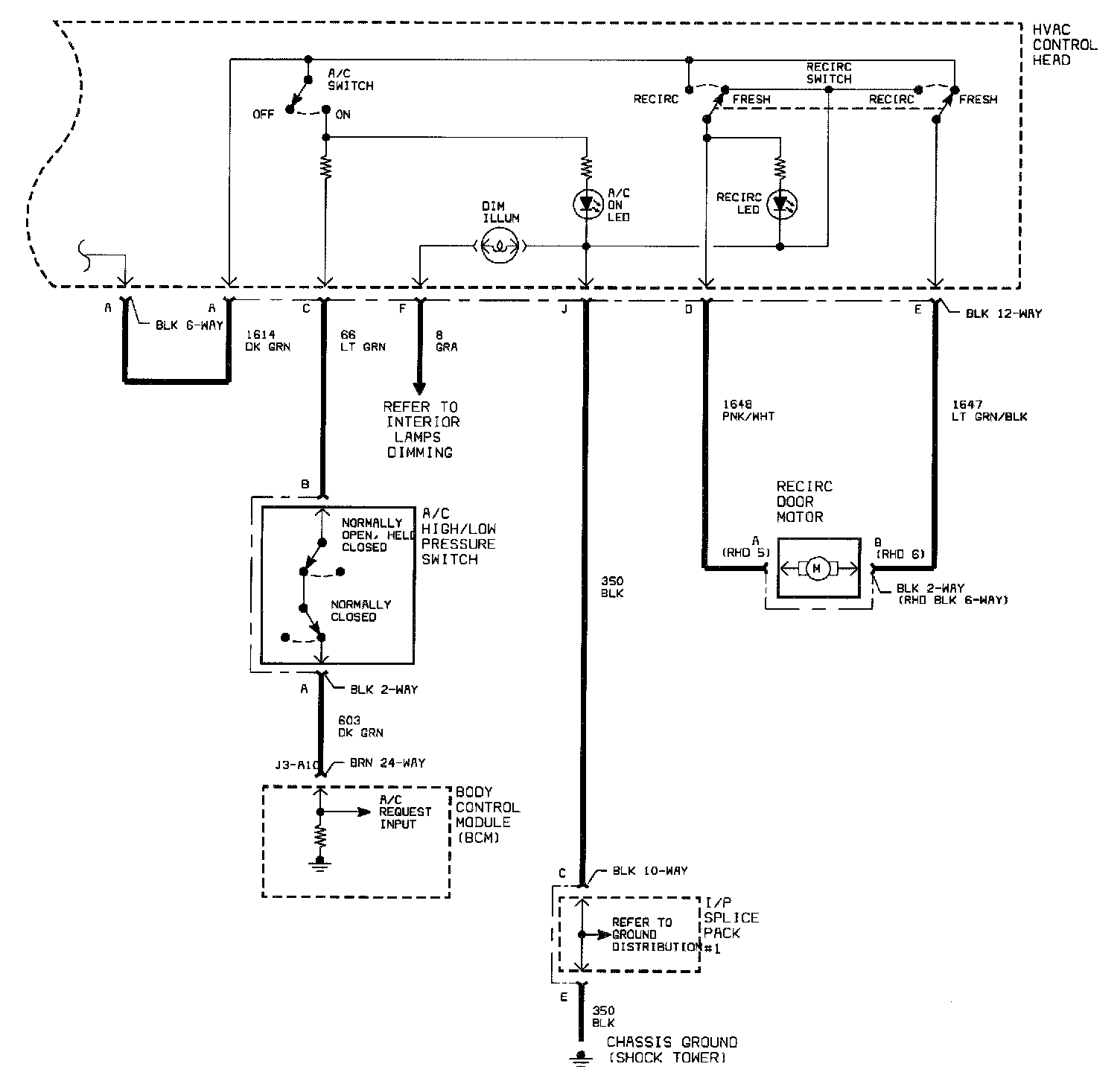

HVAC System Schematic (Part 1 Of 2):

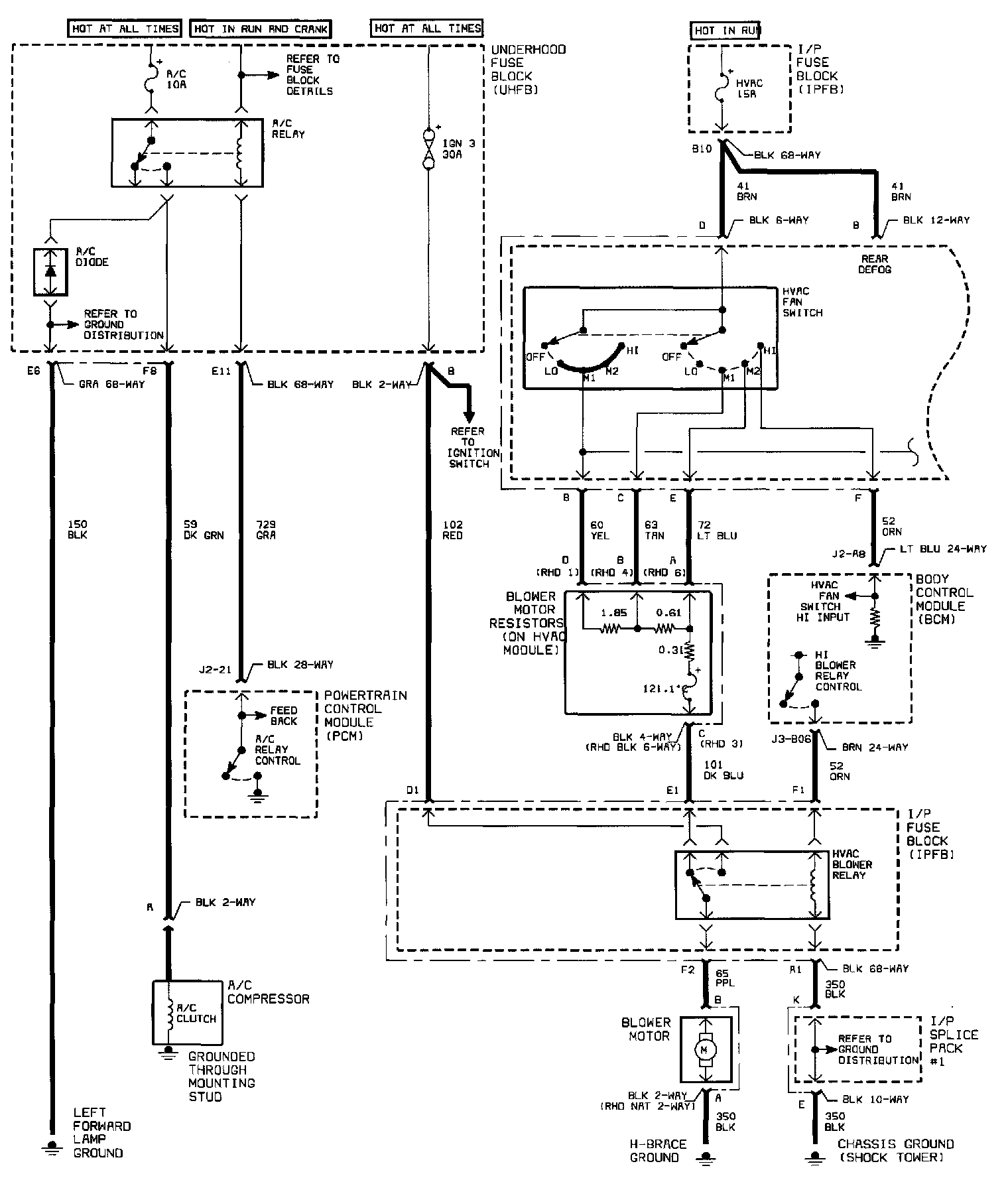

HVAC System Schematic (Part 2 Of 2):
