Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cruise Control >> System Diagram

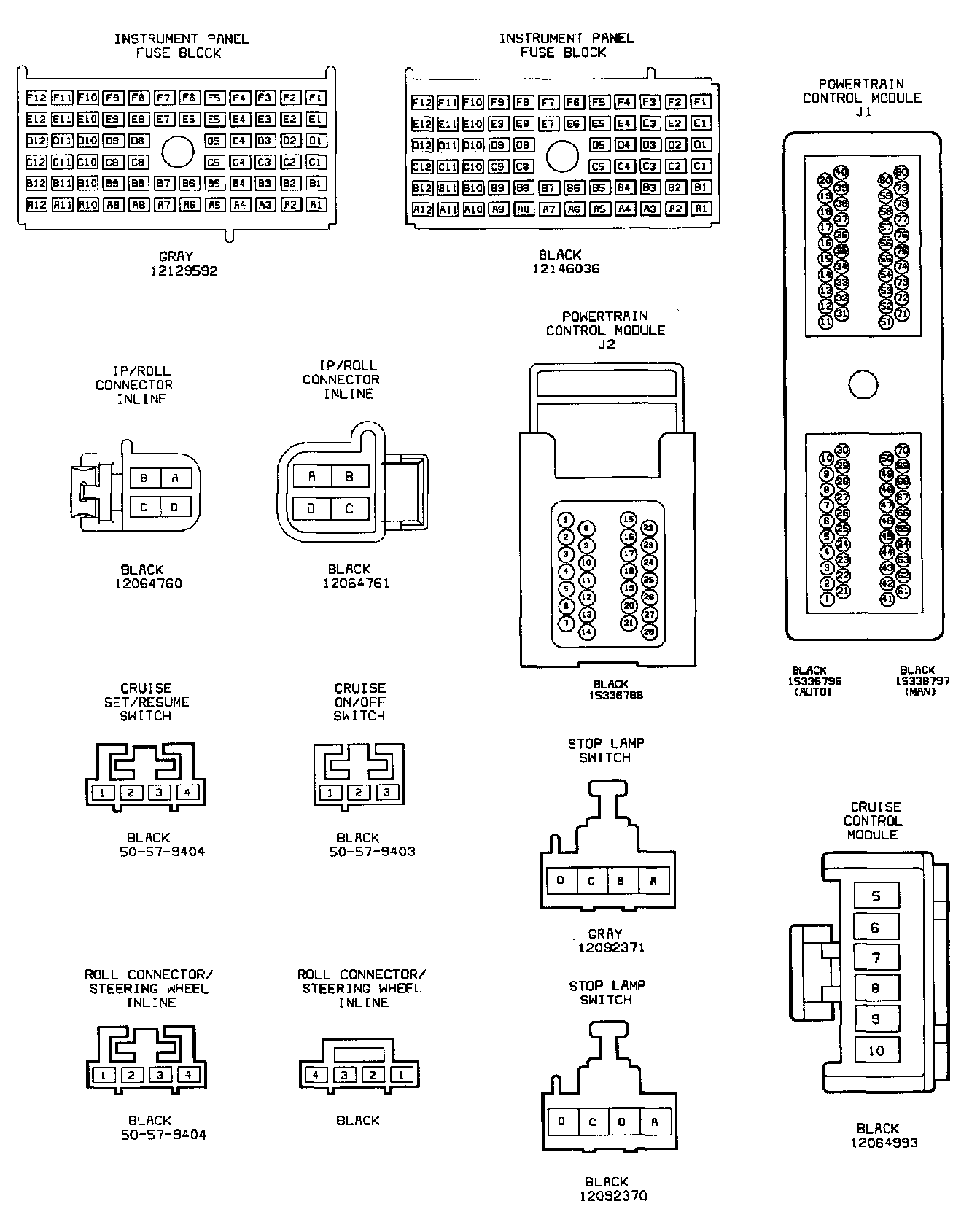

System Diagram





For Complete connector/wire information, refer to "Saturn S-Series Body/Electrical".
