Driver Inflator Coil Pigtail
Driver Inflator Coil Pigtail

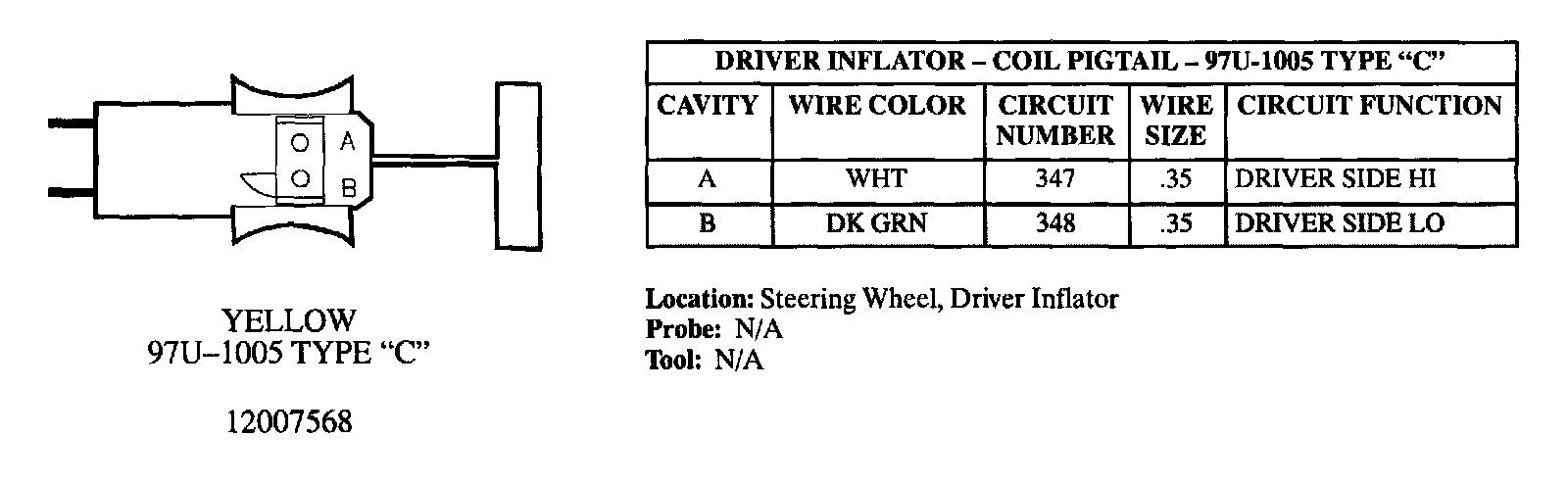

Driver Inflator - Coil Pigtail:

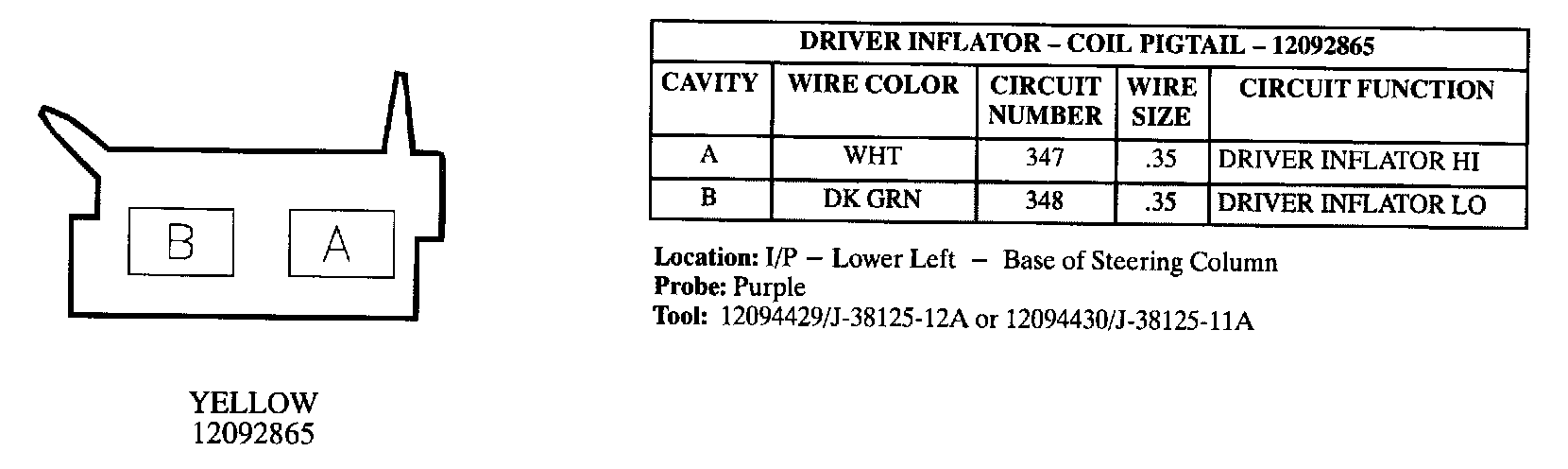

Driver Inflator - Coil Pigtail:
