Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Charts - Symptom >> Chart 1 - Sunroof Inoperable

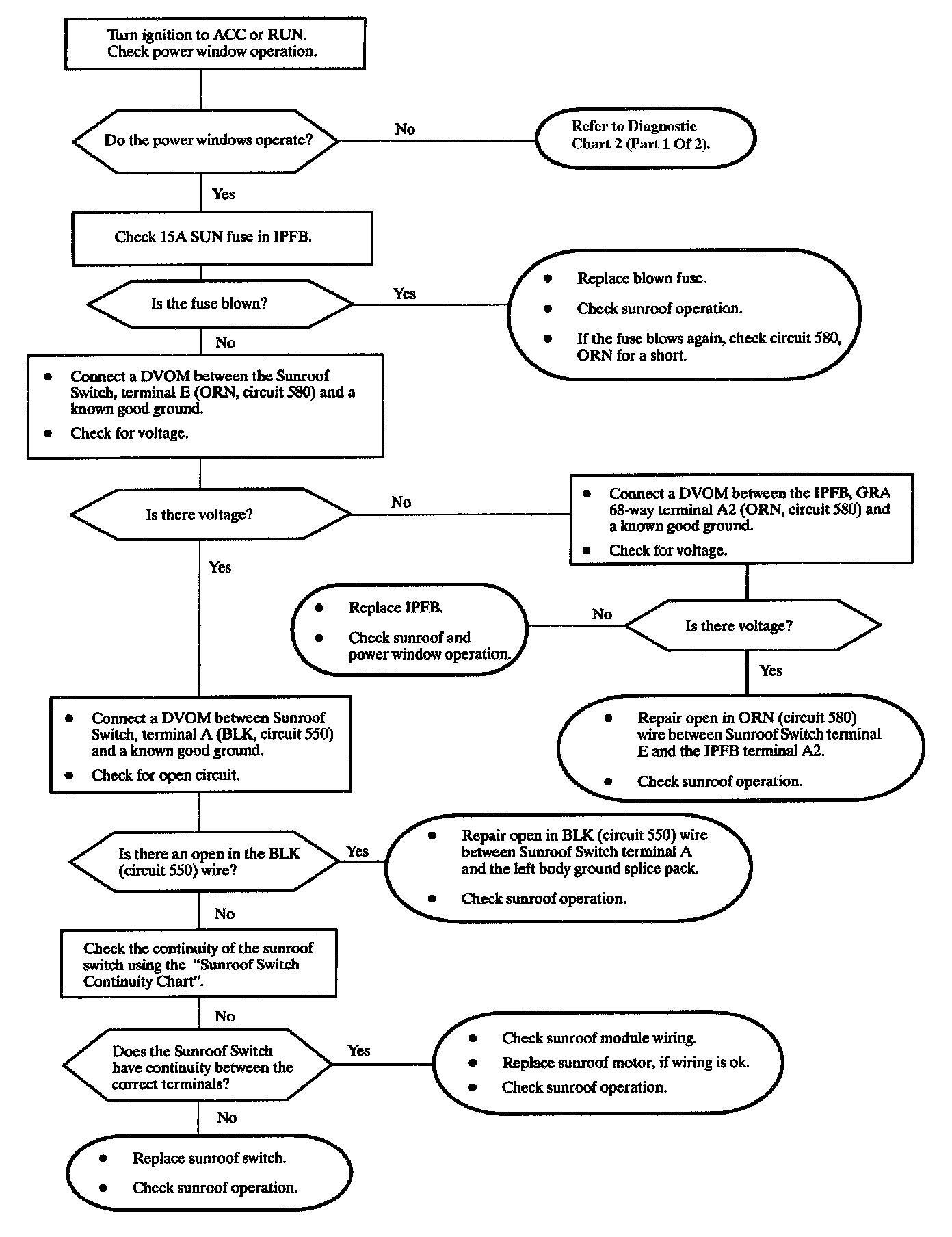

Chart 1 - Sunroof Inoperable

Diagnostic Chart 1:
