Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> - Symptom Diagnostic Charts >> Chart 1 - Both Mirrors Do Not Operate

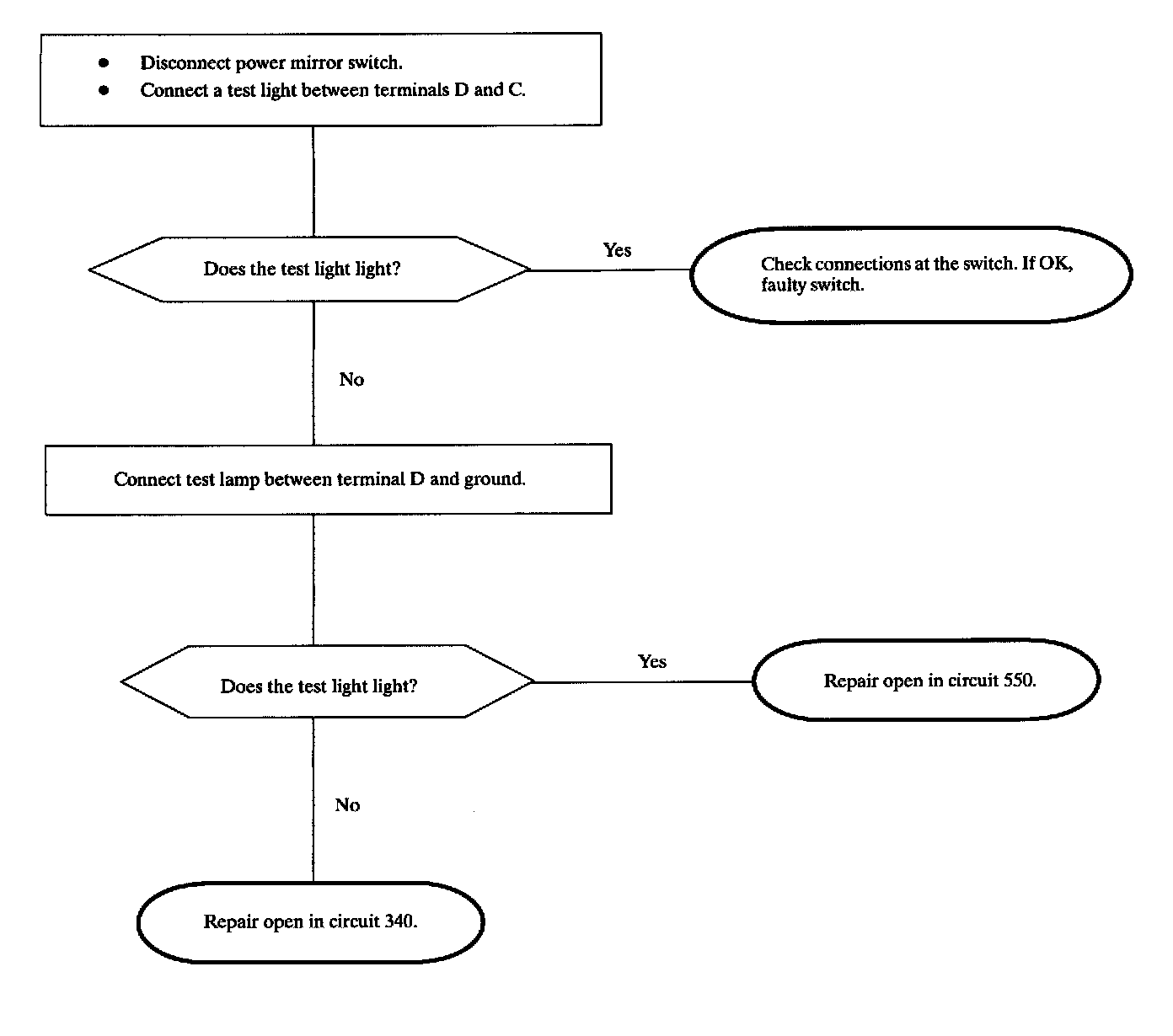

Chart 1 - Both Mirrors Do Not Operate

Diagnostic Chart 1:
