Radio Installation

IMPORTANT: Ensure that I/P harness connector, CD Changer/Player connector, antenna connector, and ground strap spade terminal are connected.

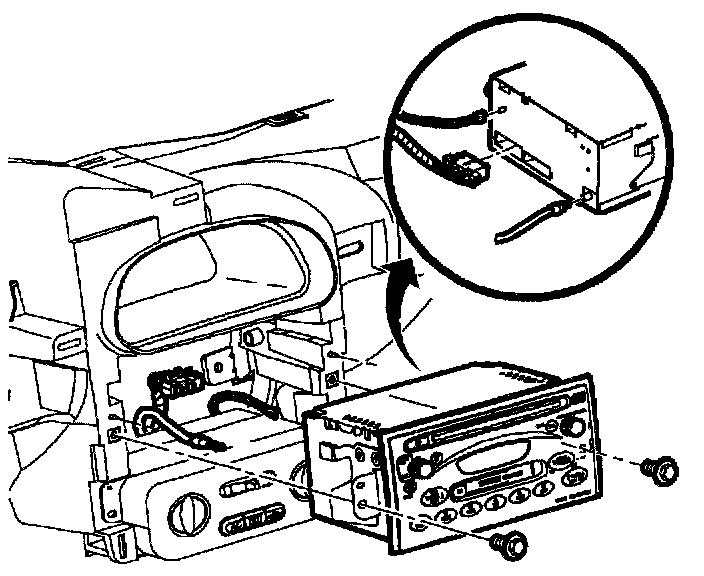

44. Install radio.

Finishing touches
45. Enable the SIR System.
46. Connect negative battery cable.
47. Test operation of CD Changer/Player (for description, operation, or for directions on loading the CD magazine with CDs and loading of CD magazine into CD Changer/Player, refer to the Audio Section of the Owner's Handbook.) If the CD Changer/Player does not operate correctly, refer to the troubleshooting portion of this audio section.
48. Set earlier recorded radio preset stations and clock time.
49. Remind customer the Theft Deterrent System is not activated and they need to reactivate it if they would like continued security.
