Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Compact Disc Player (CD) >> CD Changer >> Diagrams >> CD Jumper Inline (F) - I/P Harness

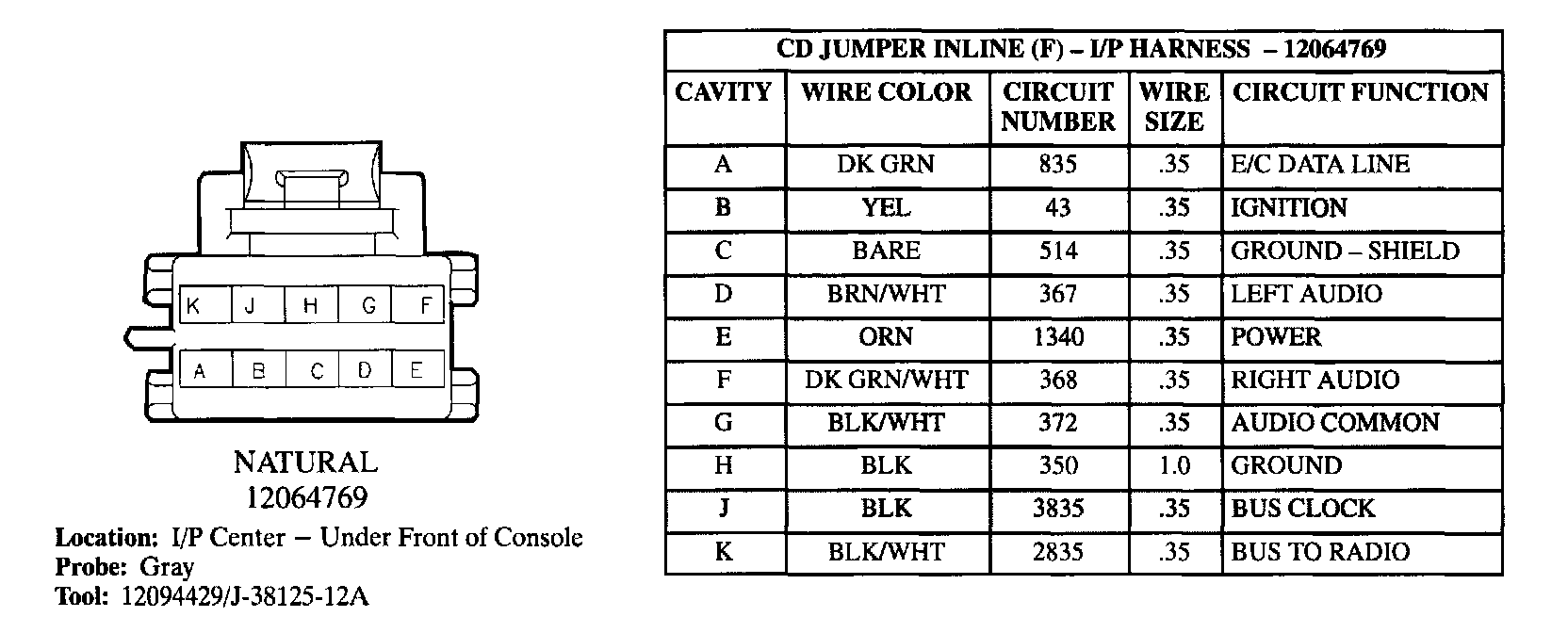

CD Jumper Inline (F) - I/P Harness

CD Jumper Inline (F) - I/P Harness:
