Chart 15 - No Horn Activation or DRL Lamp Flash When Ignition Is Turned on With Security System Armed
Chart 15 - No Horn Activation or DRL Lamp Flash When Ignition Is Turned on With Security System Armed

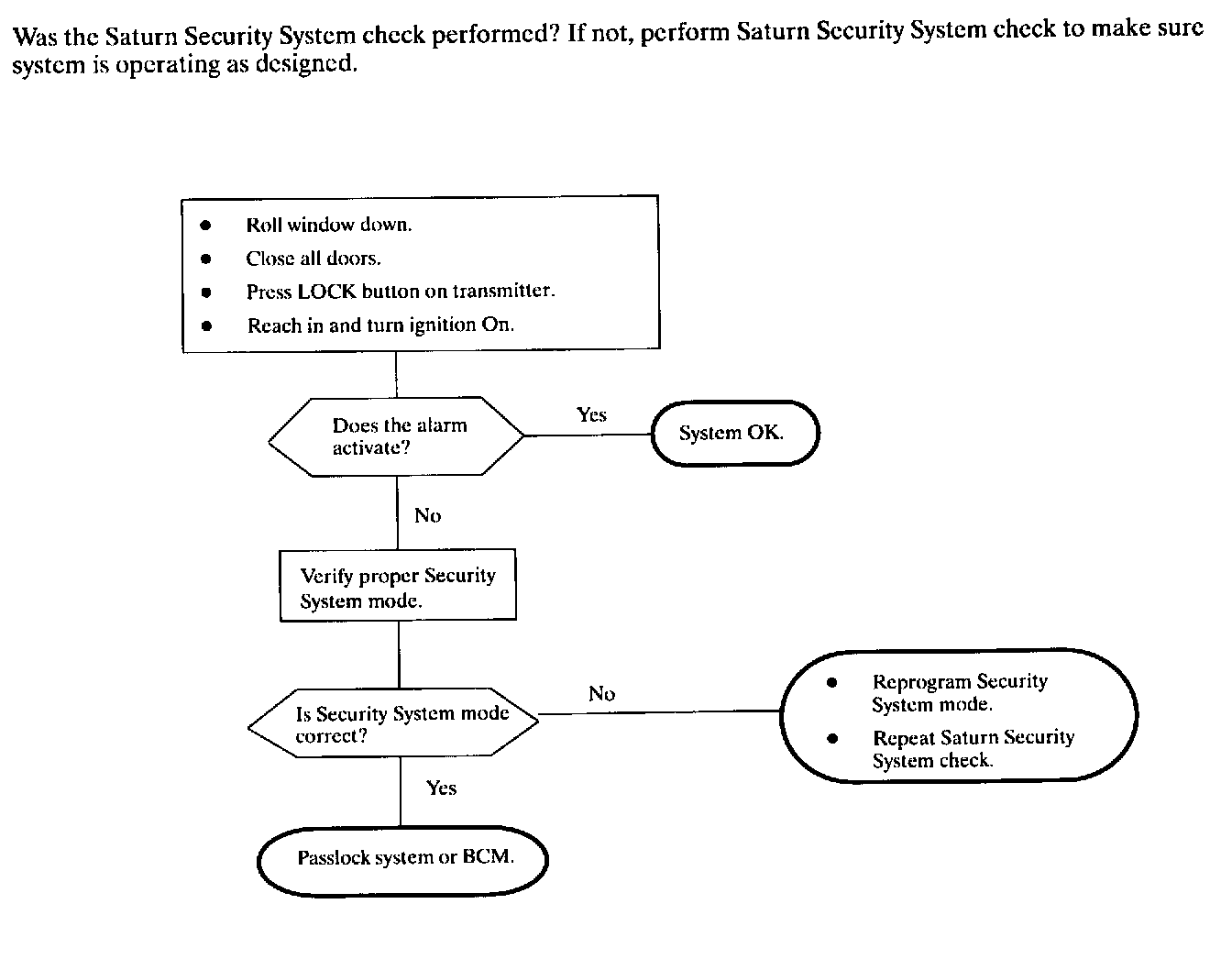

Diagnostic Chart 15:
