P0742

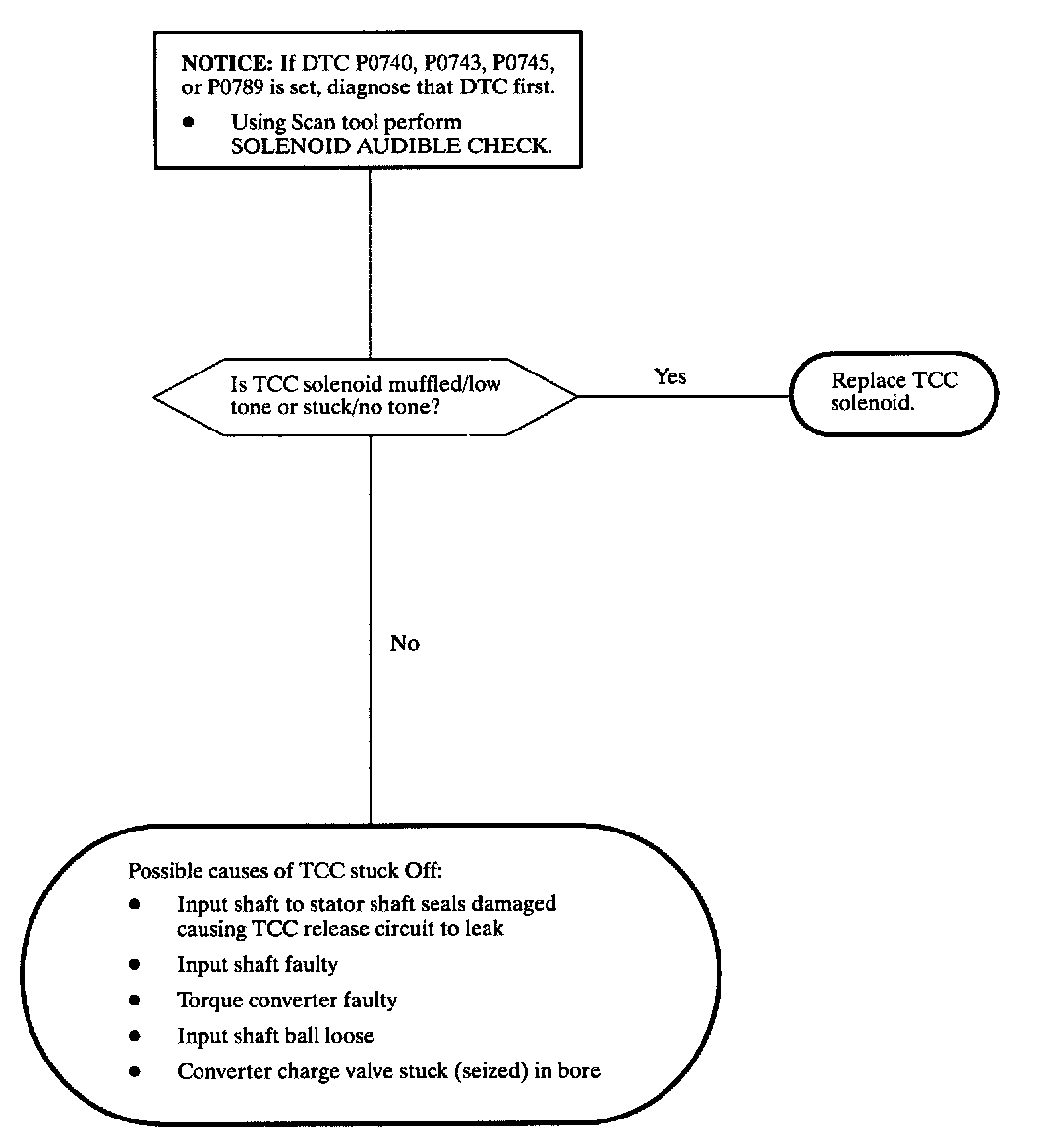

Diagnostic Chart:

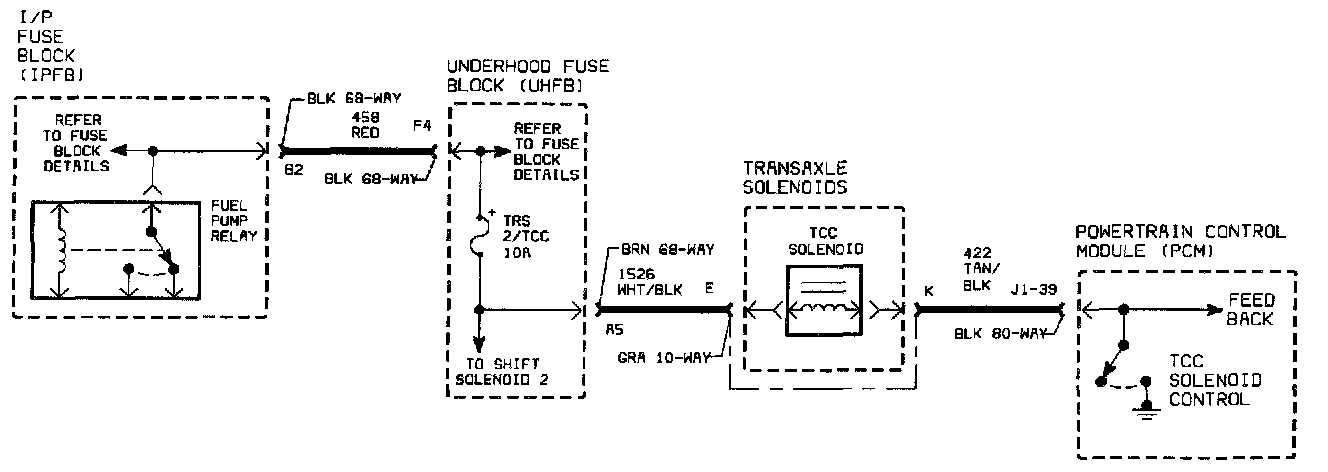

Schematic:

The Torque Converter Clutch (TCC) solenoid is used to apply and release TCC. The TCC can be applied in all forward gears. The PCM controls TCC by pulse width modulating an internal driver that pulls the solenoid circuit to ground. When the TCC solenoid is commanded On (circuit grounded), TCC is applied, which works opposite to all other four transaxle solenoids. The TCC solenoid circuit is monitored for low and high voltage faults. The PCM uses the Crankshaft Position Sensor (CKP) and transaxle input speed sensor (ISS) to calculate RPM slip across torque converter. The PCM will use this information to determine Torque Converter Clutch (TCC) slip. DTC P0742 sets when the TCC solenoid is commanded Off and engine speed equals input shaft speed, indicating TCC locked.

DTC PARAMETERS
DTC P0742 will set if speed difference across torque converter is less than 84 RPM (indicating TCC stuck On) when:
- TCC has been commanded Off for longer than 0.25 seconds
- Condition exists longer than 4 seconds
- Condition exists twice in one ignition cycle
- Engine speed is less than 3200 RPM
- Transmission ISS is between 224 and 2800 RPM
- Engine torque is greater than 100 N.m (74 ft-lbs)
- DTC P0336, P0716 or P0717 has not been set

DTC P0742 diagnostic runs continuously when the above conditions have been met.

DTC P0742 is a type A DTC.

DIAGNOSTIC AIDS

IMPORTANT: If DTC P0740, P0743, or P0789 is set, diagnose that DTC first. A diagnosed TCC solenoid circuit DTC may have caused DTC P0742 to set.

Refer to "Test Section Diagnosis" for component location and description.

Make sure TCC solenoid is not intermittently sticking. Audible sound should be similar for all solenoids. A muffled tone indicates the need for replacement.

An intermittent short to ground on circuit 422 will cause TCC to be constantly applied. Use Scan tool to command TRANS. SOLENOID POWER On, while monitoring the TCC SOLENOID - LOW VOLT or TCC SOLENOID - OPEN test. Wiggling wires while monitoring the test may locate a problem.

If TCC is stuck On, engine will stall in drive when coming to a stop. After engine has started and a drive gear is selected, transaxle will start in 3rd or 4th gear.

TCC solenoid resistance: 3.8-7.2 ohms

Nominal value: 4.5 ohms at 68°F
