P0702

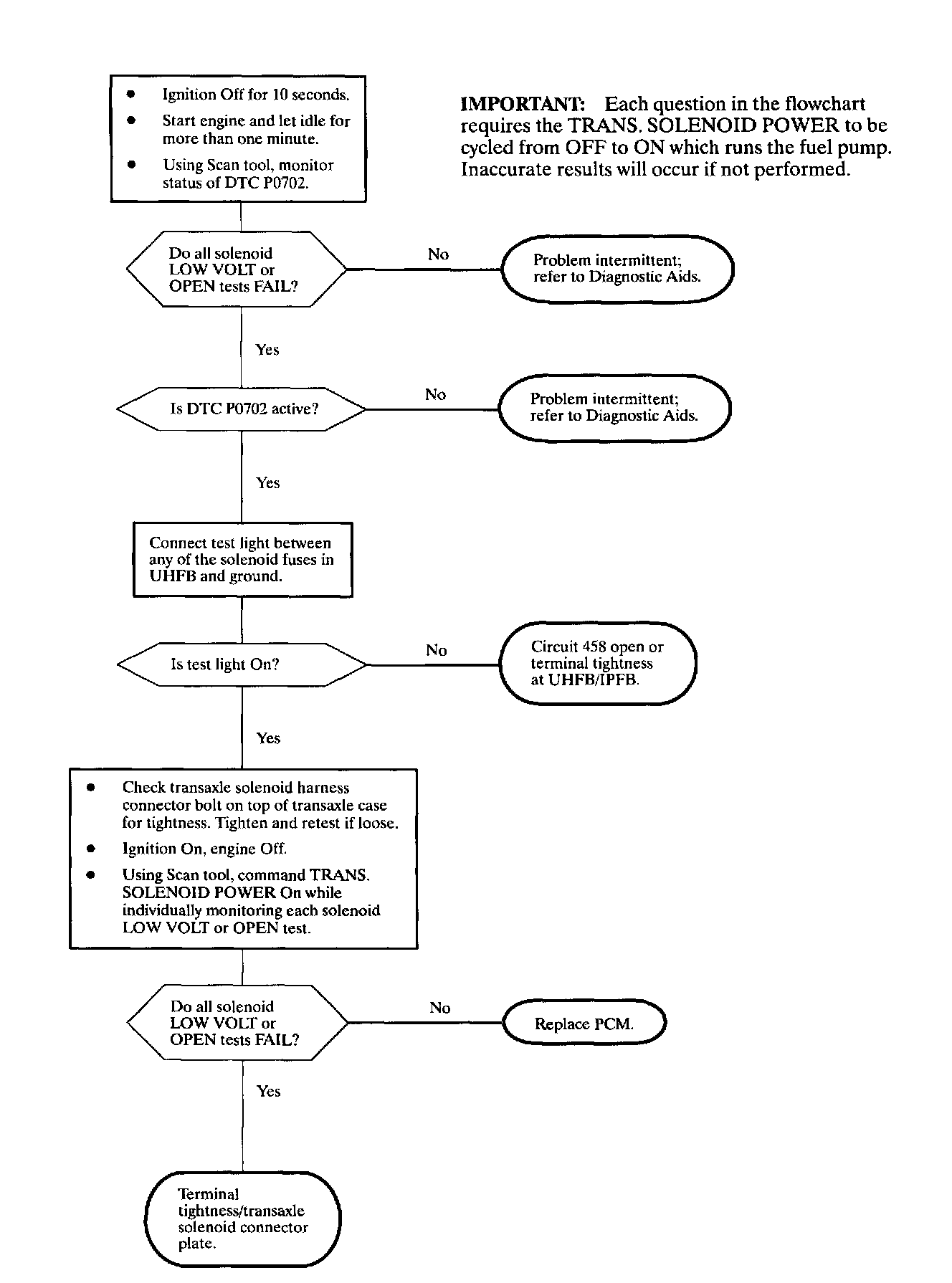

Diagnostic Chart:

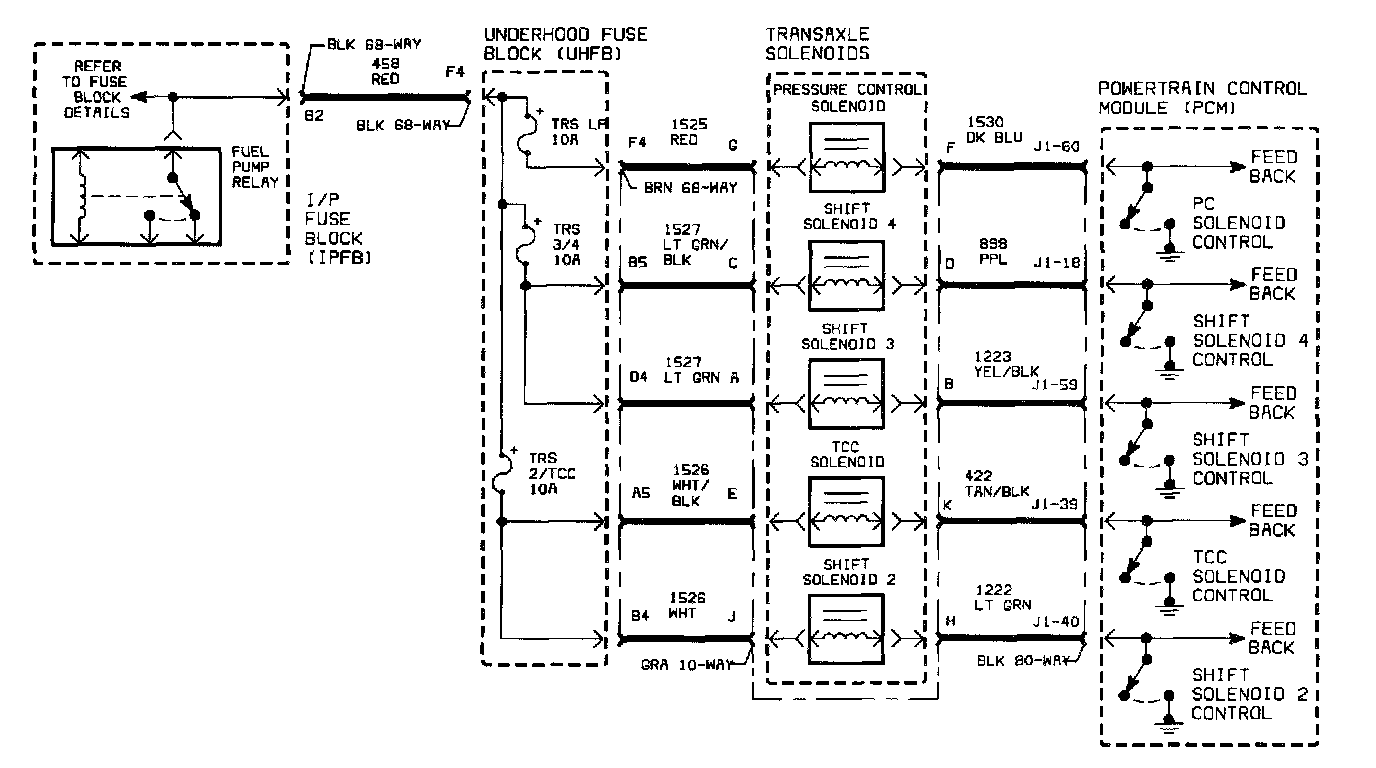

Schematic:

Each transaxle solenoid (TCC, pressure control, shift 2, shift 3 and shift 4) ground is controlled independently by the PCM. However, the PCM also controls ignition voltage simultaneously to all 5 solenoids whenever the fuel pump relay is commanded On. DTC P0702 sets when the PCM detects low feedback voltage to all 5 solenoids when the engine is running and the fuel pump relay is commanded On.

DTC PARAMETERS
DTC P0702 will set if all 5 transaxle solenoid (TCC, pressure control, shift 2, shift 3 and shift 4) feedback voltages are less than 1.25 volts when:
^ Engine run time is greater than 1 minute
^ Ignition voltage is greater than 9.5 volts

DTC P0702 diagnostic runs continuously once the above conditions have been met.

DTC P0702 is a type B DTC.

DIAGNOSTIC AIDS
To locate an intermittent problem, use Scan tool to command TRANS. SOLENOID POWER On with ignition On and engine Off. Monitor all five transaxle solenoid LOW VOLT or OPEN tests. When a fault (open or short to ground) exists causing loss of power to all solenoids, the Scan tool will display TEST FAIL for each LOW VOLT and OPEN solenoid test.

The tests will fail only when the device is being commanded Off and the voltage at the PCM is low. The tests update every 100 ms whenever the ignition is turned On and the device is being commanded Off via the Scan tool or PCM.

Check for a loose connection at the transaxle solenoids connector located on top of the transaxle.

If DTC P0702 is active, vehicle will exhibit 4th gear starts (hydraulic backup/high main line pressure).
