P0137

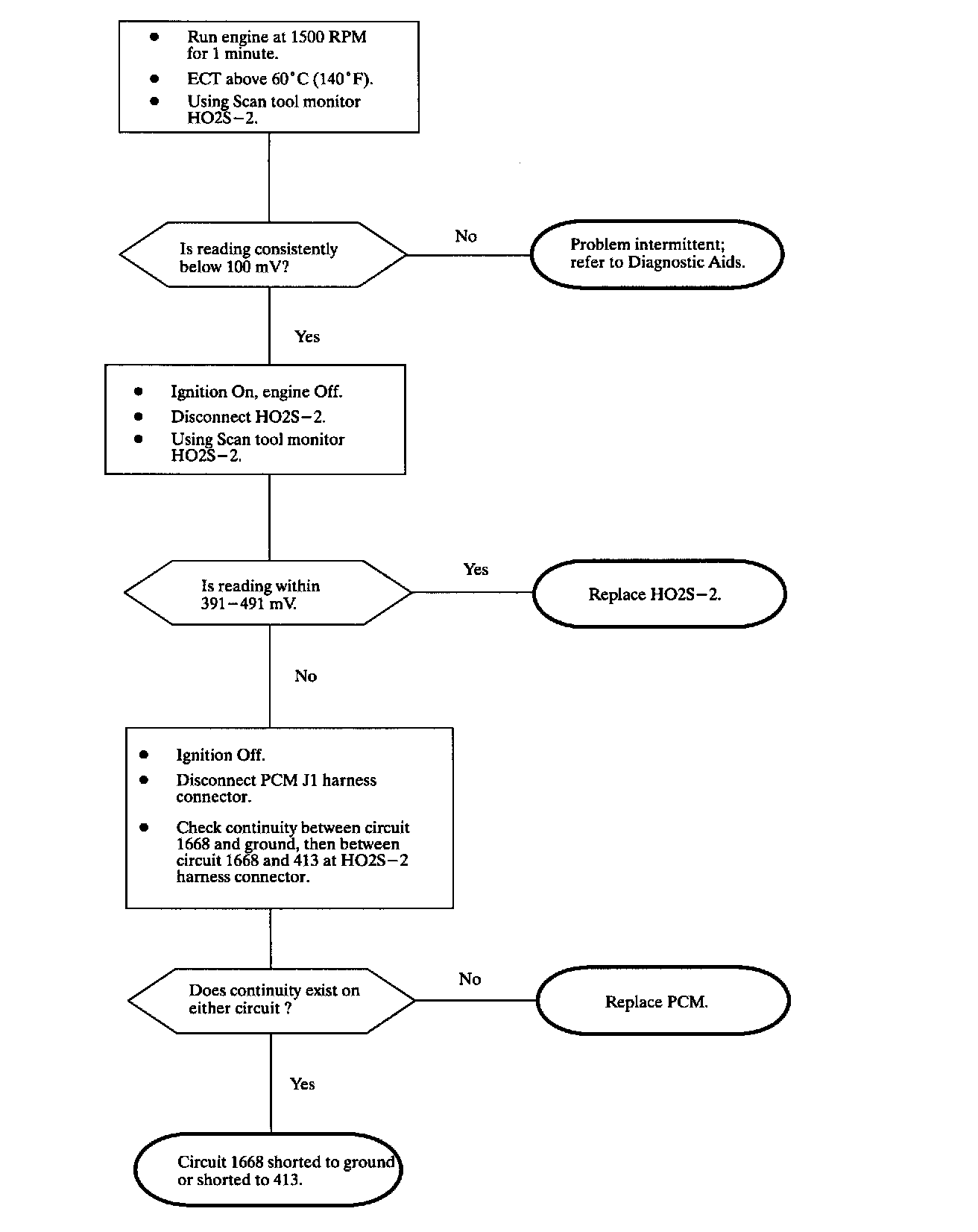

Diagnostic Chart:

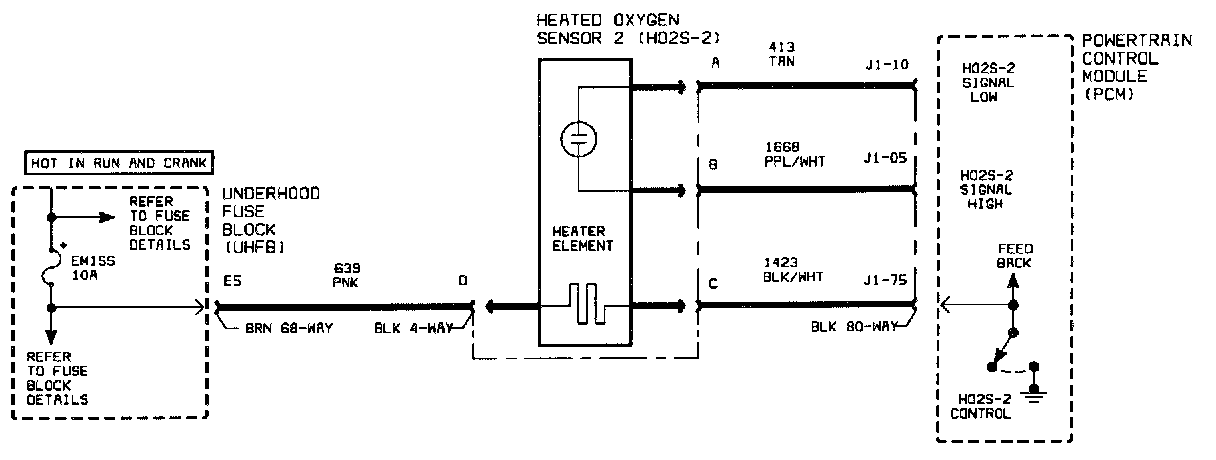

Schematic:

The Heated Oxygen Sensor 2 (HO2S-2) is an electrical source that responds to oxygen content out of the catalytic converter. When the sensor reaches approximately 316°C (600°F), it produces a voltage based on the difference in oxygen between the atmosphere and exhaust gas. The PCM sends a bias voltage (391-491 mV) on the signal line which is pulled up through high resistance. When the HO2S-2 is cold, it produces no voltage and has extremely high internal resistance. The internal resistance of the sensor is much greater than the resistance of the bias pull-up resistor. However, when the sensor heats up, it produces voltage that overrides the bias voltage. This voltage is read by the PCM to determine the efficiency of the catalytic converter. Under normal conditions, low sensor voltage means high oxygen content/lean air-fuel mixture and vice versa. Normal sensor readings at steady cruise with a properly functioning catalytic converter will be around 500-800 mV DTC P0137 sets when the HO2S-2 signal voltage is too low for a certain length of time.

DTC PARAMETERS
DTC P0137 will set if HO2S-2 voltage is less than 22 mV for 100 seconds;

OR

HO2S-2 voltage is less than 291 mV in power enrichment mode when:
^ Condition exists for longer than 9 seconds
^ Commanded air/fuel ratio is between 14.5 and 14.8 to 1
^ Loop status is closed
^ Transaxle is in gear (A/T only)
^ No cam, CKP, ECT, EGR, EVAP purge solenoid, fuel trim, IAT, MAP, misfire or TP sensor DTCs have been set.

DTC P0137 diagnostic runs continuously once the above conditions have been met.

DTC P0137 is a type B DTC.

DIAGNOSTIC AIDS
To locate an intermittent problem, use Scan tool to monitor HO2S-2 voltage with engine idling at normal operating temperature. Wiggling wires while watching for a change in HO2S-2 voltage may locate the area where a short to ground in the wiring could lie.

If an O2S-1 DTC and a HO2S-2 DTC are set, diagnose the O2S-1 DTC first. A diagnosed O2S-1 DTC may lead to a lean engine running condition which set the HO2S-2 DTC.

Review Failure Record information to check if the vehicle was running lean in power enrichment (TP angle >75%, O2S-1 voltage below 300 mV) at time the DTC set. If this was the case, check for a possible lean condition.
