P0122

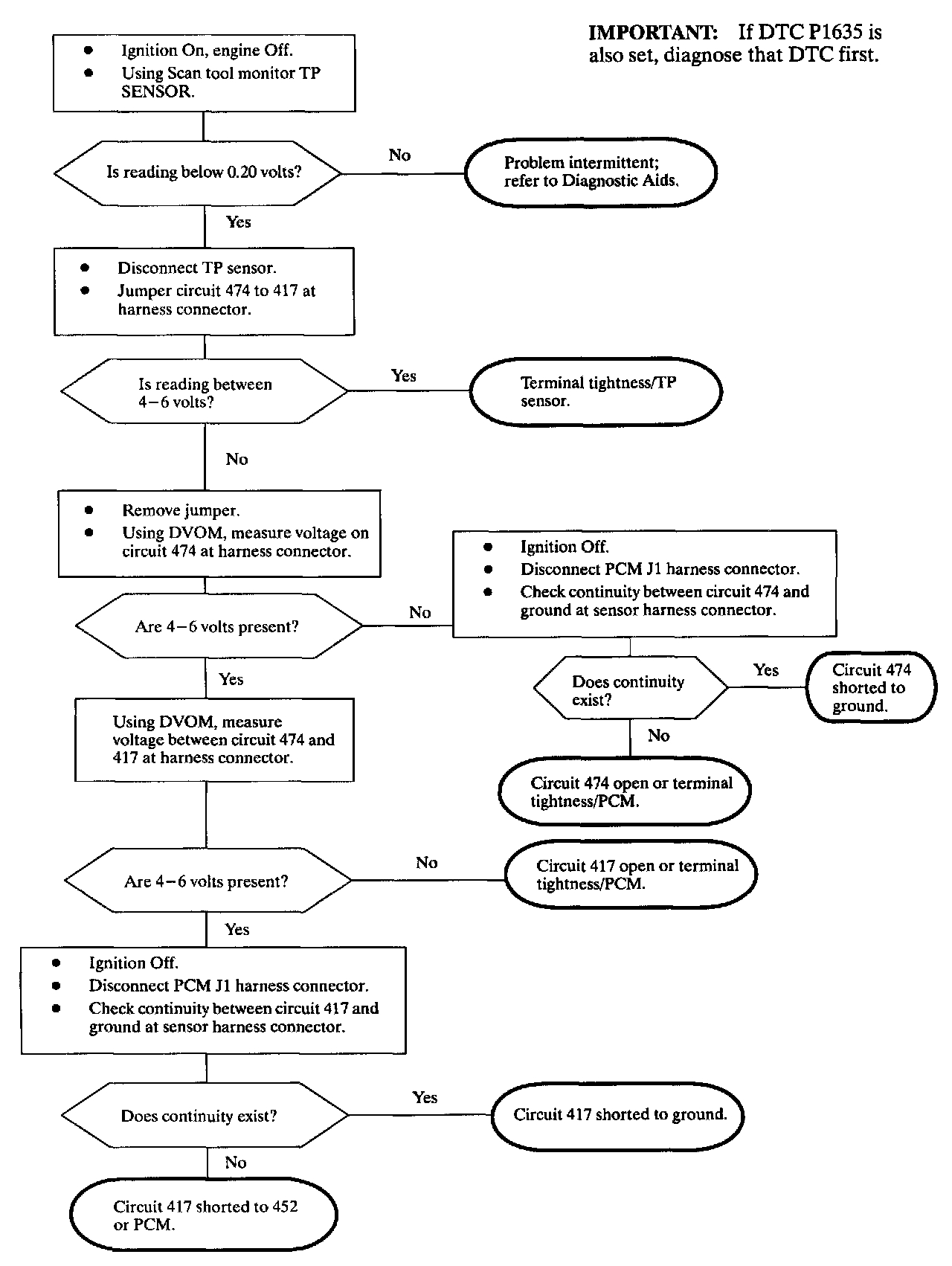

Diagnostic Chart:

Schematic:

The Throttle Position (TP) sensor is a potentiometer that varies resistance according to changes in throttle plate position. The PCM measures the signal voltage from the TP sensor which is a reduced value of the PCM 5 volt reference. The voltage ranges from 0.4 (±0.2) volts at 0% throttle position to 4.7 volts at wide open throttle. DTC P0122 sets when the TP sensor signal voltage at the PCM is below the calibrated voltage value.

DTC PARAMETERS
DTC P0122 will set if TP sensor voltage is less than 0.2 volts with ignition On.

DTC P0122 diagnostic runs continuously with ignition On.

DTC P0122 is a type A DTC.

DIAGNOSTIC AIDS
To locate an intermittent problem, use Scan tool to monitor TP SENSOR voltage with ignition On, engine Off. Wiggling wires while watching for a change in TP SENSOR voltage may locate the area where an open or short to ground in the wiring could lie.

An intermittent open in the TP SENSOR can cause this DTC to set. Use the Scan tool to monitor TP SENSOR as the accelerator pedal is slowly depressed.

The voltage should change smoothly from 0.4 volts at 0% throttle, to 4.7 volts at wide open throttle (±0.2 volts).
