P0113

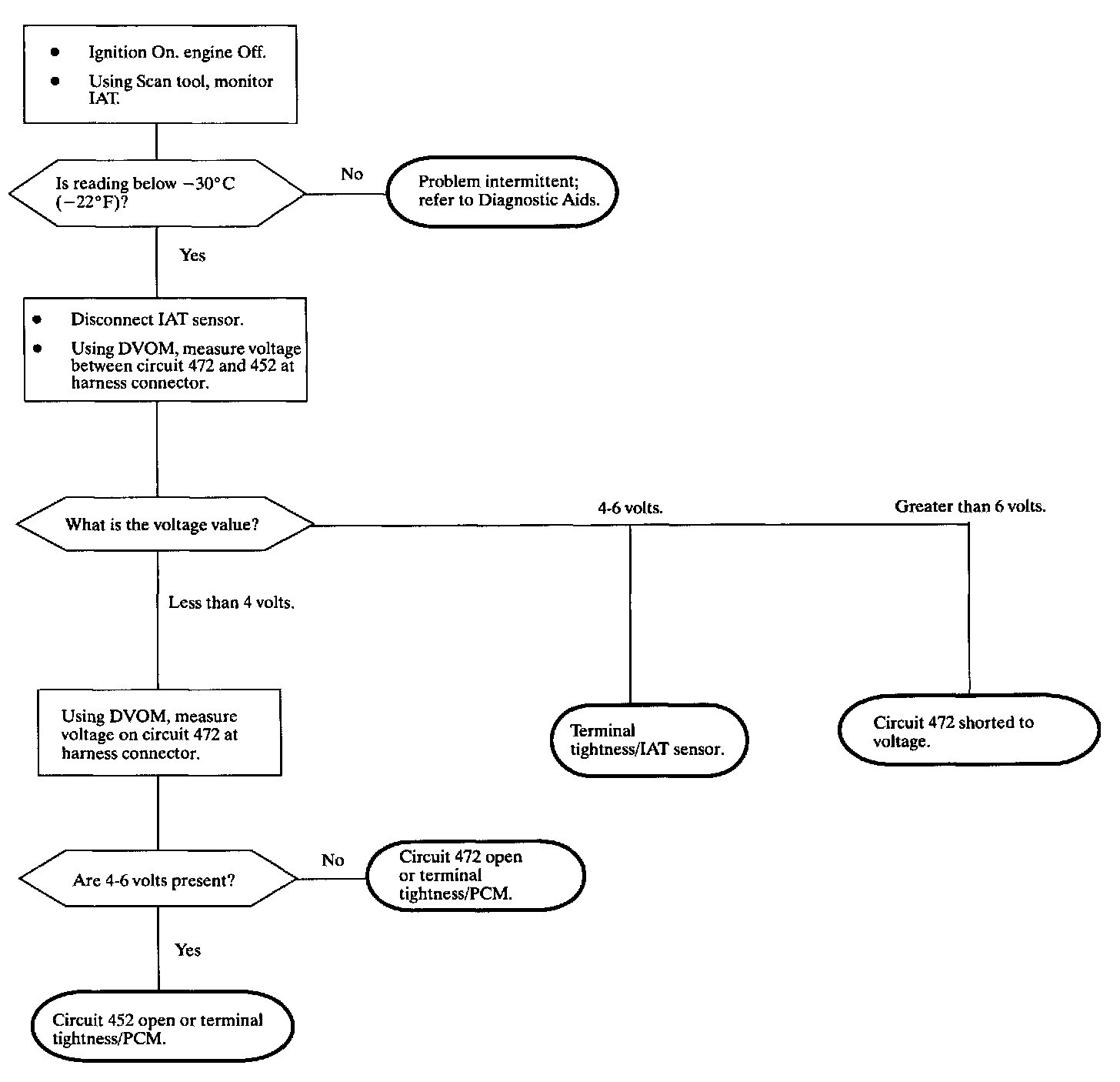

Diagnostic Chart:

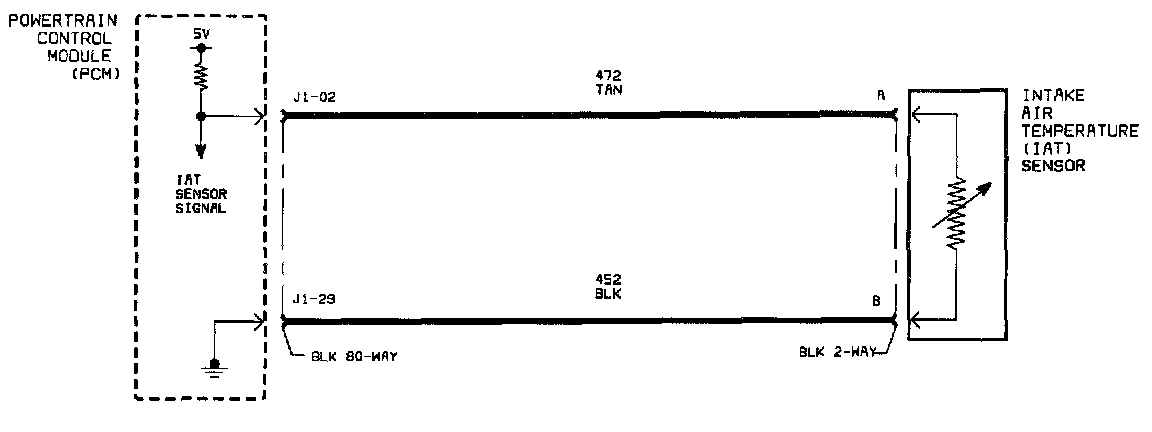

Schematic:

The Intake Air Temperature (IAT) sensor is a thermistor that varies resistance according to changes in air induction temperature. The PCM supplies a five volt reference through a pull-up resistor to the sensor, which is connected to ground. When the sensor is cold it has high resistance (high signal voltage at PCM). As the sensor temperature increases, its resistance decreases (low signal voltage at PCM). The PCM uses the signal voltage to determine air induction temperature. DTC P0113 sets when the IAT sensor signal voltage at the PCM is above the calibrated voltage value (below the calibrated temperature value).

DTC PARAMETERS
DTC P0113 will set if IAT temperature is less than -30°C (-22°F) for 6 seconds when:
^ ECT is greater than 60°C (140°F)
^ Vehicle speed is less than 24 km/h (15 mph)
^ Calculated air flow is less than 16 gm/s

DTC P0113 diagnostic runs continuously once the above conditions have been met.

DTC P0113 is a type A DTC.

DIAGNOSTIC AIDS
To locate an intermittent problem, use Scan tool to monitor IAT temperature with ignition On, engine Off. Wiggling wires while watching for a change in IAT temperature may locate the area where an open or short to voltage in the wiring could lie.

This DTC may set if vehicle has been in extremely cold ambient temperatures.

Refer to ECT Sensor General Description for a Temperature vs. Resistance chart.

NOTE: A short to B+ on signal circuit 472 may damage the IAT sensor. Check for correct resistance vs. temperature of the sensor after repair has been made.
