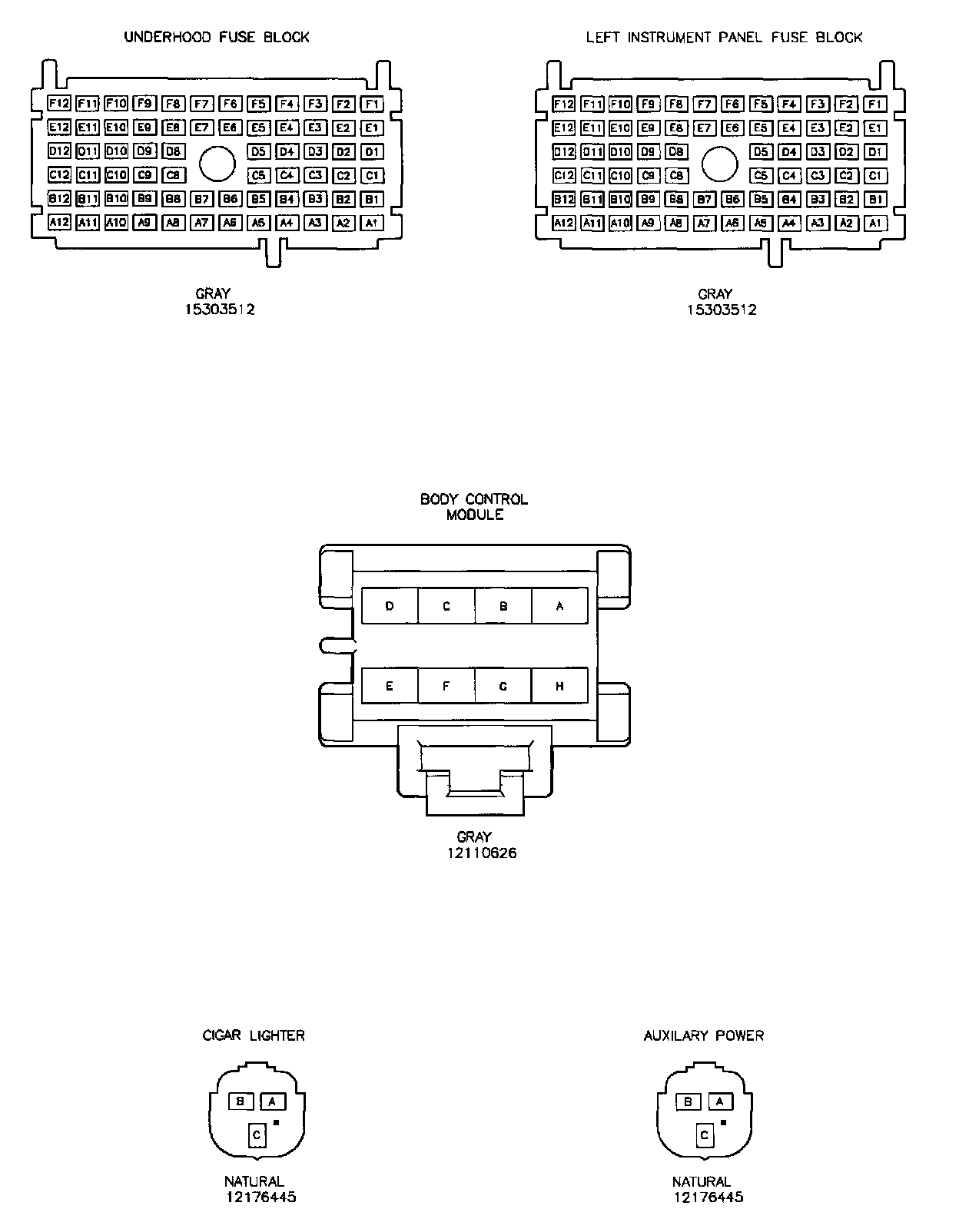

Cigar Lighter/Auxiliary Power Connector Face Views

Cigar Lighter/auxiliary Power Connector Face Views:
