Windshield Washer Spray Nozzle: Service and Repair

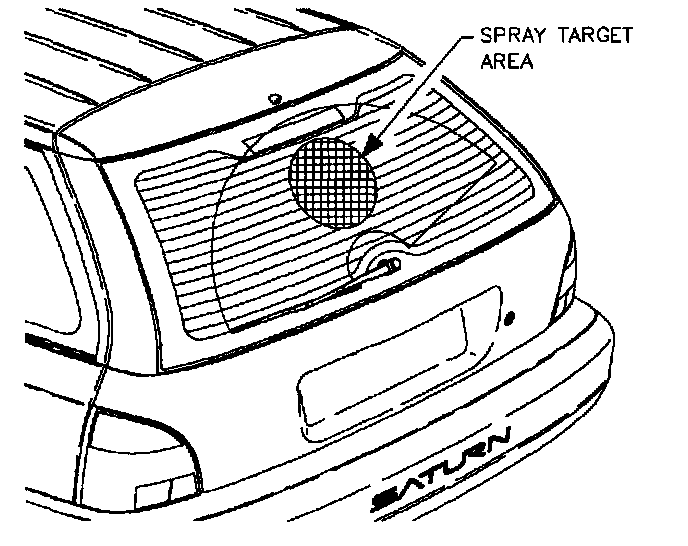

Washer nozzle adjustment can be made by placing a pin, tack or equivalent pointed tool into the hole in center of the washer nozzle and pushing or pulling in the desired direction. Retest spray pattern after adjustment is performed.
