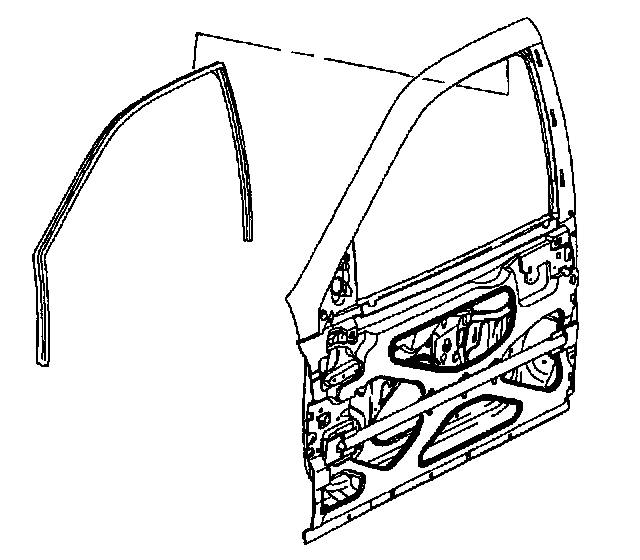

Front Door Rear Window Run Channel Weatherstrip

REMOVAL




1. Remove trim panel.

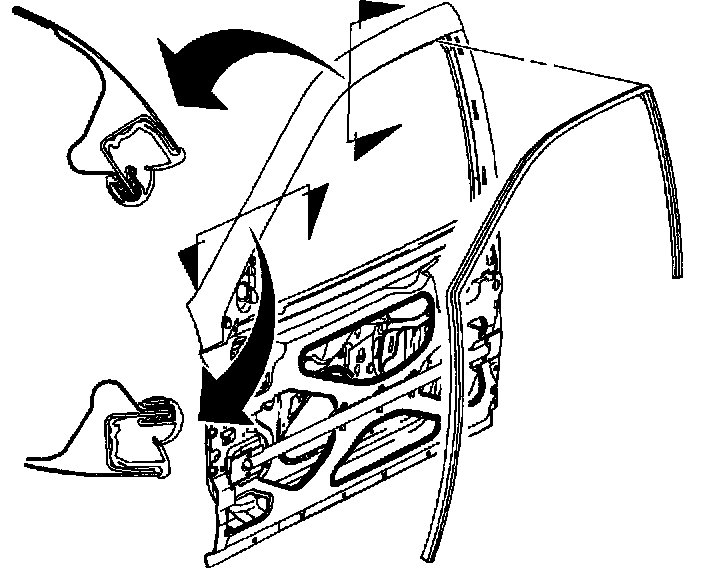

2. Remove inside window run channel weatherstrip from rear of door to front.




3. Remove outside run channel weatherstrip from rear of door to front.
4. Remove weatherstrip from window run channel.

INSTALLATION




1. Install weatherstrip to window run channel in front of door.
2. Install outside weather stripping from front of door to rear.




3. Install inside run channel weatherstrip from front of door to rear.
4. Install trim panel.
