Power Window Diagnostic Charts
>>
Chart 5-Left Rear Or Right Rear WDO Inoperable From Its Rear DR WDO SW Only
Chart 5-Left Rear Or Right Rear WDO Inoperable From Its Rear DR WDO SW Only

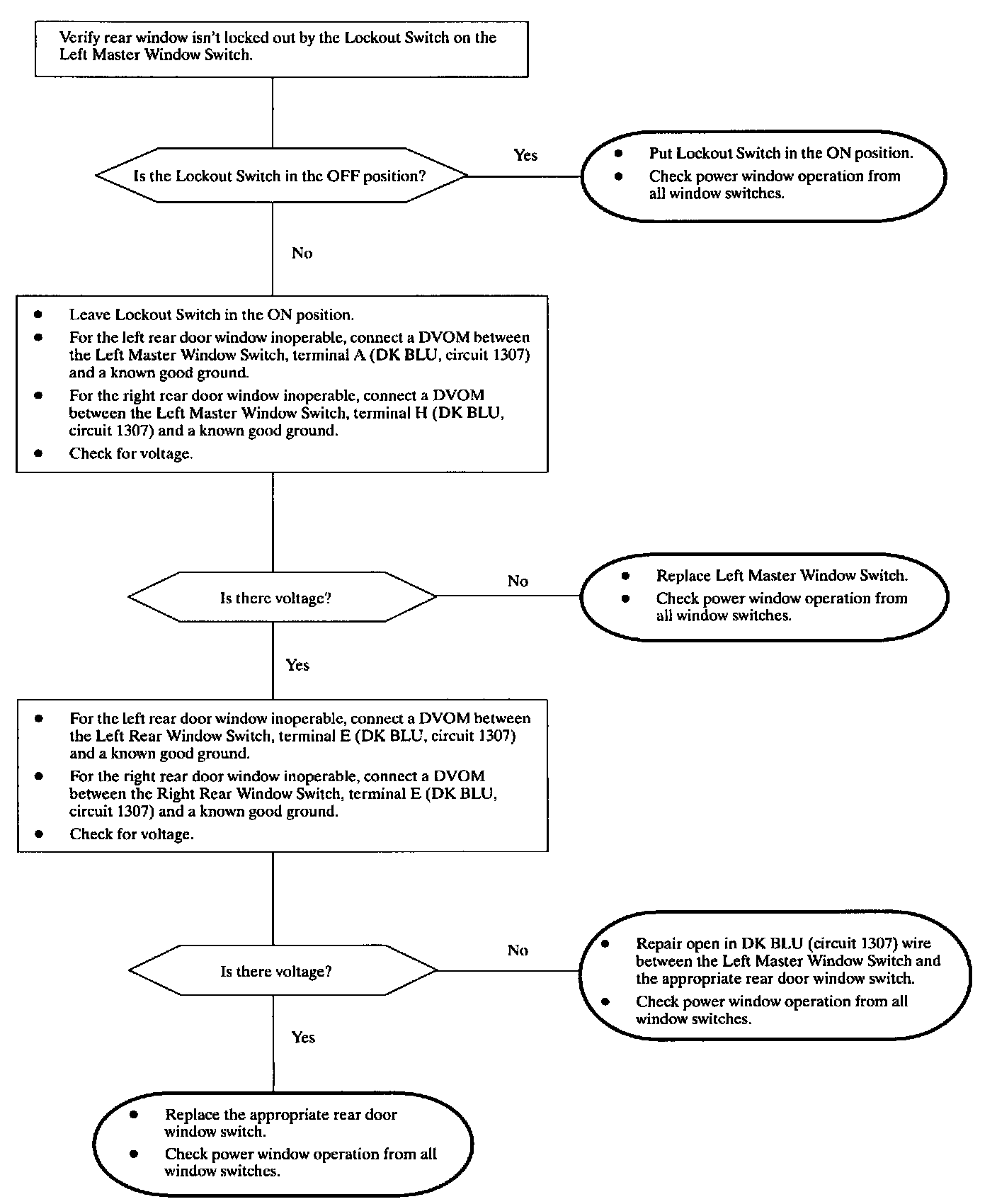

Diagnostic Chart 5:
