Saturn
>>
2000
>>
LS2 V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Testing and Inspection
>>
Power Window Diagnostic Charts
>>
Chart 4
Chart 4

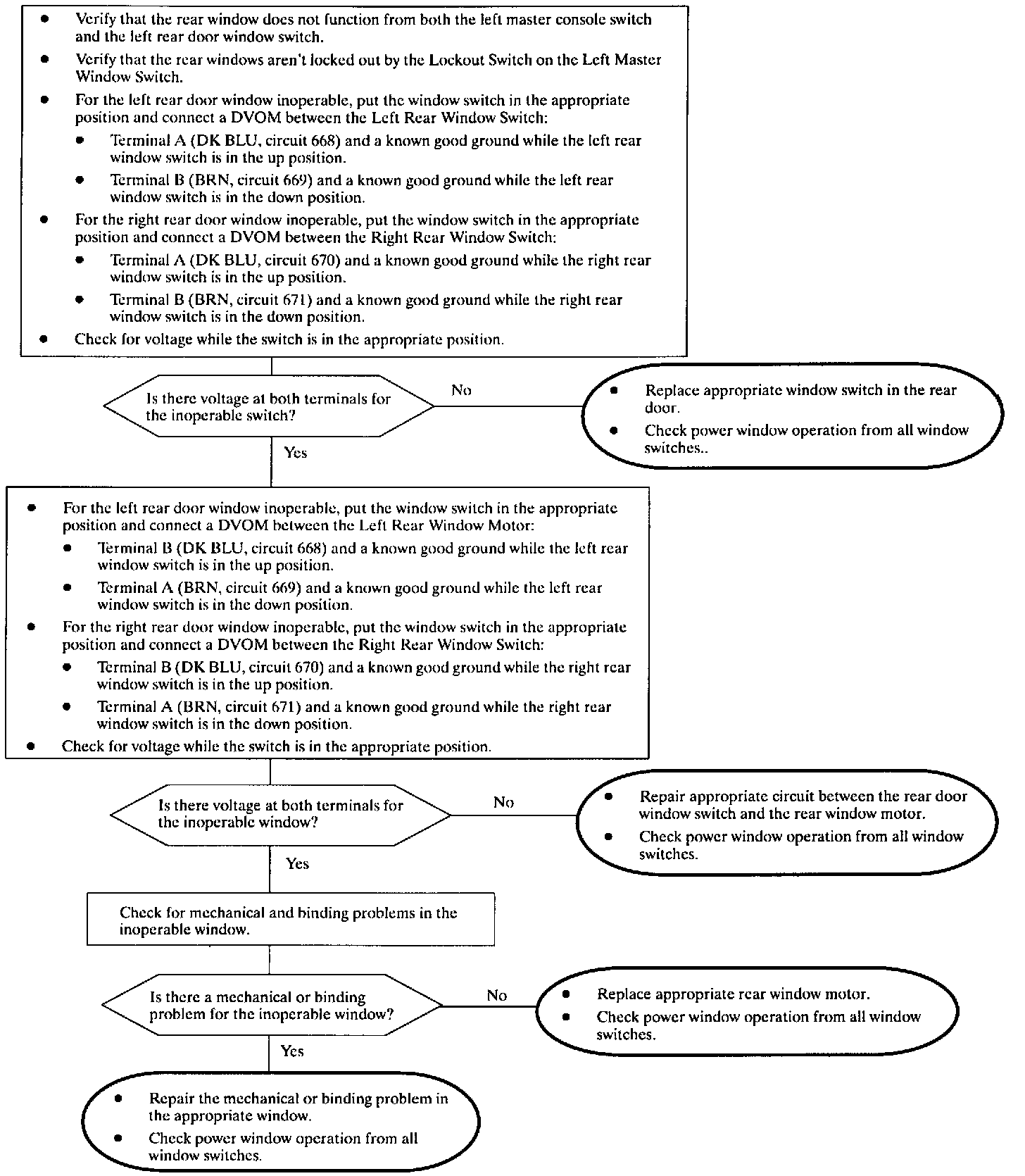

Diagnostic Chart 4:
Left Rear Or Right Rear Window Inoperable From Both The Master Window Switch In The Console And From The Rear Door Window Switch
