Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Power Window Diagnostic Charts >> Chart 2 - Both Left WDO Inoperable Or Both Right WDO Inoperable

Chart 2 - Both Left WDO Inoperable Or Both Right WDO Inoperable

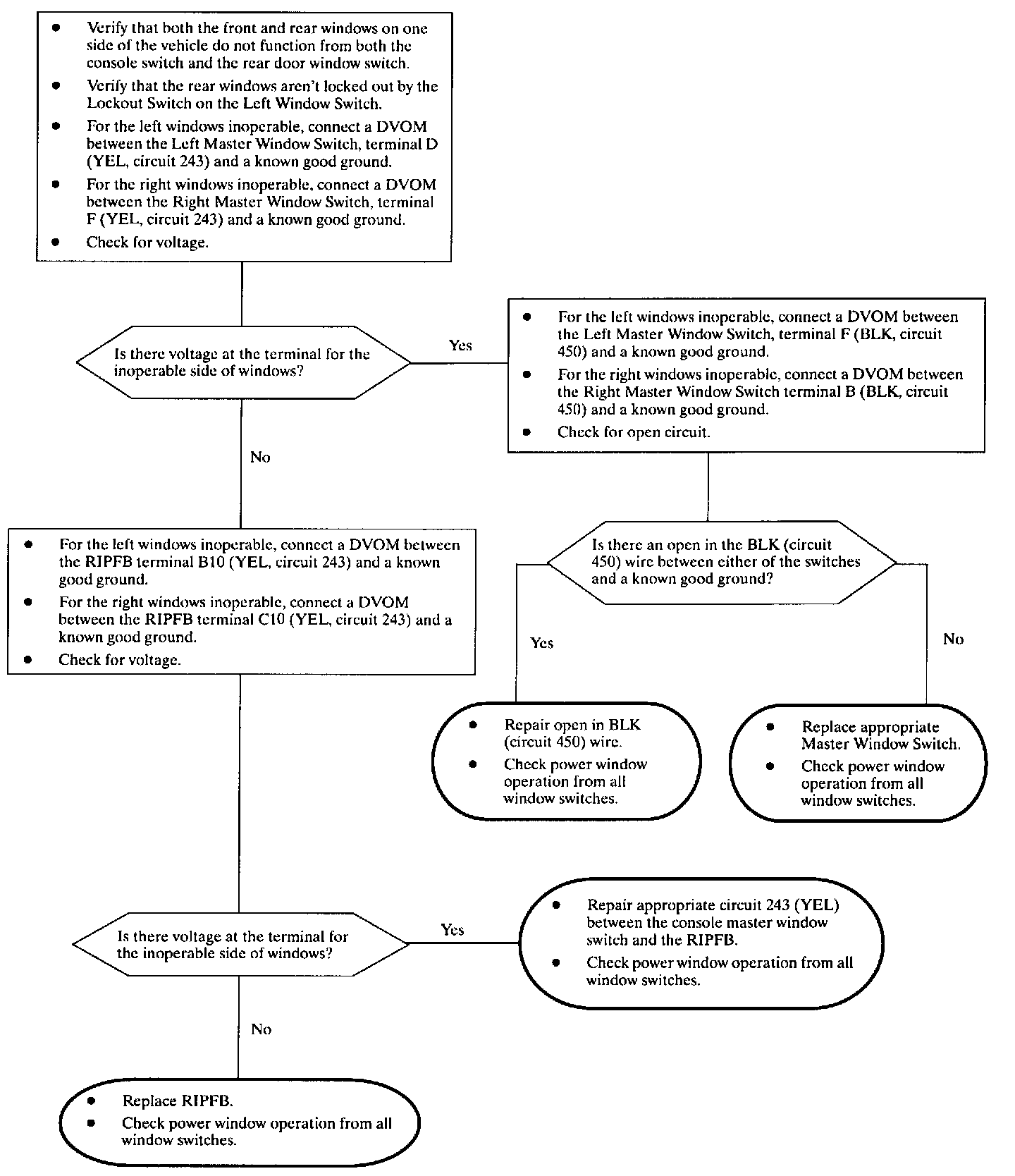

Diagnostic Chart 2:
