Stub Axle Shaft Sleeve

Tools Required
- SA9211T2 5th Gear Remover
- J41228 Stub Shaft Sleeve Installer

REMOVAL

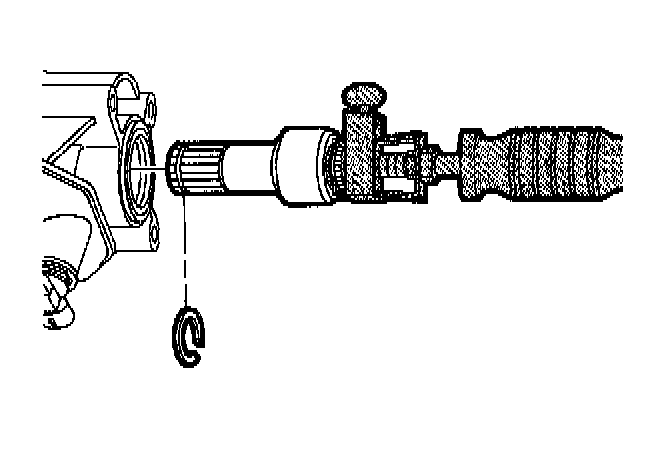

1. Remove stub axle shaft.
2. Remove snap rings from stub axle shaft.

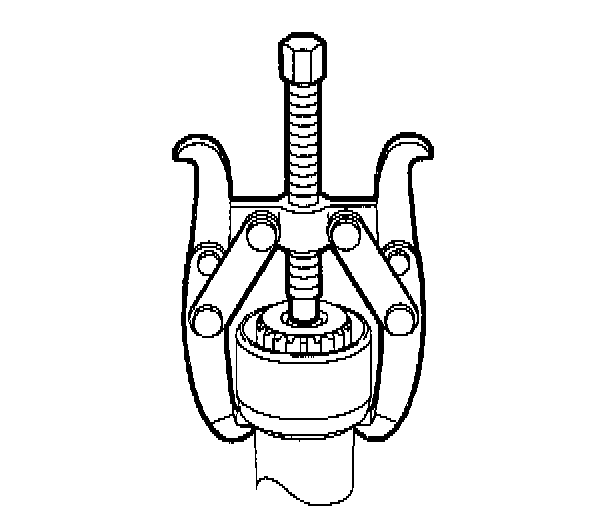

3. Remove sleeve from stub axle shaft using SA9211T2.

INSTALLATION

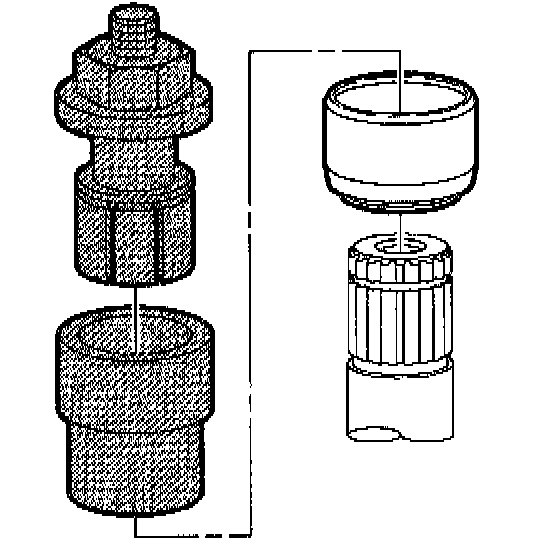

1. Use J41228 to install a new sleeve on stub axle shaft. Ensure collet is located in snap ring groove when installing.
2. Install stub axle shaft.
3. Check fluid level.
4. Inspect shaft and seal for fluid leaks.
