Control Lever Knob

REMOVAL

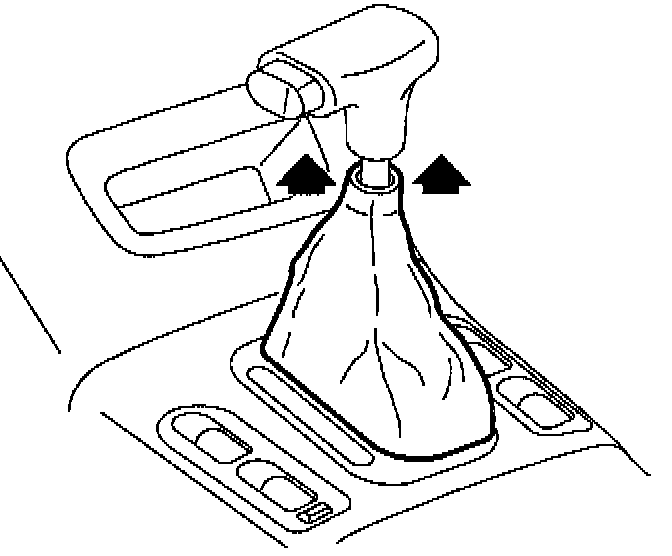

1. Pull control assembly boot down to disengage boot from knob.

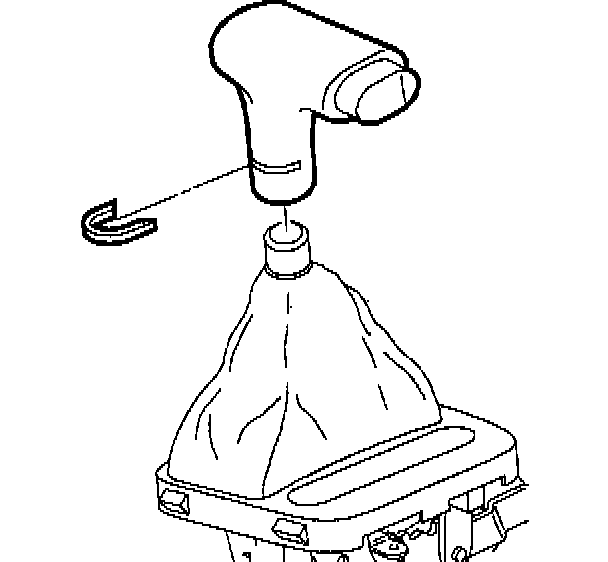

2. Using a screwdriver, remove control lever knob retainer. Remove control lever knob.

INSTALLATION

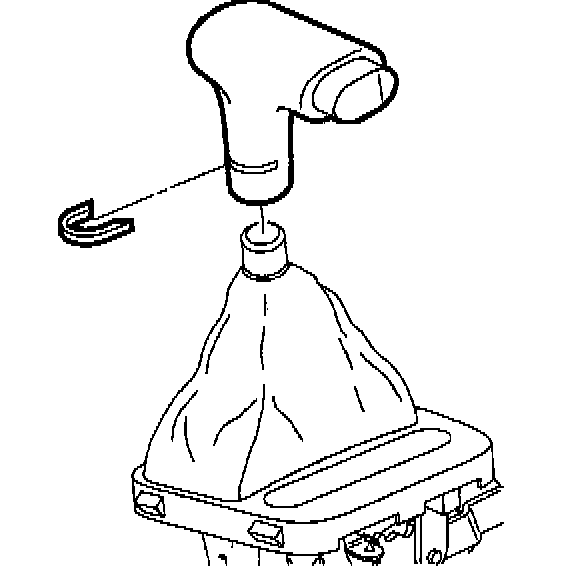

1. Install control lever knob and knob retainer.





2. Install control assembly boot onto knob so the O-ring in top of boot is seated in groove on bottom of knob.
