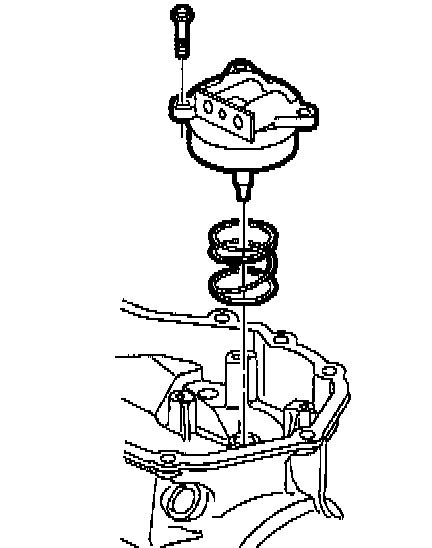

9. Low and Reverse Servo Removal





NOTICE: Remove servo cover bolts evenly to prevent damage to servo cover.

1. Remove servo cover bolts.
2. Remove servo cover assembly (Lo and Reverse).
3. Remove servo return spring.
