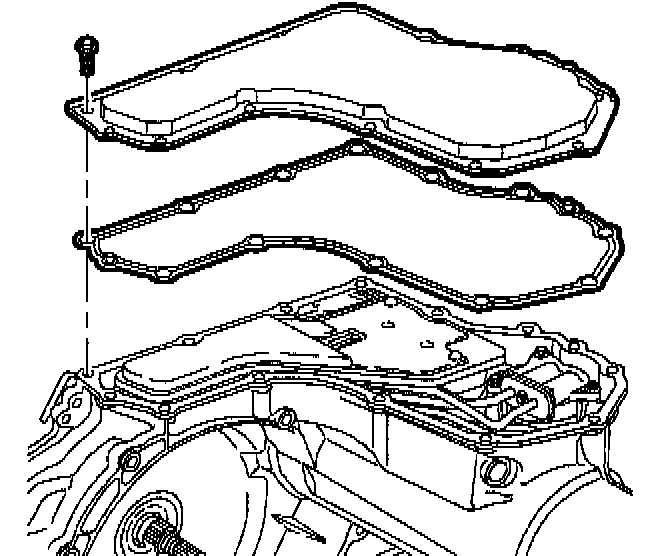

5. Oil Pan and Gasket Removal
5. Oil Pan and Gasket Removal
1.
Remove oil pan bolts.
2.
Remove oil pan. The magnet can remain in oil pan.
3.
Remove oil pan gasket. The oil pan gasket is reusable.
