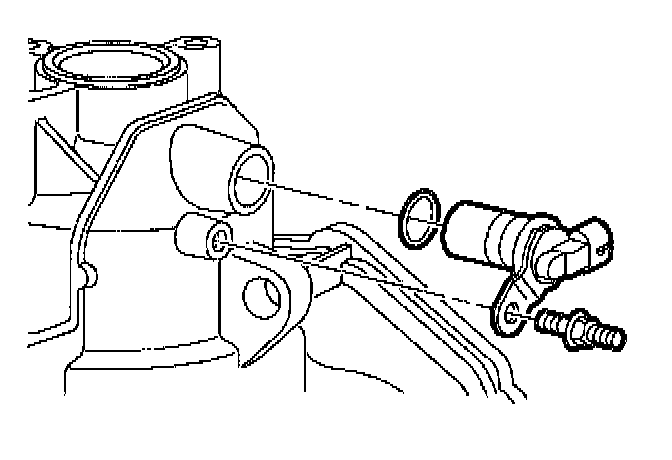

4. Output Speed Sensor Removal

1. Remove speed sensor stud.

NOTICE: Pull speed sensor assembly straight out from transaxle case in order to prevent damage to the case bore.

2. Remove speed sensor assembly.
3. Remove O-ring.
4. Rotate transaxle so case side cover is facing upward in order to drain the transaxle fluid through the stub shaft end of transaxle.
5. Rotate transaxle with oil pan facing upward.
